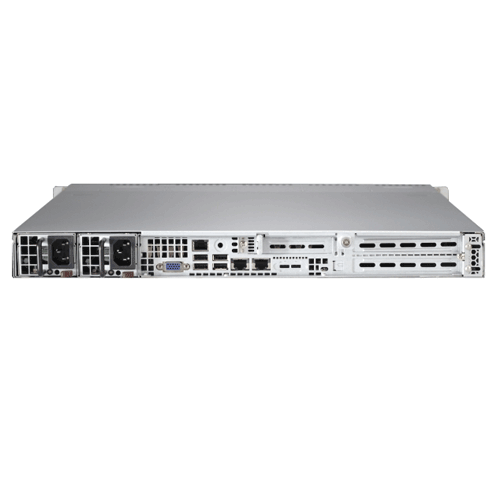

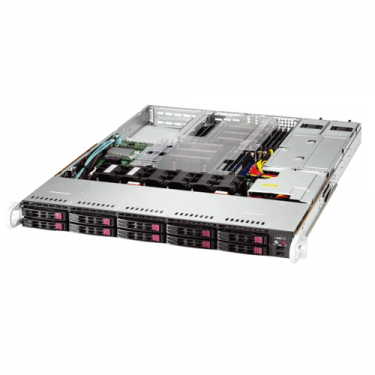

SuperServer 1027-WC1R
Supermicro SYS-1027-WC1R 1U Rackmount Server Barebone with 700W Redundant Power Supplies Gold Level Certified, 10x Hot-swap 2.5" SAS/SATA HDD bays (support SAS3
12Gbps HDDs) using Supermicro Super X9DRW-CF31 Server Motherboard and CSE-116AC-R700WB 1U Rackmount Server Chassis.
12Gbps HDDs) using Supermicro Super X9DRW-CF31 Server Motherboard and CSE-116AC-R700WB 1U Rackmount Server Chassis.
Product SKU |
|
|---|---|
| SYS-1027R-WC1R | • SuperServer 1027R-WC1R (Black) |
Motherboard |
|
|---|---|
| Super X9DRW-CF31 | |
Processor/Cache |
|
|---|---|
| CPU | • Dual Socket R (LGA 2011) • Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 130W TDP) |
| Cache | • Up to 30MB |
| System Bus | • QPI up to 8 GT/s |
| Note | • † BIOS version 3.0 or above is required |
| • Please contact WillJaya Technical support for additional information | |
System Memory |
|
|---|---|
| Memory Capacity |
• 16x 240-pin DDR3 DIMM slots • Up to 1TB DDR3 ECC LRDIMM • Up to 512GB DDR3 ECC Registered memory (RDIMM) • Up to 128GB DDR3 ECC and non-ECC UDIMM |
| Memory Type |
• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | • 1.5 V, 1.35 V |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C602J Chipset |
| SATA | • SATA3 (6Gbps) with RAID 0, 1 |
| SAS |
• SAS3 (12Gbps) via LSI 3108 • RAID 0, 1, 5, 6, 10, 50, 60 support • 2GB DDR3 Cache |
| IPMI |
• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Nuvoton WPCM450 BMC |
| Network Connectivity | • Intel® i350 Dual Port Gigabit Ethernet Controller • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8211E PHY (dedicated IPMI) |
| Graphics | • G200 (Nuvoton WPCM450 BMC) |
Input/Output |
|
|---|---|
| Serial SATA |
• 2x SATA3 (6Gbps) ports |
| SAS | • 8x SAS3 (12Gbps) ports |
| LAN |
• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port |
| USB | • 6x USB 2.0 ports total (4 rear, 2 front) |
| VGA | • 1x VGA port |
| Serial Port/Header | • 1x Fast UART 16550 header |
Management |
|
|---|---|
| Software |
• SuperDoctor® III • Watch Dog • NMI • SUM and SSM • IPMI 2.0 • Intel Node Manager |
| Power Configuration |
• ACPI Power Management • Power-on mode for AC power recovery |
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • CSE-116AC-R700WB |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 23.5" (597mm) |
| Gross Weight | • 46 lbs (20.9kg) |
| Available Color | • Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset Button |
| LED |
• Power status LED • HDD activity LED • 2x Network activity LEDs • Universal Information (UID) LED |
Expansion Slots |
|
|---|---|
| PCI-Express |
• 2 PCI-E 3.0 x16 full-height, Half-length slots • AOC Compatibility Matrix (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.) |
Drive Bays |
|
|---|---|
| Hot Swap | • 10 Hot-swap 2.5" SAS / SATA HDD trays (connected to onboard storage controller) |
Backplane |
|
|---|---|
| • SAS/SATA HDD Backplane | |
System Cooling |
|
|---|---|
| Fans | • 6x 40x56mm Counter-rotating PWM Fans |
Power Suplly |
|
|---|---|
| 700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2C | |
| AC Voltage | • 700W: 100 - 140 V, 50-60 Hz, 8.5-6 Amp • 750W: 180 - 240V, 60-50 Hz, 5-3.8 Amp |
| DC Output +5V standby | • 3 Amp |
| DC Output +12V | • 700W: 58 Amp @ 100-140V • 750W: 62 Amp @ 180-240V |
| With Power Distributor | • +5V: 25 Amp • +3.3V: 12 Amp • -12V: 0.6 Amp |
| Certification | • Gold Certified |
System Bios |
|
|---|---|
| Bios Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features |
• Plug and Play (PnP) • APM 1.2 • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • BIOS resuce hot keys • USB Keyboard support • SMBIOS 2.7.1 • UEFI 2.3.1 |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
