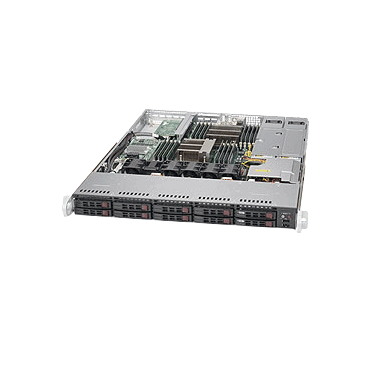

  • Supermicro SYS-1027R-WC1NRT 1U SuperServer Rackmount

Supermicro 1U Rackmount SuperServer SYS-1027R-WC1NRT

Call for price.
SKU:SYS-1027R-WC1NRT

Quick Overview:

Key Features:
• Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and
   E5-2600 v2 family†
• Up to 1TB ECC DDR3, up to 1866MHz; 16x DIMM slots
• 1x PCI-E 3.0 x16 (Full-height, Half-length)
• 10x Hot-swap 2.5" drive bays (8x SAS3 and 2x NVMe PCIe SSD/SATA3)
• Intel® X540 Dual port 10GBase-T
• 700W Redundant Power Supplies Gold Level Certified

Details

Supermicro SYS-1027R-WC1NRT 1U SuperServer

Supermicro SYS-1027R-WC1NRT 1U SuperServer with 10 Hot-swap 2.5" drive bays (8 SAS3 and 2 NVMe PCIe SSD/SATA3), 700W Redundant Power Supplies Gold Level Certified .

Product SKU
• SuperServer 1027R-WC1NRT (Black)
Motherboard
        Super X9DRW-CTF31
Processor / Cache
CPU • Dual Socket R (LGA 2011)
• Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 130W TDP)
Note † BIOS version 3.0 or above is required
Cache • Up to 30MB
System Bus • QPI up to 8 GT/s
System Memory
Memory Capacity • 16x 240-pin DDR3 DIMM slots
• Up to 1TB DDR3 ECC LRDIMM
• Up to 512GB DDR3 ECC Registered memory (RDIMM)
• Up to 128GB DDR3 ECC and non-ECC UDIMM
Memory Type • 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Size • 64GB (LRDIMM), 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage • 1.5 V, 1.35 V
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On Board Devices
Chipset • Intel® C602J Chipset
SATA • SATA3 (6Gbps) with RAID 0, 1
SAS • SAS3 (12Gbps) via LSI 3108
• RAID 0, 1, 5, 6, 10, 50, 60 support
• 2GB DDR3 Cache
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Nuvoton WPCM450 BMC
Network Controllers • Intel® x540 Dual Port 10GBase-T
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8211E PHY (dedicated IPMI)
Graphics • G200 (Nuvoton WPCM450 BMC)
Input / Output
Serial ATA / NVMe PCIe SSD • 2x SATA3 (6Gbps) / NVMe PCIe SSD ports
SAS

• 8x SAS3 (12Gbps) ports

LAN

• 2x RJ45 10GBase-T ports
• 1x RJ45 Dedicated IPMI LAN port

USB • 6x USB 2.0 ports total (4 rear, 2 front)
VGA • 1x VGA port
Serial Port / Header  • 1x Fast UART 16550 header
Management
Software • SuperDoctor® III
• Watch Dog
• NMI
• SUM and SSM
• IPMI 2.0
• Intel Node Manager
Power Configurations

• ACPI / APM Power Management
• Power-on mode for AC power recovery

Chassis
Form Factor • 1U Rackmount
Model • CSE-116AC2-R700WB
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 23.5" (597mm)
Gross Weight • 46 lbs (20.9kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• UID button
LEDs • Power status LED
• HDD activity LED
• 2x Network activity LEDs
• Universal Information (UID) LED
Expansion Slot
PCI-Express • 1 PCI-E 3.0 x16 Full-height, Half-length slot (CPU2 Required)
Drive Bays
Hot-swap • 10 Hot-swap 2.5" drive bays (8 SAS3 and 2 NVMe PCIe SSD/SATA3)
Backplane
  • SAS/SATA/NVMe PCIe SSD
System Cooling
Fans • 5x 40x56mm Counter-rotating PWM Fans
Power Supply
  • 700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2C
AC Voltage • 700W: 100 - 140 V, 50-60 Hz, 8.5-6 Amp
• 750W: 180 - 240V, 60-50 Hz, 5-3.8 Amp
DC Output +5V
standby
• 3 Amp
DC Output +12V • 700W: 58 Amp @ 100-140V
• 750W: 62 Amp @ 180-240V
With Power Distributor  • +5V: 25 Amp
• +3.3V: 12 Amp
• -12V: 0.6 Amp
Certification • Gold Certified
System Bios
Bios Type • 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features • Plug and Play (PnP)
• APM 1.2
• PCI 2.3
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• BIOS resuce hot keys
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI 2.3.1
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec.

• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
