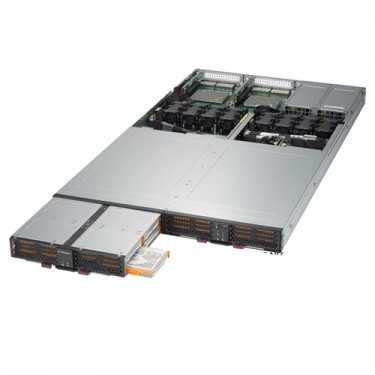

Supermicro SuperStorage SSG-136R-N32JBF | Hot-swap NVMe SSDs
|
Product SKU
| |
|---|---|
| SSG-136R-N32JBF | • SSG-136R-N32JBF (Black) |
|
System Overview
| |
|---|---|
| Form Factor and Storage | • 1U Form factor • 32x 2.5" drive slots |
| Switch Architecture | • JBOF Switch |
| Networking Port | • 2 RJ45 Dedicated IPMI LAN ports |
| Management Interface | • Support for IPMI v.2.0 |
| Front Panel
|
|
|---|---|
| Buttons | • Power On/Off button • Reset button • UID button |
| LEDs | • Power LED • System Status LED • SSD Status LED • Drive activity LEDs • Network activity LEDs |
|
Operating Ecvironment/Compliance
| |
|---|---|
| Environmental Spec. | • Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| RoHS | • RoHS Compliant |
| EMC | • FCC, CE, VCCI, C-tick |
| Safety |
• UL Listed, CB/IEC |
|
Chassis
| |
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • CSE-136TS-R1K04JP-U2 |
|
Dimension and Weight
| |
|---|---|
| Width | • 17.26" (438.4mm) |
| Height | • 1.71" (43.6mm) |
| Depth | • 31.95" (811.7mm) |
| Gross Weight | • 65 lbs (29.5kg) |
| Available Colors | • Black |
|
Expansion Slots / Ports
| |
|---|---|
| PCI-Express | • 2 PCI-E 3.0 x16 slots |
|
Drive Bays
| |
|---|---|
| Hot-swap |
• 32 Hot-swap 2.5" NVMe SSDs (2 sleds with 16 drives per sled) |
|
System Cooling
| |
|---|---|
| Fans | • 8x 40mm Hot-swap cooling fans |
|
Power Supply
| |
|---|---|
| • 1000W Redundant Power Supplies with PMBus | |
| Total Output Power |
• 800W/1000W |
| Dimension (W x H x L) |
• 73.5 x 40 x 185 mm |
| Input | • 100-127Vac / 9.8 - 7A / 50-60Hz • 200-240Vac / 7 - 5A / 50-60Hz |
| +12V | • Max: 66.7A / Min: 0A (100-127Vac) • Max: 83A / Min: 0A (200-240Vac) |
| 12Vsb | • Max: 2.1A / Min: 0A |
| Output Type | • 25 Pairs Gold Finger Connector |
| Certification | • Titanium Level |
