Details

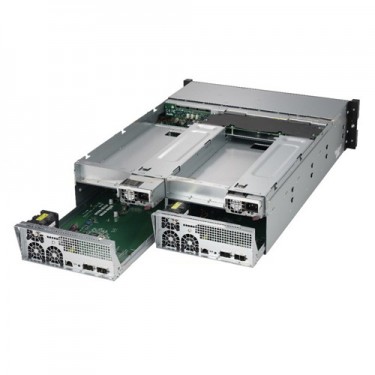

Supermicro SuperStorage Bridge Bay SSG-937R-E2CJB
|
Product SKU
| |
|---|---|
| SSG-937R-E2CJB | • SuperStorage 937R-E2CJB (Black) |
|
Add-on Module
| |
|---|---|
| • 2x AOM-SAS3-937EL-JB | |
| Drive Bays
|
|
|---|---|
| Hot-swap | • 16 Hot-swap 3.5" Drive Bays • SAS or enterprise SATA HDD only recommended |
|
Expander
| |
|---|---|
| • AOM-SAS3-937EL-JB, features: | |
• 12Gb SAS3 HDD support |
|
|
On-Board Devices
| SAS | • SAS3 (12Gbps) via AOM-SAS3-937EL-JB |
|---|---|
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC |
|
Front Panel
| Buttons | • Power On/Off button • System Reset button • Alarm Mute Switch |
LEDs |
• Power LED • Hard Drive Activity LED • 2 SAS link Activity LED • System Overheat LED • Power Fail LED |
|---|
|
Chassis
| |
|---|---|
| Form Factor | • 3U Rackmount |
| Model | • CSE-937ETS-R1200NDBP-X10 |
|
Dimension and Weight
| |
|---|---|
| Width | • 17.2" (437mm) |
| Height | • 5.12" (130mm) |
| Depth | • 26.5" (673mm) |
| Gross Weight | • N.A. |
| Available Colors | • Black |
|
System Cooling
| |
|---|---|
| Fans | • 12x 40mm cooling fans |
|
Power Supply
| |
|---|---|
| • 1200W Redundant Power Supplies with PMBus | |
| Total Output Power | • 1000W/1200W |
| Dimension (W x H x L) |
• 76 x 40 x 336 mm |
| Input | • 100-127Vac / 15-12A / 50-60Hz • 200-240Vac / 8.5-7A / 50-60Hz • 200-240Vdc / 8.5-7A (for CCC only) |
| +12V | • Max: 83A / Min: 0A (100-127Vac) • Max: 100A / Min: 0A (200-240Vac) • Max: 100A / Min: 0A (200-240Vdc) |
| +5Vsb | • Max: 4A / Min: 0A |
| Output Type | • 19 Pairs Gold Finger Connector |
| Certification | • Titanium Level |
|
Operating Environment/Compliance
| |
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
10°C to 35°C (50°F to 95°F) |
