Details
|
Product SKU
| |
|---|---|

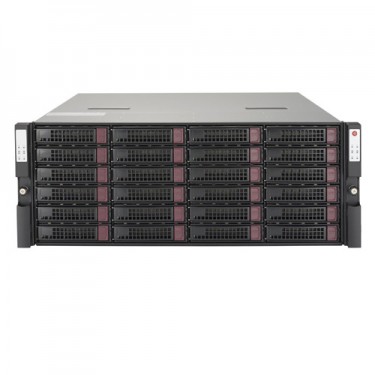

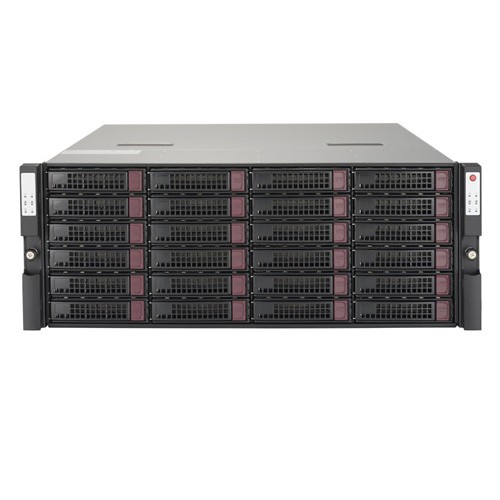

| SSG-6048R-DE2CR24L | • SuperServer 6048R-DE2CR24L (Black) |
|
Motherboard (Two per System)
| |
|---|---|
| • Super X10DRS-4U | |
| Processor/Cache
|
|
|---|---|
| CPU | • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * • Dual Socket R3 (LGA 2011) |
| Cores / Cache | • Up to 22 Cores† / Up to 55MB† Cache |
| System Bus | • QPI up to 9.6 GT/s |
| † BIOS version 2.0 or above is required | |
| Note | * Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization |
|
System Memory (per Node)
| |
|---|---|
| Memory Capacity | • 8x 288-pin DDR4 DIMM slots • Up to 1TB† ECC 3DS LRDIMM, 256GB ECC RDIMM |
| Memory Type | • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | • RDIMM: 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | • 1.2 V |
| Error Detection | • Corrects single-bit errors |
| NVDIMM | • NVDIMM support. (Not all vendor's NVDIMM are supported. Please contact your sales representative for details) |
|
On-Board Devices (per Node)
| Chipset | • Intel® C612 chipset |
|---|---|
| SAS | • SAS3 (12Gbps) via Broadcom 3008 |
| SATA | • SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC |
| Network Controllers | • Dual 10GBase-T LAN with Intel® X540 Ethernet Controller • Virtual Machine Device Queues reduce I/O overhead • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • Realtek RTL8201N PHY (dedicated IPMI) |
| Graphics | • ASPEED AST2400 BMC |
| Others | • PCI-E 3.0 x8 node to node/NTB connectivity • PLX Technology PEX8717; PLX ExpressNIC SDK available from PLX. NDA required |
|
Input/Output (per Node)
| SAS | • 2 JBOD expansion ports per node (mini-SAS HD) | LAN | • 2 RJ45 10GBase-T LAN ports • IPMI LAN shared port |
USB | • 3 USB 3.0 ports (2 rear + 1 Type A) |
|---|---|
| VGA | • 1 VGA port |
| Serial Port / Header | • 1 COM port (rear) |
|
Chassis
| |
|---|---|
| Form Factor | • 4U Rackmount |
| Model | • CSE-947ETS-R0NDBP |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button |
| LEDs | • Power LED • Heartbeat LED • 2 Network activity LEDs • Power Fail LED • Overheat/Fan Fail LED |
|
Expansion Slots (per Node)
| |
|---|---|
| PCI-Express | • 3 PCI-E 3.0 x8 (1 FHHL, 2 LPHL) slots per controller |
|
Drive Bays
| |
|---|---|
| Hot-swap |
• 24x 3.5" Hot-swap SAS drive bays with SES2 |
|
Backplane
| |
|---|---|
• SAS3 12Gbps passive backplane, redundant architecture with single expander on each motherboard. Motherboard also support 2x mini-SAS HD connectors for JBOD expansion |
|
|
System Cooling
| |
|---|---|
| Fans | • 4x 8cm and 4x 4cm PWM cooling fans |
|
Power Supply (76mm Width)
| |
|---|---|
| • 1600W 1U Redundant Power Supplies with PMBus | |
| Total Output Power | • 800W/1600W |
| Dimension (W x H x L) |
• 76 x 40.4 x 336 mm |
| Input | • 100-140Vac / 10-7A / 50-60Hz • 180-240Vac / 11-8A / 50-60Hz |
| +12V | • Max: 67A / Min: 0A (100-140Vac) • Max: 133A / Min: 0A (180-240Vac) |
| +5Vsb | • Max: 1A / Min: 0A |
| Output Type | • 27 Pairs Gold Finger Connector |
| Certification | • Titanium Level |
|
System BIOS
| |
|---|---|
| BIOS Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | • Plug and Play (PnP) |
|
Operating Environment
| |
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) |
