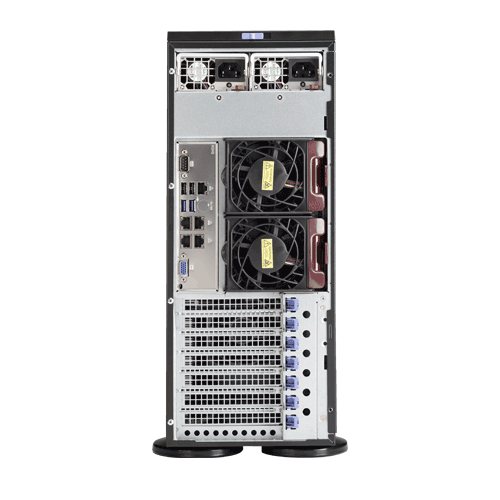

  • Supermicro SuperServer SYS-7048R-TRT - Rear

Supermicro SuperServer SYS-7048R-TRT

Call for price.
SKU:SYS-7048R-TRT

Quick Overview:

Key Features:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor
• Up to 2TB† ECC 3DS LRDIMM; 16x DIMM slots
• 3 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 slots
• Intel® X540 Dual port 10GBase-T
• 8x 3.5" Hot-swap SATA3 HDD Bays
• 920W Redundant Power Supplies Platinum Level (94%)


Details

Supermicro SuperServer SYS-7048R-TRT

Product SKU
SYS-7048R-TRT • SuperServer 7048R-TRT (Black)
Motherboard
  • Super X10DRi-T
Processor/Cache
CPU • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP)
• Dual Socket R3 (LGA 2011)
Cores/Cache • Up to 22 Cores† / Up to 55MB† Cache
System Bus • QPI up to 9.6 GT/s
  † BIOS version 2.0 or above is required
Note Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity • 16x 288-pin DDR4 DIMM slots
• Up to 2TB† ECC 3DS LRDIMM, 512 ECC RDIMM
Memory Type • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes • RDIMM: 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB
Memory Voltage • 1.2 V
Error Detection • Corrects single-bit errors
On-Board Devices
Chipset • Intel® C612 chipset
SATA • SATA 3.0 (6Gbps) with RAID 0, 1, 5, 10
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC
Network Controllers

• Intel® X540 Dual Port 10GBase-T
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)
Videos

• ASPEED AST2400 BMC
Input/Output
SATA • 8x SATA3 (6Gbps) ports
• 2x SATA3 powered ports that support SATA DOM
LAN • 2x RJ45 10GBase-T LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB • Rear USB: 2x USB 3.0 + 2x USB 2.0
• Front USB: 2x USB 2.0
• USB Header: 2x 3.0, 2x 2.0, 1x Type A
Videos • 1x VGA port
Serial Port/Header • 1x COM/Serial
System BIOS
BIOS Type • 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features • Plug and Play (PnP)
• APM 1.2
• PCI 2.3
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI 2.3.1
Management
Software • SuperDoctor® 5
• Watch Dog
• NMI, SPM, SUM
• IPMI 2.0
• Intel Node Manager
Power
Configuration


 • ACPI / APM Power Management
• Power-on mode for AC power recovery
Chassis
Form Factor • 4U Rackmountable / Tower
• Optional Rackmount Kit
Model • CSE-745TQ-R920B
Dimension and Weight
Height • 17.2" (437mm)
Width • 7" (178mm)
Depth • 25.5" (648mm)
Gross Weight • 73.5 lbs (33.6 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
• Power Fail LED
Ports • 2x USB Ports
Expansion Slots
PCI-Express

• 3x PCI-E 3.0 x16 (Full-height, Full-length)
• 3x PCI-E 3.0 x8 (Full-height, Full-length)
Drive Bays
Hot-swap

• 8x 3.5" Hot-swap SAS/SATA Drive Trays
Peripheral Bay(s)
[90o Rotatable] 		• 2x 5.25" Peripheral Drive Bays
• 1x 5.25" Bay that fits 3.5" bay devices
SAS/SATA Backplane


• SAS / SATA Hard Drive Backplane w/AMI MG9072
System Cooling
Fans

• 3x 8cm hot-swap redundant PWM cooling fans
• 2x 8cm hot-swap exhaust Fans and air shroud
Power Supply with Power Distributor
  920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C
AC Input • 100-240 V, 50-60 Hz, 11-4.5 Amp
DC Output
 • 4 Amp @ +5V standby
• 75 Amp @ +12V
Certification • Platinum Certified
PC Health Monitoring
CPU

• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
• 6-Phase-switching voltage regulator
FAN • Total of eight fan headers supporting up to 8 fans
• 8x fans with tachometer status monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Control for 8x fan connectors
• Thermal Monitor 2 (TM2) support
• PECI
LED • CPU / System Overheat LED
• Suspend static indicator LED
• UID/Remote LED
Other Features • Chassis intrusion detection
• Chassis intrusion header
Operating Environment
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
