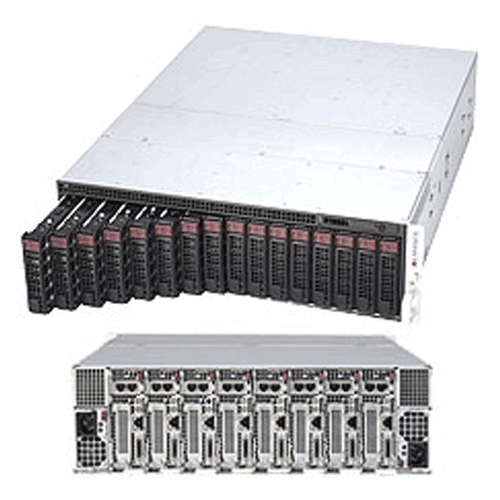

Supermicro SuperServer SYS-5037MC-H86RF
Product SKU |
|
|---|---|
| SuperServer | • SYS-5037MC-H86RF |
Motherboard |
|
|---|---|
| Super X9SCD+-HF | |
Processor/Cache |
|
|---|---|
| CPU | • Intel® Xeon® processor E3-1200 v2 series, Intel® 2nd/3rd Gen. Core i3 & Intel® Pentium® family processors • Socket H2 (LGA 1155) |
System Memory (per node) |
|
|---|---|
| Memory Capacity | • 4x 240-pin DDR3 DIMM slots • Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM) |
| Memory Type | • 1333/1600MHz*** ECC DDR3 SDRAM 72-bit, 240-pin gold-plated UDIMMs |
| DIMM Sizes | • 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | • 1.5 V |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
On-Board Devices (per node) |
|
|---|---|
| Chipset | • Intel® C204 PCH chipset* |
| SATA | • 1x SATA DOM |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM over LAN support • Nuvoton WPCM450 BMC |
| Headers | • 1 USB header & 1 Type A USB, TPM ready |
| Graphics | • Matrox G200eW 16MB DDR2 |
| Super I/O | • Nuvoton WPCM450RA0BX |
Network Devices (per node) |
|
|---|---|
| Micro-LP NIC | • Intel® 82580DB GbE controller • iSCSI boot and PXE support • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • Intel® I/OAT 3 support for fast, scaleable, and reliable networking • VMDq support for better performance of virtualization • MicroLP Adapter Matrix (Networking options) |
Expansion Slots (per node) |
|
|---|---|
| PCI-Express | • 1 (x8) PCI-E 3.0*** low-profile slot • MicroLP Adapter Matrix (Networking options) |
Input / Output (per node) |
|
|---|---|
| Serial ATA | • 2x SAS/SATA ports with selected AOC |
| LAN | • 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port |
| KVM | • 1x VGA, 1x COM, and 2x USB 2.0 ports |
System BIOS |
|
|---|---|
| BIOS Type | • 64Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | • Plug and Play (PnP) • APM 1.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • RTC (Real Time Clock) Wakeup |
Rear Window (per node) |
|
|---|---|
| Switch | • Power / UID |
Chassis |
|
|---|---|
| Form Factor | • 3U |
| Model | • CSE-938H-R1620B |
Dimension & Weight |
|
|---|---|
| Height | • 5.21" (132.5 mm) |
| Width | • 17.26" (438.4 mm) |
| Depth | • 23.2" (589 mm) |
| Gross Weight | • 88 lbs (39.92 kg) |
| Available Colors | • Black |
Front Panel |
|
|---|---|
| Buttons | • Power On/Off button |
| LEDs | • Power LED • Node status LED |
Drive Bays |
|
|---|---|
| Hot-Swap | • 2x 3.5" hot-swap SAS/SATA3 (6Gbps) HDDs per node; up to 16 HDDs total • With selected HDD AOC, supports 2x SAS or SATA3 (6Gbps) via backplane • SAS or enterprise SATA HDD only recommended |
System Cooling |
|
|---|---|
| Fans | • 4x 8cm Heavy duty fans with optimal cooling zone |
Power Supply |
|
|---|---|
| • 1620W high-efficiency redundant power supply | |
| AC Input | • 1000W: 100-120 V, 50-60 Hz, 12-10 Amp • 1200W: 120-140 V, 50-60 Hz, 12-10 Amp • 1620W: 180-240 V, 50-60 Hz, 10.5-8 Amp |
| DC Output +5V standby |
• 4 Amp |
| DC Output +12V | • 1000W: 84 Amp • 1200W: 100 Amp • 1620W: 135 Amp |
| Certification | • Platinum Certified |
PC Health Monitoring |
|
|---|---|
| CPU | • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages • 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V |
| FAN | • Cooling zone |
| Temperature | • Monitoring for CPU and chassis environment |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
