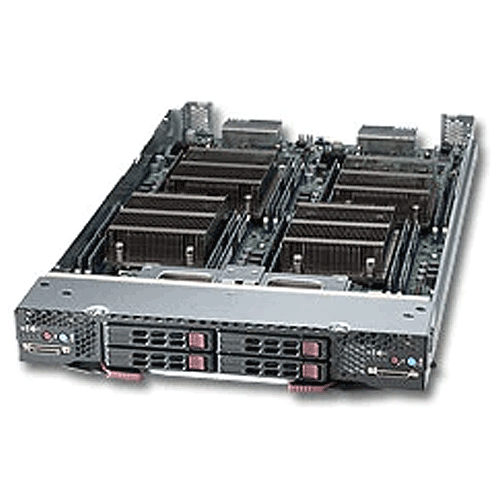

Supermicro Processor Blade SBI-7227R-T2

More Views

Supermicro Processor Blade SBI-7227R-T2

Description

Details

Supermicro Processor Blade SBI-7227R-T2

Product SKU
SBI-7227R-T2	• Processor Blade SBI-7227R-T2 (Black)

Motherboard
	• Super B9DRT

Processor/Cache
CPU	• Dual Socket R (LGA 2011) • Intel® Xeon® processor E5-2600 and E5-2600 v2 family†
Note	† BIOS version 3.0 or above is required
Cache	• Up to 30MB
System Bus	• QPI up to 8 GT/s

System Memory
Memory Capacity	• 8x 240-pin DDR3 DIMM slots • Supports up to 256GB DDR3 ECC Registered memory (RDIMM) • Supports up to 64GB DDR3 ECC Unbuffered memory (UDIMM)
Memory Type	• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage	• 1.5 V and 1.35 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices (per node)
Chipset	• Intel® C602 chipset
InfiniBand Support	• 4x QDR (40Gbps) InfiniBand or 10GbE mezzanine HCA (Optional)
SATA	• Intel C602 SATA 6.0Gbps Controller • RAID 0, 1 support (Windows) • RAID 0, 1 support (Linux)
IPMI	• Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
Network Controllers	• Intel® I350 Dual port Gigabit Ethernet • Intel® I/OAT 3 support for fast, scaleable, and reliable networking • VMDq support for better performance of virtualization

System BIOS
BIOS Type	• 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	• Plug and Play (PnP) • PCI 2.2 • ACPI up to 3.0 • USB Keyboard support

Dimension and Weight
Height	• 11.32" (288 mm)
Width	• 1.67" (42.4 mm)
Depth	• 20.5" (520.7mm)
Gross Weight	• 17 lbs (7.71 kg)
Available Colors	• Black

Drive Bays
Hot-swap	• 4x 2.5" SATA Hot-swap drive bays (2 per node)

Input / Output
KVM	• 1 Front Connector for Supermicro KVM Card

Operating Environment / Compliance
Environmental Spec.	• Operating Temperature: 10°to 35°C (50°to 95°F) • Non-operating Temperature: -40°to 70°C (-40°to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5 to 95% (non-condensing)

Electromagnetic Compatibility (EMC)
United States / Canada	• FCC- Emissions (US) Verification
Europe	• EN55022 - Emissions • EN55024 - Immunity • EN61000-3-2 - Harmonics • EN61000-3-3 - Voltage Flicker • CE - EMC Directive 89/336/EEC

Safety Compliance
United States / Canada	• UL60950-1 - CSA/CUL 60950-1
Europe	• EN60950-1, CE - Low Voltage Directive 73/23/EEE
Germany	• TUV
