Details
|
Product SKU
| |
|---|---|

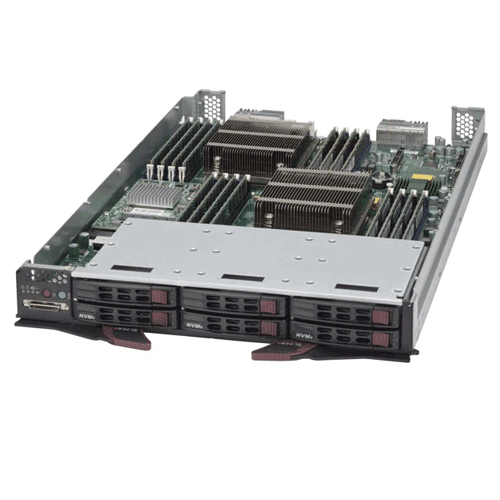

| SBI-7128R-C6 | • Processor Blade SBI-7128R-C6 (Black) |
|

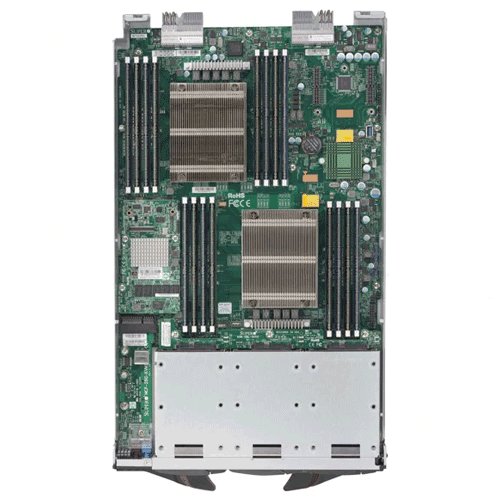

Motherboard
| |
|---|---|
| • Super B10DRC | |
| Processor/Cache
|
|
|---|---|
| CPU | • Intel® Xeon® processor E5-2600 v4†/ v3 family • Dual Socket R3 (LGA 2011) |
| Cores / Cache | • Up to 22 Cores† / Up to 55MB† Cache |
| System Bus | • QPI up to 9.6 GT/s |
| Note | † BIOS version 2.0 or above is required |
|
System Memory
| |
|---|---|
| Memory Capacity | • 16x 288-pin DDR4 DIMM slots • Up to 2TB ECC LRDIMM, 512GB ECC RDIMM |
| Memory Type | • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | • RDIMM: 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | • 1.2 V |
| Error Detection |
• Corrects single-bit errors |
|
On-Board Devices
| Chipset | • Intel® C612 Express chipset |
|---|---|
| InfiniBand Support | • 4x FDR-10/QDR (40Gbps) InfiniBand or 10GbE mezzanine HCA (Optional) |
| SAS | • Broadcom 3108 SAS3 (12Gbps) controller • HW RAID 0, 1, 5, 50, 6 support |
| IPMI | • Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) |
| Network Controllers | • Intel® I350 Dual port Gigabit Ethernet |
| Graphics |
• Aspeed AST2400 BMC |
|
System BIOS
| BIOS Type | • 128Mb SPI Flash EEPROM with AMI® BIOS | BIOS Features |
• Plug and Play (PnP) • PCI 2.2 • ACPI up to 3.0 • USB Keyboard support |
|---|
|
Dimension and Weight
| |
|---|---|
| Height | • 11.32" (288 mm) |
| Width | • 1.67" (42.4 mm) |
| Depth | • 20.5" |
| Gross Weight | • 8.6 lbs (3.9 kg) |
| Available Colors | • Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button |
| LEDs | • Power LED |
| Connector |
• SUV (Serial/USB/Video) & KVM Connector |
|
Drive Bays
| |
|---|---|
| Hot-swap |
• 6x 2.5" Hot-swap SAS/SATA/SSD bays |
|
Input / Output
| |
|---|---|
| DOM | • 2x SuperDOM (Disk on Module) ports |
| TPM | • 1x TPM 1.2 20-pin Header |
| KVM |
• 1x Front Connector for SMCI KVM Card |
|
Operating Environment / Compliance
| |
|---|---|
| Environmental Spec. | • Operating Temperature: 10°to 35°C (50°to 95°F) |
|
Electromagnetic Compatibility (EMC)
| |
|---|---|
| United States / Canada |
• FCC- Emissions (US) Verification |
| Europe |
• EN55022 - Emissions • EN55024 - Immunity • EN61000-3-2 - Harmonics • EN61000-3-3 - Voltage Flicker • CE - EMC Directive 89/336/EEC |
|
Safety Compliance
| |
|---|---|
| United States / Canada |
• UL60950-1 - CSA/CUL 60950-1 |
| Europe | • EN60950-1, CE - Low Voltage Directive 73/23/EEE |
| Germany | • TUV |
|
Thermal Limitation
| |
|---|---|
| Note |

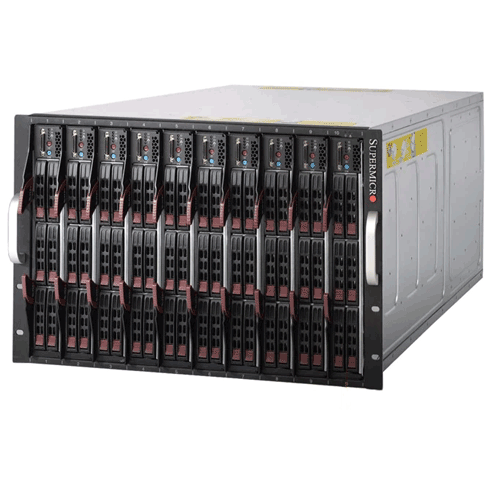

• SuperBlade full enclosure with four 1620W power supplies will have thermal limitation of 30°C ambient temperature |
