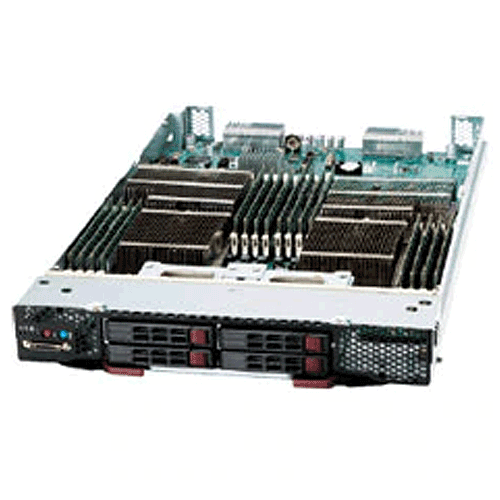

Supermicro Processor Blade SBA-7142G-T4

More Views

Supermicro Processor Blade SBA-7142G-T4

Description

Details

Supermicro Processor Blade SBA-7142G-T4

Product SKU
SBA-7142G-T4	• Processor Blade SBA-7142G-T4 (Black)

Motherboard
	• Super BHQGE

Processor/Cache
CPU	• Quad 1944-pin Socket G34 • Supports up to four 16/12/8/4-Core ready AMD Opteron™ 6000 Series processors • HT3.0 Link support
Chipset	• AMD SR5650/SP5100

System Memory
Memory Capacity	• 16x 240-pin DIMM sockets • Supports up to 512 GB 1600/1333/1066MHz DDR3 ECC Registered memory • Supports up to 64 GB 1600/1333/1066MHz DDR3 ECC Unbuffered memory • Memory Mirroring supported
Memory Type	• 1600/1333/1066MHz ECC Registered / ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 1GB, 2GB, 4GB , 8GB, 16GB , 32GB
Memory Voltage	• 1.5 V and 1.35 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices (per node)
SATA	• AMD 5100/5650 • RAID 0, 1, 10 support
InfiniBand Support	• 4x QDR / DDR (40/20Gb/s) InfiniBand mezzanine HCA (Optional)
IPMI	• Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
Network Controllers	• Intel® 82576 Dual-Port Gigabit Ethernet • Intel® I/OAT 3 support for fast, scaleable, and reliable networking • VMDq support for better performance of virtualization
Super I/O	• Winbond 83527 chip
Clock Generator	• CK505 chip

System BIOS
BIOS Type	• 32Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	• Plug and Play (PnP) • PCI 2.2 • ACPI up to 3.0 • USB Keyboard support

Dimension and Weight
Height	• 11.32" (288 mm)
Width	• 1.67" (42.4 mm)
Depth	• 20.5" (520.7mm)
Gross Weight	• 17 lbs (7.71 kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button • KVM button
LEDs	• Power LED • UID / KVM LED • Network Activity LED • Fault LED
Connector	• SUV (Serial/USB/Video) & KVM Connector

Drive Bays (per node)
Hot-swap	• 4x 2.5" SATA Hot-swap drive bays

Input / Output
KVM	• 1 Front Connector for Supermicro KVM Card

Operating Environment / Compliance
Environmental Spec.	• Operating Temperature: 10°to 35°C (50°to 95°F) • Non-operating Temperature: -40°to 70°C (-40°to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5 to 95% (non-condensing)

Electromagnetic Compatibility (EMC)
United States / Canada	• FCC- Emissions (US) Verification
Europe	• EN55022 - Emissions • EN55024 - Immunity • EN61000-3-2 - Harmonics • EN61000-3-3 - Voltage Flicker • CE - EMC Directive 89/336/EEC

Safety Compliance
United States / Canada	• UL60950-1 - CSA/CUL 60950-1
Europe	• EN60950-1, CE - Low Voltage Directive 73/23/EEE
