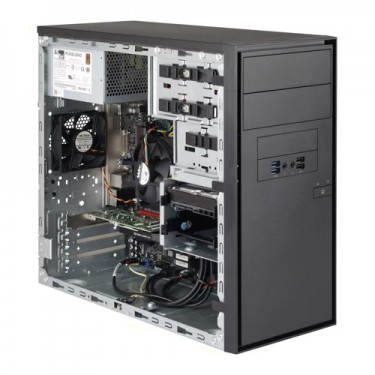

SYS-5130DQ-IL - Angle

More Views

  • SYS-5130DQ-IL - Angle
  • SYS-5130DQ-IL - Rear
  • SYS-5130DQ-IL - Front

Supermicro Mini-Tower SuperWorkstation SYS-5130DQ-IL

Call for price.
SKU:SYS-5130DQ-IL

Quick Overview:

Key Features:
• Intel® 7th/6th Gen Core i7/i5/i3
• Intel® Q270 Express Chipset
• Up to 64GB of memory
• 2x 5.25" drive bays
• 2x 3.5" fixed drive bays
• 1x 2.5" fixed drive bay


Details

Supermicro Mini-Tower SuperWorkstation SYS-5130DQ-IL

Product SKU
SuperServer • SYS-5130DQ-IL (Black)
Motherboard
  • Super C7Q270-CB-ML
Processor/Cache
CPU • Intel® 7th/6th Gen Core i7/i5/i3 series processors; CPU TDP support up to 65W TDP
• Single Socket H4 (LGA 1151)
Note BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ Processors
System Memory
Memory Capacity • 4x 288-pin DDR4 DIMM slots
• Supports up to 64GB DDR4 Non-ECC Un-Buffered memory (UDIMM) in 4 DIMM slots
Memory Type

• Frequency up to 2400MHz non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes

• 16GB, 8GB, 4GB
Memory Voltage

• 1.2V
On-Board Devices
Chipset • Intel® Q270 Express Chipset
SATA • SATA3 via PCH w/ RAID 0, 1, 5, 10
Network
Controllers		 • Intel® i219LM Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio

• RealTek ALC1150 High Definition Audio
Input/Output
SATA • 6 SATA3 (6Gbps) ports
LAN • 1 RJ45 Gigabit Ethernet LAN port
USB • 6 USB 3.0 ports (2 front, 4 rear)
• 4 USB 2.0 ports (2 front, 2 rear)
Audio • 7.1 HD Jacks
• Support SPDIF-Out (Rear)
Display • 1 DP (Display Port), 1 HDMI, 1 DVI-D
Serial Port/Header • 1 COM port (header)
TPM • 1 TPM Header
PS/2 • PS/2 Combo mouse and keyboard
Expansion Slots
PCI-Express

• 1 PCI-E 3.0 x16 slot
• 1 PCI-E 3.0 x4 slot
• 1 PCI-E 3.0 x1 slot
• 1 PCIe 3.0 x4 M.2 (supports 2280)
System BIOS
BIOS Type • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features




















 • DMI (SMBIOS) 2.7
• ACPI 5.0
• USB Keyboard support
Chassis
Form Factor • Mini-Tower
Model • CSE-DS3A-261B
Dimension and Weight
Height • 14.65" (372mm)
Width • 6.89" (175mm)
Depth • 16.85" (428mm)
Gross Weight • 18.17 lbs (8.24 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off Button
LEDs

• 1 Network Activity LED
• Hard drive activity LED
• Power LED
Ports

• 2 USB 3.0 ports
• 2 USB 2.0 ports
• 2 Audio Jacks
Drive Bays
Internal HDD/SSD

• 2 Fixed 3.5" drive bays
• 1 Fixed 2.5" drive bay
Peripheral

• 2 Peripheral 5.25" Drive Bays
System Cooling
Fans

• 1x 80mm rear fan
Power Supply
  PS2/ATX 260W/300W Multi-output power supply 80Plus Bronze, with 24pin Cable
Total Output
Power and Input		 • 300W with Input 100 - 127Vac
• 300W with Input 220 - 240Vac
AC Input
Frequency
 • 50-60Hz
Dimensions
(L x W x H)		 • 140 x 149.4 x 86 mm
Output Type • 24pin ATX
-12V • Max: 0.8A / Min: 0A
+12V • Max: 10A / Min: 0.3A (100 - 127)
• Max: 10A / Min: 0.3A (220 - 240)
• Max: 12A / Min: 0.3A (100 - 127)
• Max: 12A / Min: 0.3A (220 - 240)
+5V • Max: 18A / Min: 0.3A
+3.3V • Max: 10A / Min: 0.3A
+5Vsb • Max: 2A / Min: 0A
Bronze Certified • Bronze Certified
PC Health Monitoring
Voltage

• Monitors for CPU Cores, +12V, +3.3V, +5V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
• 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V

FAN

• Status monitor for speed control
• Status monitor for on/off control
• Support 3-pin fans (w/o speed control)
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature

• Monitoring for CPU and chassis environment
• CPU thermal trip support
• FC temperature sensing logic
• XThermal Monitor 2 (TM2) supportX
• PECI
Operating Environment
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
