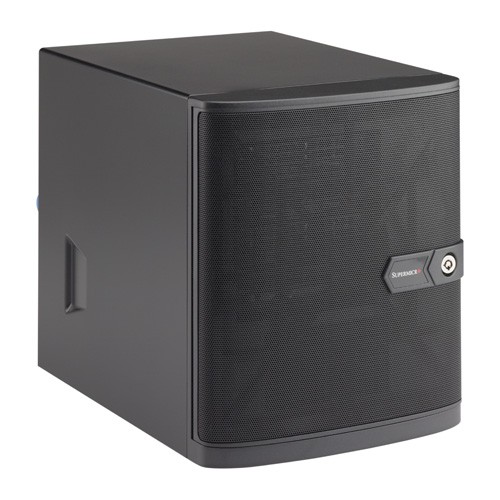

Supermicro Mini-Tower SuperServer SYS-5028D-TN4T - Angle

More Views

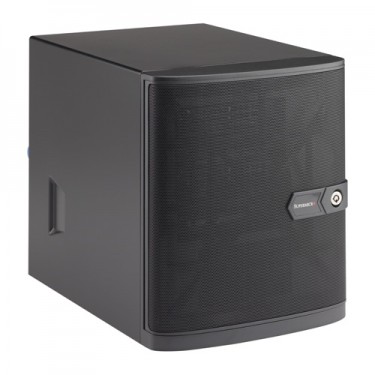

  • Supermicro Mini-Tower SuperServer SYS-5028D-TN4T - Angle

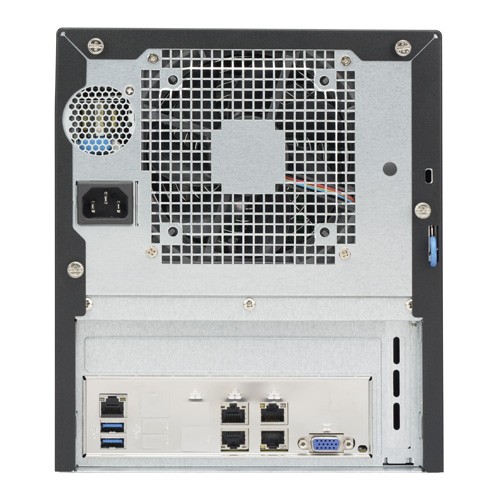

  • Supermicro Mini-Tower SuperServer SYS-5028D-TN4T - Rear

Supermicro Mini-Tower SuperServer SYS-5028D-TN4T

Call for price.
SKU:SYS-5028D-TN4T

Quick Overview:

Key Features:
• Intel® Xeon® processor D-1541, Single socket
• 4x 3.5" Hot-swap drive bays; 2x 2.5" fixed drive bays
• 1x PCI-E 3.0 x16 (LP),
  1x M.2 PCI-E 3.0 x4, M Key 2242/2280
• Up to 128GB memory in 4socket
• Dual 10GbE LAN and Intel® i350-AM2 dual port GbE LAN
• 250W Flex ATX Multi-output Bronze Power Supply


Details

Supermicro SuperServer SYS-5028D-TN4T

Product SKU
SYS-5028D-TN4T • SuperServer 5028D-TN4T (Black)
Motherboard
  • Super X10SDV-TLN4F
Processor/Cache
CPU • Intel® Xeon® processor D-1541
• FCBGA 1667 supported
• CPU TDP support 45W
• System-on-Chip
System Memory
Memory Capacity • 4x DDR4 DIMM sockets
• Supports up to 128GB DDR4 ECC RDIMM
• Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type

• 2400/2133/1600/1333MHz ECC DDR4 SDRAM
DIMM Sizes

• 32GB, 16GB, 8GB, 4GB
Memory Voltage

• 1.2 V
Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
SATA • SoC controller for SATA3 (6Gbps) ports
Network Controllers • Dual LAN via Intel® i350-AM2 Gigabit Ethernet
• Dual LAN via SoC 10GBase-T
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10GBASE-T, 100BASE-T, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics

• BMC integrated ASPEED AST2400

Input/Output
SATA • 6x SATA3 (6Gbps) ports
LAN • 2x RJ45 Gigabit Ethernet LAN ports
• 2x RJ45 10GBase-T ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 2x USB 3.0 ports (rear)
• 2x USB 2.0 ports (front panel)
Serial Port • 1x COM port (header)
DOM • 1x SATA DOM (Disk on Module) power connector
VGA • 1x VGA Port
Other • TPM 2.0 header
Management
Software












 • Intel® Node Manager
• IPMI (Intelligent Platform Management Interface) 2.0 with KVM support
• SuperDoctor® 5
• Watch Dog
• NMI
• SUM
Chassis
Form Factor • Mini Tower
Model • CSE-721TQ-250B
Dimension and Weight
Height • 9.45" (240mm)
Width • 8.27" (210mm)
Depth • 11" (279mm)
Gross Weight • 15 lbs (6.8 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs

• Power LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED
Expansion Slots
PCI-E

• 1x PCI-E 3.0 x16 (Low Profile) slot
• 1x M.2 PCI-E 3.0 x4, M Key 2242/2280
Drive Bays
HDD

• 4x 3.5" Hot-swap drive bays
• 2x 2.5" internal drive bays
Peripheral

• 1x slim DVD-ROM drive bay (shared with 1x 2.5" internal drive bay)
Power Supply
  250W Flex ATX Multi-output Bronze Power Supply
AC Voltage • 100 - 240V, 50 - 60Hz, 5Amp
+5V
 • Max:14 Amp; Min:0.5 Amp
+12V • Max:18 Amp; Min:1 Amp @100V-240V
-12V • Max: 3 Amp; Min: 0 Amp
+3.3V • Max: 12 Amp Min: 0.3Amp
5VSB • Max: 2.5 Amp Min: 0 Amp
Certification • Bronze Certified
System BIOS
BIOS Type

• 128Mb SPI Flash EEPROM with AMI UEFI BIOS
BIOS Features

• Plug and Play (PnP)
• APM 1.2
• DMI 2.3
• PCI 2.3
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• USB Keyboard support
• Hardware BIOS Virus protection
• SMBIOS 2.7.1
• UEFI
• RTC (Real Time Clock) Wakeup

Operating Environment
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Non-operating Temperature: -20°C to 60°C (-4°F to 140°F)
• Operating Relative Humidity: 10% to 85% (non-condensing)
• Non-operating Relative Humidity: 10% to 95% (non-condensing)
