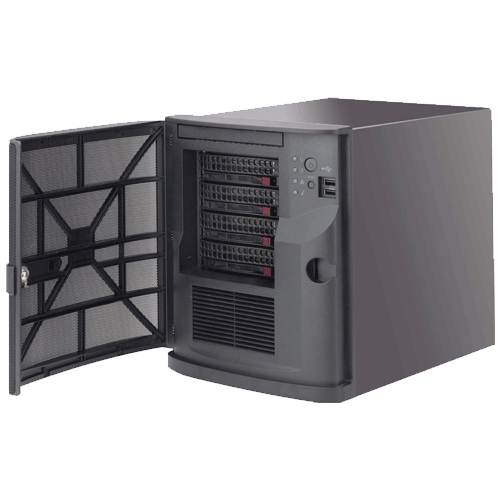

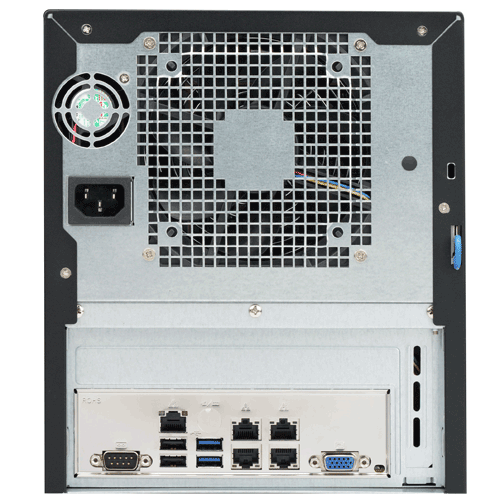

Supermicro Mini-Tower Embedded Chassis CSE-721TQ-250B2
|
Product SKU
| |
|---|---|
| CSE-721TQ-250B2 | • SuperChassis 721TQ-250B2 |
|
Form Factor
| |
|---|---|
| • Mini-Tower Chassis for motherboard support size: (6.75" x 6.75") | |
|
Dimension
| |
|---|---|
| Height | • 9.45" (240.03 mm) |
| Width | • 8.27" (210.06 mm) |
| Depth | • 11" (279.4 mm) |
| Gross Weight | • 15 lbs (6.8 kg) |
| Colot |
• Black |
|
Expansion Slots
| • 1 low-profile expansion slot(s) |
|---|
|
Drive Bays
| • 4 x 3.5" hot-swap SAS/SATA • 2 x 2.5" fixed drive bay |
|---|
|
Backplane
| • 4x 3.5" SATA / SAS Backplane with SES2 |
|---|
|
Peripheral Drives
| • 1 x slim DVD-ROM drive bay |
|---|
|
Front Panel
| Buttons | • Power On/Off button • System Reset Button |
LEDs | • 1 Network Activity LEDs • Fan Fail/System Over Heat LED • HDD activity LED • Power Status LED |
Ports |
• 2x USB 3.0 Port(s) |
|---|
|
Motherboard (for CSE- 721TQ-250B2)
| |
|---|---|
| • C9Z390-CG-IW • X11SCL-iF |
|
|
Servers (for CSE- 721TQ-250B2)
| |
|---|---|
| • 5029C-T | |
|
System Cooling
| |
|---|---|
| Fans | • 1 x 12cm rear exhaust fan(s) |
|
System Monitoring
| |
|---|---|
• Chassis intrusion switch |
|
|
Operating Environment (System)
| |
|---|---|
| Operating Temperature Range |
• 0°C - 40°C (32°F - 104°F) |
| Non-Operating Temperature Range |
• -20°C - 60°C (-4°F 140°F) |
| Operating Relative Humidity Range |
• 10% - 85% (non-condensing) |
| Non-Operating Relative Humidity Range |
• 10% - 95% (non-condensing) |
|
Power Supply
| |
|---|---|
• 1U 250W Flex ATX Multi-output Bronze Power Supply, FSP FSP250-50LC |
|
| Power Efficiency | • 85% |
| AC Input Frequency | • 50-60Hz |
| Dimensions (L x W x H) |
• 150 x 81.5 x 40.5 mm |
| Output Type | • 24pin ATX |
| -12V | • Max: .3A / Min: 0A |
| +12V | • Max: 18A / Min: 1A (100Vac - 240Vac) |
| +5V | • Max: 14A / Min: .5A |
| +3.3V | • Max: 12A / Min: .3A |
| +5Vsb | • Max: 2.5A / Min: 0A |
| Certification | • 80Plus Bronze |
