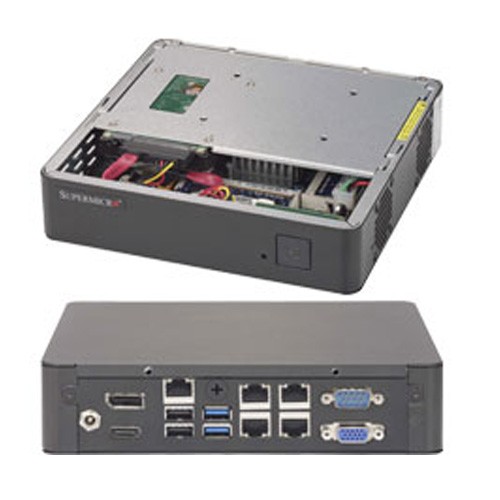

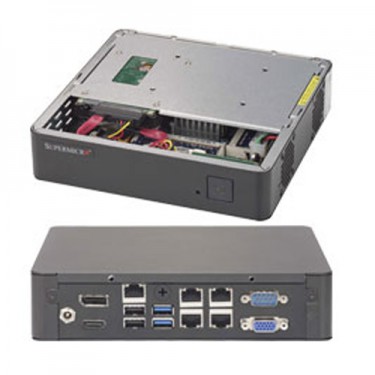

  • Supermicro Mini-ITX SuperServer SYS-E200-9B

Supermicro Mini-ITX SuperServer SYS-E200-9B

Call for price.
SKU:SYS-E200-9B

Quick Overview:

Key Features:
• Intel® Pentium® Processor N3700
• Quad-Core (6W, 4C)
• System-on-Chip
• 1x 2.5" internal drive bay
• Up to 8GB of memory
• 1x 4cm high performance PWM fan


Details

Supermicro SuperServer SYS-E200-9B

Product SKU
• SuperServer E200-9B (Black)
Motherboard
  • Super X11SBA-LN4F
Processor/Cache
CPU • Socket FCBGA1170
• Intel® Pentium® Processor N3700
• CPU TDP 6W
• 1.6-2.4GHz, 2MB
System Memory
Memory Capacity • 2x 204-pin SO-DIMM slot
• Supports up to 8GB non-ECC DDR3 1600MHz memory (Dual Channel)
Memory Type

• 1600/1333/1066MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs

DIMM Sizes

• 4GB, 2GB

Memory Voltage

• 1.35 V

On-Board Devices
Chipset • Intel® N3700 System on Chip
SATA • SATA 3.0 (6Gbps) from Intel® SoC
Network Controllers • Quad Gigabit Ethernet LAN ports with Intel® I210-AT
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics

• Aspeed AST2400 BMC

Input/Output
Serial ATA • 2x SATA3 (6Gbps) ports
LAN • 4x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 2x USB 3.0 ports (rear)
• 2x USB 2.0 ports (rear)
Display • 1x Display Port, 1x HDMI, 1x VGA (Two Independent Displays)
DOM • 1x SuperDOM (Disk on Module) port with built-in power
Others





















• TPM 1.2 header





















Chassis
Form Factor • Mini-ITX
Model CSE-101S
Dimension and Weight
Width • 7.68" (195mm) / 15" (381mm) - pkg.
Height • 1.75" (44.5mm) / 10.87" (276mm) - pkg.
Depth • 7.68" (195mm) / 5.59" (142mm) - pkg.
Gross Weight • 5.5 lbs (2.49 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button

LEDs

• Power LED (Hard drive activity LED)

Expansion Slots
Mini-PCIe

• 1x mini-PCIe slot with mSATA support

Drive Bays
Internal

• 1x 2.5" internal drive tray

System Cooling
Fans

• 1x 4cm high performance PWM fan; support up to 2 chassis fans

Power Supply
  • 60W DC Power Adapter
System BIOS
BIOS Type

• 128Mb SPI Flash EEPROM with AMI UEFI BIOS

BIOS Features

• Plug and Play (PnP)
• ACPI 5.0
• UEFI 2.3.1
• SMBIOS 2.7
• DMI 2.3
• USB Keyboard support
• RTC (Real time Clock) Wakeup
• 3TB HDD Support

Management
Software

• IPMI 2.0 with KVM support
• NMI
• SUM
• SuperDoctor® 5
• Watch Dog

Power
Configuration
• ACPI / ACPM Power Management
• Main Switch Override Mechanism
• Keyboard Wakeup from Soft-Off
• Power-on mode for AC power recovery
Fan • Fans with tachometer status monitoring
• Status monitor for speed control
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors
Operating Environment/Compliance
RoHS

• RoHS Compliant

Environmental Spec. • Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 10% to 85% (non-condensing)
• Non-operating Relative Humidity: 10% to 95% (non-condensing)
