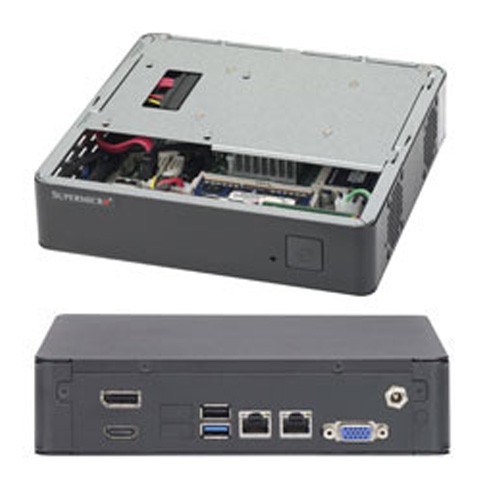

Supermicro Mini-ITX SuperServer SYS-E200-8B

More Views

  • Supermicro Mini-ITX SuperServer SYS-E200-8B

Supermicro Mini-ITX SuperServer SYS-E200-8B

Call for price.
SKU:SYS-E200-8B

Quick Overview:

Key Features:
• Intel® Celeron™ J1900 (10W, 4C)
• System-on-Chip
• 1x 2.5" internal drive bay
• Up to 8GB of memory
• 1x 4cm high performance PWM fan
• 60W DC power adapter


Details

Supermicro SuperServer SYS-E200-8B

Product SKU
SYS-E200-8B • SuperServer E200-8B (Black)
Motherboard
  • Super X10SBA
Processor/Cache
CPU • Socket FCBGA1170
• Intel® Celeron Processor J1900
• 2M Cache, up to 2.42 GHz, 10W (formerly Bay Trail)
System Memory
Memory Capacity • 2x 204-pin SO-DIMM slot
• Supports up to 8GB non-ECC DDR3 1333MHz memory (Dual Channel)
• Some 1600MHz memory can be used, but memory capacity will operate at 1333MHzv
Memory Type

• 1333/1066MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs
DIMM Sizes

• 4GB, 2GB
Memory Voltage

• 1.35 V
On-Board Devices
Chipset • Intel® J1900 System on Chip
SATA • SATA 2.0 (3Gbps) from Intel® SoC
• SATA 3.0 (6GbpS) from Marvell 88SE9230 with HW RAID 0, 1, 10 (Windows only)
Network Controllers • Dual Intel® I210-AT Gigabit Ethernet LAN ports
Graphics

• Intel® HD Graphics
USB 3.0

• Intel® SoC
COM Ports

• Nuvoton NCT5104D
Input/Output
Serial ATA • 4x SATA3 (6Gbps) ports
• 4x SATA3 (6Gbps) ports 2x SATA2 (3Gbps) ports
LAN • 2x RJ45 Gigabit Ethernet LAN ports
USB • 1x USB 3.0 port
• 1x USB 2.0 port
Display • 1x Display Port, 1x HDMI, 1x VGA, 2x Independent Displays
DOM • DOM (Disk on Module) power connector support
Others















 • TPM 1.2 header
Chassis
Form Factor • Mini-ITX
Model • CSE-101S
Dimension and Weight
Width • 7.68" (195mm) / 15" (381mm) - pkg.
Height • 1.7" (43mm) / 10.87" (276mm) - pkg.
Depth • 7.68" (195mm) / 5.59" (142mm) - pkg.
Gross Weight • 5.75 lbs (2.6 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
LEDs

• Power LED (Hard drive activity LED)
Expansion Slots
Mini-PCI-E

• 1x Mini-PCIe slot
mSATA (2.0)

• 1x mSATA slot (SATA 2.0)
Drive Bays
Internal

• 1x 2.5" HDD tray (no exceed 9.5mm thickness for the HDD selection)
System Cooling
Fans

• 1x 4cm cooling fan
Power Supply
  • 60W DC Power Adapter

System BIOS
BIOS Type • 64Mb SPI Flash EEPROM with AMI UEFI BIOS
BIOS Features • Plug and Play (PnP)
• ACPI 5.0
• UEFI 2.3.1
• SMBIOS 2.7
• DMI 2.3
• USB Keyboard support
• RTC (Real time Clock) Wakeup
• 3TB HDD Support
Management
Software

• SuperDoctor® 5
• Watch Dog

Power
Configuration

• ACPI / ACPM Power Management
• Main Switch Override Mechanism
• Keyboard Wakeup from Soft-Off
• Power-on mode for AC power recovery

Fan

• Fans with tachometer status monitoring
• Status monitor for speed control
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors
Operating Environment
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 10% to 85% (non-condensing)
• Non-operating Relative Humidity: 10% to 95% (non-condensing)
