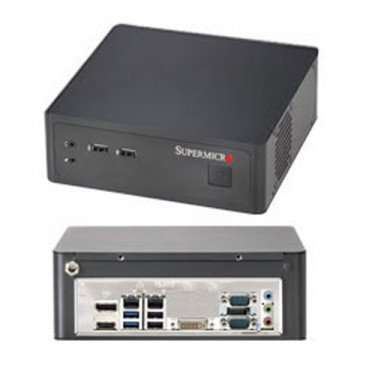

Supermicro SuperServer SYS1018L-MP
|
Product SKU
| |
|---|---|
| SYS-1018L-MP | • SuperServer 1018L-MP (Black) |
|
Motherboard
| |
|---|---|
| • Super X10SLV | |
| Processor/Cache
|
|
|---|---|
| CPU | • Intel® 4th Gen Core i7/i5/i3, Pentium, Celeron processors (Up to 45W TDP*)
* Please contact your Supermicro Sales Representative for additional details • Single Socket H3 (LGA 1150) |
|
System Memory
| |
|---|---|
| Memory Capacity | • 2x DDR3 204-pin SO-DIMM slots • Supports up to 16GB of non-ECC DDR3 1600MHz (Single Channel) |
| Memory Type | • 1600MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs |
| DIMM Sizes | • 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | • 1.5 V |
|
On-Board Devices
| Chipset | • Intel® H81 Express Chipset |
|---|---|
| Network Controllers | • Intel® i217 + Intel® i210AT Controllers |
| Audio | • RealTek ALC888S 7.1 High Definition Audio |
| Graphics | • Intel HD 4600 Graphics, Processor Graphic |
| Super I/O |
• NCT6106D |
|
Input/Output
| Serial ATA | • 2 SATA 3.0 ports (6Gbps) including 1 mSATA • 2 SATA 2.0 ports (3Gbps) |
LAN | • 2 RJ45 Gigabit Ethernet LAN ports | USB | • 4 USB 2.0 ports, 2 USB 3.0 ports |
|---|---|
| Audio | • 7.1 HD Audio header and rear I/O (Mic-in/Line-in/Line-out) |
| Display |
• 1 Display Port, 1 HDMI, 1 DVI-I, 2 Independent Displays |
|
Chassis
| |
|---|---|
| Form Factor | • Mini-ITX |
| Model | • CSE-101i |
|
Dimension and Weight
| |
|---|---|
| Width | • 7.68" (195mm) |
| Height | • 2.68" (68mm) |
| Depth | • 7.68" (195mm) |
| Gross Weight | • 5.75 lbs (2.6 kg) |
| Available Colors | • Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power button |
| LEDs | • Power LED (Hard drive activity LED) |
| I/O Ports | • 2 USB 2.0 |
|
Expansion Slots
| |
|---|---|
| PCI-E |
• 1 Mini-PCIe w/ mSATA support |
|
Drive Bays
| |
|---|---|
| Internal |
• 1x 2.5" HDD tray |
|
System Cooling
| |
|---|---|
| Fans | • 1x 6cm 4-pin high performance cooling fan |
|
Power Supply
| |
|---|---|
| •84W DC Power Adapter | |
|
System BIOS
| |
|---|---|
| BIOS Type |
• 128Mb SPI Flash EEPROM with AMI UEFI BIOS |
| BIOS Features | • Plug and Play (PnP) |
|
Operating Environment/Compliance
| |
|---|---|
| RoHS |
• RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
0°C to 40°C (32°F to 104°F) • Non-operating Temperature: -20°C to 60°C (-4°F to 140°F) • Operating Relative Humidity: 10% to 85% (non-condensing) • Non-operating Relative Humidity: 10% to 95% (non-condensing) |
