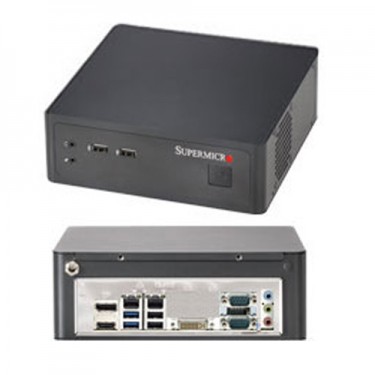

Supermicro SuperServer SYS-1017A-MP
|
Product SKU
| |
|---|---|
| SYS-1017A-MP | • SuperServer 1017A-MP (Black) |
|
Motherboard
| |
|---|---|
| • Super X9SCAA | |
| Processor/Cache
|
|
|---|---|
| CPU | • Socket FCBGA559 • Intel® Atom® N2800 (2 Core) processors support • 1MB, 1.86GHz, 2C/4T, HT, 64-bit, 6.5W |
|
System Memory
| |
|---|---|
| Memory Capacity | • 2x 204-pin SO-DIMM slots • Supports up to 4GB of non-ECC DDR3 1066MHz (Single Channel) • Some 1333MHz memory can be used, but memory capacity will operate at 1066MHz |
| Memory Type | • 1066MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs |
| DIMM Sizes | • 2GB, 1GB |
| Memory Voltage | • 1.5 V |
|
On-Board Devices
| Chipset | • Intel® NM10 Express Chipset |
|---|---|
| SATA | • SATA 2.0 (3Gb/s) |
| Network Controllers | • Intel® 82574L dual-port Gigabit Ethernet LAN ports • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Audio | • Realtek ALC888S-VD2 HD Audio |
| Graphics | • Integrated Intel® GMA 3650 |
| USB 3.0 |
• Renesas uPD720202 |
|
Input/Output
| SATA | • 2x SATA2 ports | LAN | • 2x RJ45 LAN ports | USB | • 2x USB 3.0 ports (2 rear) • 4x USB 2.0 ports (2 rear, 2 front) |
|---|---|
| Video Output |
• VGA, HDMI, Display Port |
|
Chassis
| |
|---|---|
| Form Factor | • Mini-ITX |
| Model | • CSE-101i |
|
Dimension and Weight
| |
|---|---|
| Width | • 7.68" (195mm) |
| Height | • 2.68" (68mm) |
| Depth | • 7.68" (195mm) |
| Gross Weight | • 5.75 lbs (2.6 kg) |
| Available Colors | • Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power button |
| LEDs | • Power LED (Hard drive activity LED) |
| I/O Ports |
• 2x USB 2.0 |
|
Expansion Slots
| |
|---|---|
| PCI-E |
• 1x Mini-PCI-E |
|
Drive Bays
| |
|---|---|
| Internal |
• 1x 2.5" HDD tray |
|
System Cooling
| |
|---|---|
| Fans | •1x 6cm 4-pin high performance cooling fan |
|
Power Supply
| |
|---|---|
| • 60W DC Power Adapter | |
|
System BIOS
| |
|---|---|
| BIOS Type |
• 64Mb SPI Flash EEPROM with AMI UEFI BIOS |
| BIOS Features | • Plug and Play (PnP) |
|
Operating Environment/Compliance
| |
|---|---|
| RoHS |
• RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
0°C to 40°C (32°F to 104°F) • Non-operating Temperature: -20°C to 60°C (-4°F to 140°F) • Operating Relative Humidity: 10% to 85% (non-condensing) • Non-operating Relative Humidity: 10% to 95% (non-condensing) |
