Details

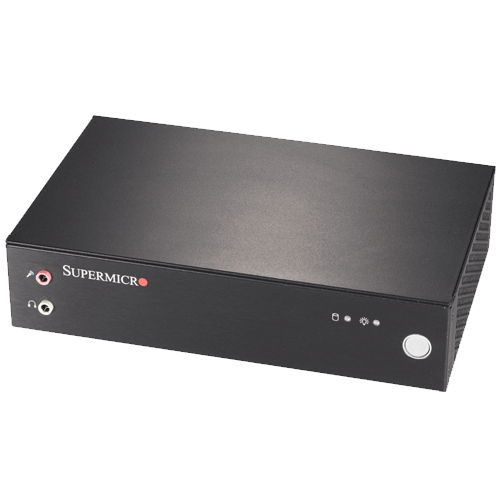

Supermicro Mini-ITX Chassis CSE-E102
|
Product SKU
| |
|---|---|
| CSE-E102 | • SuperChassis E102 |
|
Form Factor
| |
|---|---|
| • Embedded Compact | |
| Processor Support
|
|
|---|---|
| • Single Intel® and AMD processors | |
|
Dimension
| |
|---|---|
| Height | • 1.7" (43 mm) |
| Width | • 7.6" (193 mm) |
| Depth | • 5.2" (132 mm) |
| Gross Weight | • N/A |
| Colot |
• Black |
|
Drive Bays
| • Optional 1 x 2.5" Internal Drive |
|---|
|
Front Panel
| Buttons | • Power On/Off button | LEDs | • HDD activity LED • Power LED |
|---|
|
Motherboard (for CSE- E102)
| |
|---|---|
| • X11SAN | A2SAN-H • A2SAN-L | X11SSN-L |
|
|
System Cooling
| |
|---|---|
| Fans | • 1 x 4cm high performance PWM fan(s) |
|
Operating Environment (System)
| |
|---|---|
| Operating Temperature Range |
• 0°C - 40°C (32°F - 104°F) |
| Non-Operating Temperature Range |
• -20°C - 60°C (-4°F 140°F) |
| Operating Relative Humidity Range |
• 10% - 85% (non-condensing) |
| Non-Operating Relative Humidity Range |
• 10% - 95% (non-condensing) |
