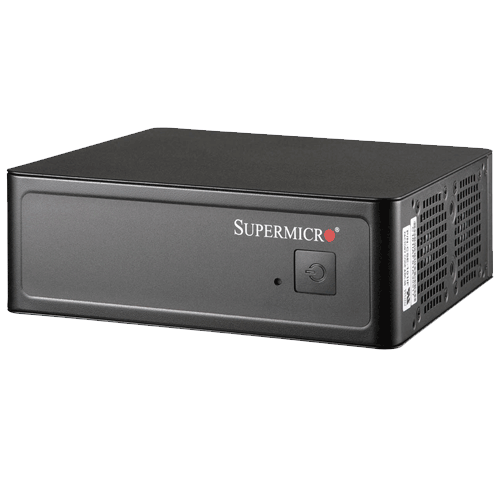

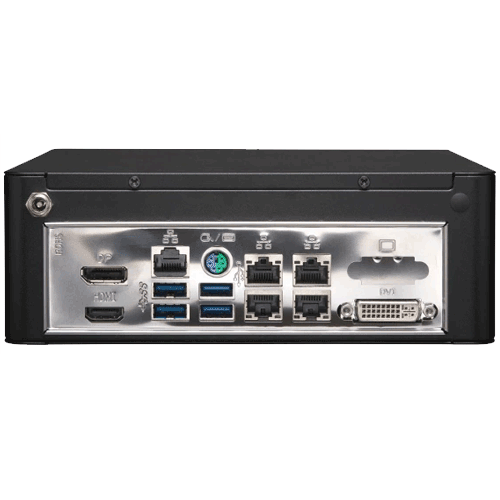

Supermicro Mini-ITX Chassis CSE-101iF
|
Product SKU
| |
|---|---|
| CSE-101iF | • SuperChassis 101iF |
|
Form Factor
| |
|---|---|
| •Mini-ITX Chassis for motherboard support size: (Mini-ITX 6.75" x 6.75") | |
| Processor Support
|
|
|---|---|
| • Intel® Atom™ processors • Single Intel® and AMD processors |
|
|
Dimension
| |
|---|---|
| Height | • 2.68" (68 mm) |
| Width | • 7.68" (195 mm) |
| Depth | • 7.68" (195 mm) |
| Gross Weight | • 7.5 lbs (3.4 kg) |
| Colot |
• Black |
|
Drive Bays
| |
|---|---|
| • 1 x 2.5" fixed drive bay • Enterprise SATA HDD only recommended |
|
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button • System Reset Button |
| LEDs |
• Power Status LED |
|
Motherboard (for CSE- 101iF)
| |
|---|---|
| • A2SDi-2C-HLN4F • A2SDi-8C+-HLN4F |
|
|
Servers (for CSE- 101iF)
| |
|---|---|
| • 1019S-MP | |
|
System Cooling
| |
|---|---|
| Fans | • 2 x 6cm 4-pin high performance cooling fan(s) |
|
Operating Environment (System)
| |
|---|---|
| Operating Temperature Range |
• 0°C - 40°C (32°F - 104°F) |
| Non-Operating Temperature Range |
• -20°C - 60°C (-4°F 140°F) |
| Operating Relative Humidity Range |
• 10% - 85% (non-condensing) |
| Non-Operating Relative Humidity Range |
• 10% - 95% (non-condensing) |
|
Power Supply
| |
|---|---|
• Optional 60W/84W, DC-DC Power Adapter |
|
|
Regulatory (Power Supply)
| |
|---|---|
| Power Supply Safety / EMC |
• CCC |
