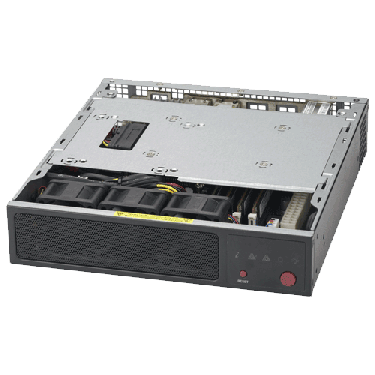

Supermicro Mini-ITX Chassis CSE-101F - Angle

More Views

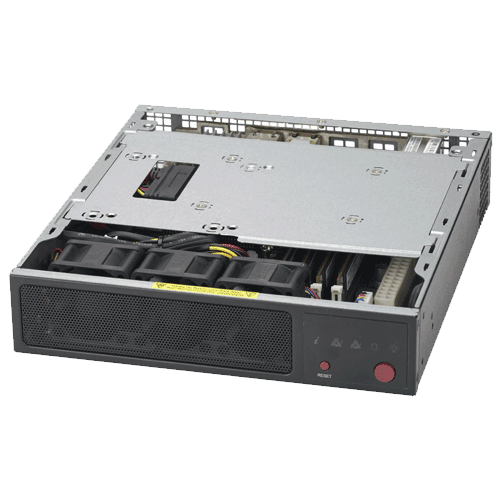

  • Supermicro Mini-ITX Chassis CSE-101F - Angle

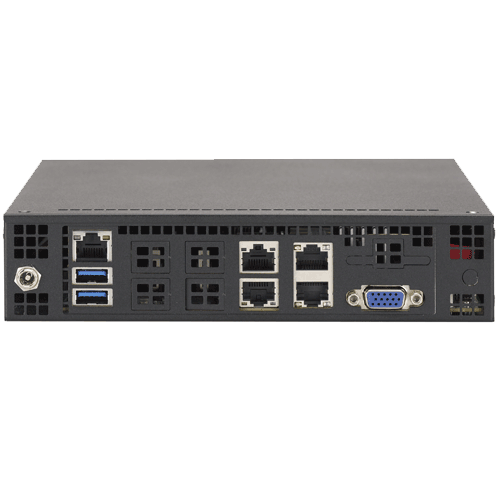

  • Supermicro Mini-ITX Chassis CSE-101F -Rear

Supermicro Mini-ITX Chassis CSE-101F

$0.00
SKU:CSE-101F

Quick Overview:

Key Features:
• Compact Desktop BOX Server PC
• Embedded Appliance Chassis
• Optimized for Server Mini-ITX Motherboard
• Support 1x 2.5 fixed drive
• Power Switch, Reset Button and LED Indicators


Details

Supermicro Mini-ITX Chassis CSE-101F

Product SKU
CSE-101F • SuperChassis 101F
Form Factor
  • Mini-ITX 6.75" x 6.75"
Processor Support
  • Single Intel® and AMD processors
Dimension
Height • 1.7" (43 mm)
Width

• 7.6" (193 mm)
Depth

• 8.9" (226 mm)
Gross Weight

• 7.5 lbs (3.4 kg)
Colot

• Black
Drive Bays
  • 1 x 2.5" fixed drive bay
Front Panel
Buttons • Power On/Off button
• System Reset Button
LEDs • Unit Identification (UID) LED
Regulatory (Power Supply)
Power Supply Safety
/ EMC

• CCC
• CE/EMC
• FCC
• TUV/CB
• UL/CUL
Motherboard (for CSE- 101iF)
  • A2SDi-2C-HLN4F | A2SDi-H-TP4F
• A2SDi-H-TF | A2SDi-TP8F
• A2SDi-LN4F | A2SDi-4C-HLN4F
• A2SDi-12C-HLN4F | A2SDi-16C-HLN4F
• A2SDi-8C-HLN4F
Servers (for CSE- 101iF)
  • E200-8D
• E200-9A
System Cooling
Fans

• 1 x 4cm high performance PWM fan(s)
• Optional 2 x 4cm high performance PWM fan(s)
Operating Environment (System)
Operating Temperature
Range 		 • 0°C - 40°C (32°F - 104°F)
Non-Operating
Temperature Range		 • -20°C - 60°C (-4°F – 140°F)
Operating Relative
Humidity Range 		 • 10% - 85% (non-condensing)
Non-Operating
Relative Humidity
Range		 • 10% - 95% (non-condensing)
Power Supply


• Optional 60W/84W, DC-DC Power Adapter or DC/DC Power converter board
