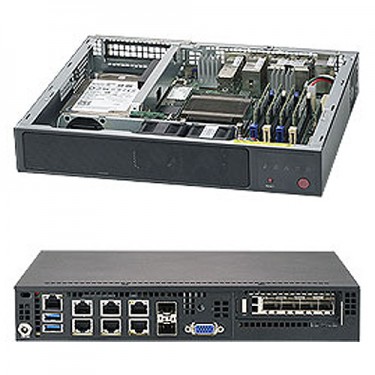

Supermicro Mini-ITX Box PC SYS-E300-9A

Call for price.

SKU:SYS-E300-9A

Quick Overview:

Key Features:
• Embedded Networking Applications
• Network Security Appliance
• FireWall Applications | Virtualization Server
• Intel® Atom® processor C3858, Single socket FCBGA 1310
• System on Chip
• 2 fixed 2.5" drive bays (top drive bay area share with AOC)
• Up to 64GB Unbuffered ECC/non-ECC SO-DIMM, up to DDR4-2400MHz, in 4 DIMM slots
• 1 PCI-E 3.0 x4 AOC slot (LP)
• 2x 10GBase-T, 2x 10G SFP+, and 4x 1GbE LAN ports
• VGA via BMC, 2 USB 3.0 ports
• 2x 40mm chassis fans, passive CPU heat sink
• 84W DC power adapter

Description

Details

Supermicro Mini-ITX SuperServer SYS-E300-9A

Product SKU
SYS-E300-9A	• SuperServer E300-9A (Black)

Motherboard
	Super A2SDi-TP8F

Processor/Cache
CPU	• Intel® Atom® processor C3858 • FCBGA 1310 • CPU TDP support 25W

System Memory
Memory Capacity	• 4x DDR4 DIMM sockets • Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type	• 2400/2133/1866MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes	• 32GB, 16GB, 8GB, 4GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• System on Chip
SATA	• SoC controller for 4 SATA3 (6Gbps) ports
Network Controller	• Quad LAN (2 10GBase-T, 2 10Gb SFP+) via Intel® C3000 SoC • Quad Gigabit Ethernet LAN via Intel® i350-AM4
Graphics	• Aspeed AST2400

Input/Output
SATA	• 2 SATA3 (6Gbps) ports
LAN	• 4 RJ45 Gigabit Ethernet LAN ports • 2 10G SFP+ LAN ports • 2 RJ45 10GBase-T ports • 1 RJ45 Dedicated IPMI LAN port
USB	• 2 USB 3.0 ports (rear)
Display	• 1 VGA port
DOM	• 1 SuperDOM (Disk on Module) power connector
TPM	• TPM 2.0 header

Chassis
Form Factor	• Mini-1U
Model	• CSE-E300

Dimension and Weight
Height	• 1.7" (43mm) / 10.87" (276mm) - pkg.
Width	• 10" (254mm) / 15" (381mm) - pkg.
Depth	• 8.9" (226mm) / 5.59" (142mm) - pkg.
Available Color	• Black

Front Panel
Buttons	• Power On/Off button
LEDs	• Power LED (Hard drive activity LED)

Expansion Slots
M.2	• Interface: PCI-E 3.0 x4 or SATA3 • Form Factor: M Key 2242/2280

Drive Bays
Internal	• 2 fixed 2.5" drive bays, one with bracket, one on base mount (1 fixed 2.5" drive bay when AOC area is occupied)

System Cooling
Fans	• 2x 40mm chassis fans

Power Supply
	• 84W DC power adapter

System Bios
BIOS Type	• 128Mb SPI Flash with AMI BIOS
BIOS Features	• PCI 3.0 • ACPI 5.0 • USB Keyboard support • Hardware BIOS Virus protection • SMBIOS 2.8 • UEFI 2.4 • RTC (Real Time Clock) Wakeup

Management
Software	• IPMI 2.0 • KVM with dedicated LAN • NMI • SuperDoctor 5 • WatchDOg
Power Configuration	• ACPI / APM Power Management • CPU Fan auto-off in sleep mode • Power-on mode for AC power recovery
Fan	• Fans with tachometer status monitoring • Status monitor for speed control • Low noise fan speed control • Pulse Width Modulated (PWM) fan connectors

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 0°C to 40°C (32°F to 104°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
