Details

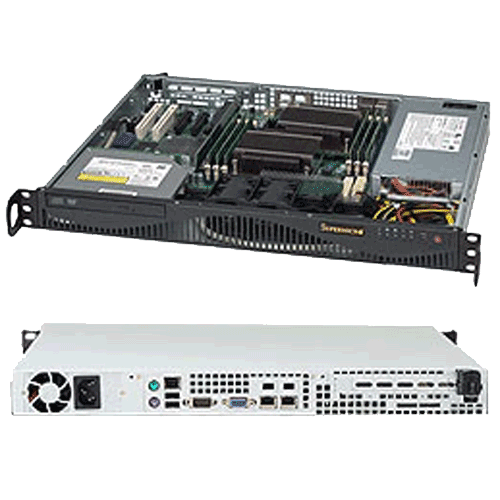

Supermicro Mini 1U Chassis CSE-512F-350B
|
Product SKU
| |
|---|---|
| CSE-512F-350B | • SuperChassis 512F-350B |
|
Form Factor
| |
|---|---|
| • 14.5" Mini 1U chassis - supports maximum motherboard sizes: ATX 12" x 10" | |
| Processor Support
|
|
|---|---|
| • Single and Dual Intel® and AMD processors | |
|
Dimension
| |
|---|---|
| Height | • 1.7" (43 mm) |
| Width | • 17.2" (437 mm) |
| Depth | • 14.5" (369 mm) |
| Gross Weight | • 14 lbs (6.35 kg) |
| Colot |
• Black |
|
Expansion Slots
| • 1 full-height & half-length expansion slot(s) (Riser Card Required) |
|---|
|
Drive Bays
| • 2 x 3.5" fixed drive bay • SAS or enterprise SATA HDD only recommended |
|---|
|
Peripheral Drives
| • 1 x slim DVD-ROM drive bay • Optional 1 x Slim DVD-ROM Drive |
|---|
|
Front Panel
| Buttons | • Power On/Off button • System Reset Button |
LEDs |
• 2 Network Activity LEDs • Fan Fail/System Over Heat LED • HDD activity LED • Power Status LED |
|---|
|
Servers (for CSE- 512F-350B)
| |
|---|---|
| • 5017C-MF • 5019S-ML • 5018D-MF |
|
|
System Cooling
| |
|---|---|
| Fans | • 2 x 4cm counter-rotating PWM fan(s) |
|
Operating Environment (System)
| |
|---|---|
| Operating Temperature Range |
• 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range |
• -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range |
• Humidity Range 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range |
• Humidity Range 5% - 95% (non-condensing) |
|
Power Supply
| |
|---|---|
• 1U 350W Multi-output Power Supply Gold level 100mm width |
|
| Power Efficiency | • 92% |
| Total Output Power and Input |
• 350W with Input 100 - 240Vac |
| AC Input Frequency | • 50-60Hz |
| Dimensions (L x W x H) |
• 220 x 100 x 40.3 mm |
| Output Type | • 24pin ATX |
| -12V | • Max: 0.5A / Min: 0A |
| +12V | • Max: 29A / Min: 1A (100Vac - 240Vac) |
| +5V | • Max: 18A / Min: 0.5A |
| +3.3V | • Max: 15A / Min: 0.5A |
| +5Vsb | • Max: 3A / Min: 0A |
| Certification | • 80Plus Gold Certified |
|
Regulatory (Power Supply)
| |
|---|---|
| Power Supply Safety / EMC |
• BSMI |
