Details

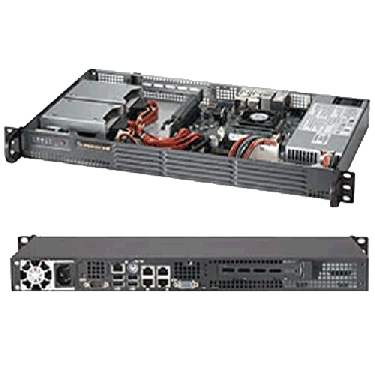

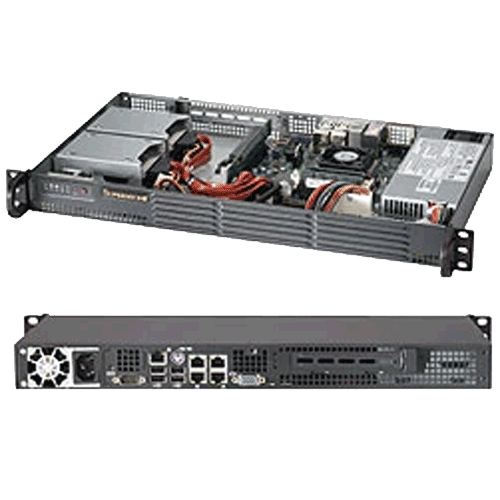

Supermicro Mini 1U Chassis CSE-504-203B
|
Product SKU
| |
|---|---|
| CSE-504-203B | • SuperChassis 504-203B |
|
Form Factor
| |
|---|---|
| • 9.8" Mini 1U chassis support for maximum motherboard size: Mini-ITX 6.75" x 6.75" | |
| Processor Support
|
|
|---|---|
| • 3rd Generation Intel® Core™ i7/i5/i3, up to 35W | |
|
Dimension
| |
|---|---|
| Height | • 1.7" (43 mm) |
| Width | • 17.2" (437 mm) |
| Depth | • 9.8" (249 mm) |
| Gross Weight | • 10 lbs (4.54 kg) |
| Colot |
• Black |
|
Expansion Slots
| |
|---|---|
| • Up to 1x full-height, half-length PCI expansions slot* *NOTE: Riser Card Required, See 'Drive Bays' for possible configurations | |
|
Drive Bays
| |
|---|---|
| • 1 x 3.5" Internal Drive Bay with 1 Full-height, Half-length PCI • Or 2 x 3.5" Internal Drive Bay • Or 2 x 2.5" Internal Drive Bay with 1 Full-height, Half-length PCI • Or 4 x 2.5" Internal Drive • Only SAS or enterprise SATA HDD recommended |
|
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button • System Reset Button |
| LEDs | • 2 Network Activity LEDs • Fan Fail/System Over Heat LED • HDD activity LED • Power Status LED |
| Ports |
• 1x VGA, IPMI, 4xLANs, 1x COM, 4xUSB, 1xKeyboard/Mouse |
|
System Cooling
| |
|---|---|
| Fans | • 1 x High-efficiency power supply with thermal control fan(s) |
|
Operating Environment (System)
| |
|---|---|
| Operating Temperature Range |
• 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range |
• -40°C - 60°C (-40°F - 140°F) |
| Operating Relative Humidity Range |
• 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range |
• 5% - 95% (non-condensing) |
|
Power Supply
| |
|---|---|
• 1U 200W Multi-output power supply Gold level w/20pin |
|
| Power Efficiency | • 91% |
| Total Output Power and Input |
• 200W with Input 100 - 240Vac |
| AC Input Frequency | • 50-60Hz |
| Dimensions (L x W x H) |
• 192 x 76 x 40.3 mm |
| Output Type | • 20pin ATX |
| -12V | • Max: 0.5A / Min: 0A |
| +12V | • Max: 16A / Min: 0.1A (100Vac - 240Vac) |
| +5V | • Max: 8AA / Min: 0.1A |
| +3.3V | • Max: 8A / Min: 0.1A |
| +5Vsb | • Max: 2A / Min: 0A |
| Certification | • 80Plus Gold Certified |
|
Regulatory (Power Supply)
| |
|---|---|
| Power Supply Safety / EMC |
• BSMI |
