Details

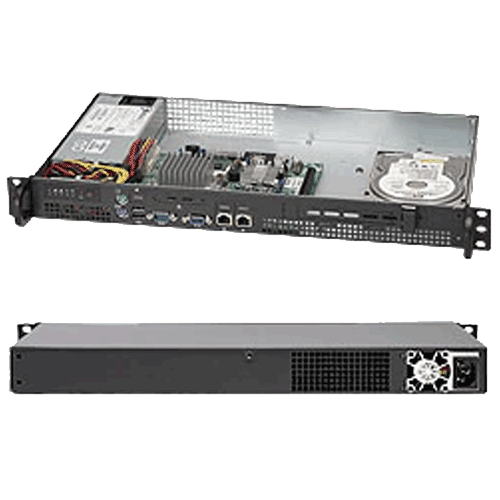

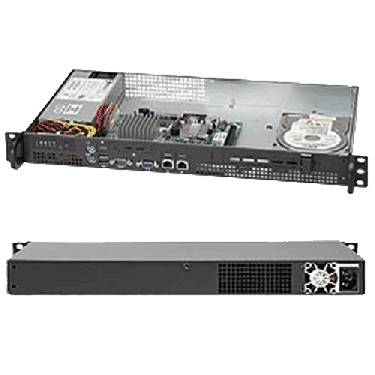

Supermicro Mini 1U Chassis CSE-503L-200B
|
Product SKU
| |
|---|---|
| CSE-503L-200B | • SuperChassis 503L-200B |
|
Form Factor
| |
|---|---|
| • 9.8" Mini 1U chassis support for maximum motherboard size: Micro-ATX 9.6" x 9.6" | |
| Processor Support
|
|
|---|---|
| • Intel® Atom™ processors | |
|
Dimension
| |
|---|---|
| Height | • 1.7" (43 mm) |
| Width | • 17.2" (437 mm) |
| Depth | • 9.8" (249 mm) |
| Gross Weight | • 10 lbs (4.54 kg) |
| Colot |
• Black |
|
Expansion Slots
| • 1x full-height half-length PCI expansion slot (Optional) (Riser Card Required) |
|---|
|
Drive Bays
| • 1 x 3.5" fixed drive bay • Or optional 2 x 2.5" Internal Drive • Or optional 1 x 2.5" Internal Drive Bay with 1x Full-height, Half-length PCI • SAS or enterprise SATA HDD only recommended |
|---|
|
Front Panel
| Buttons | • Power On/Off button • System Reset Button |
LEDs | • 2 Network Activity LEDs • Fan Fail/System Over Heat LED • HDD activity LED • Power Status LED |
Ports |
• Standard System I/O (Mouse, Keyboard, 2x USB Video, COM, LPT, LAN) |
|---|
|
Operating Environment (System)
| |
|---|---|
| Operating Temperature Range |
• 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range |
• -40°C - 60°C (-40°F - 140°F) |
| Operating Relative Humidity Range |
• 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range |
• 5% - 95% (non-condensing) |
|
Power Supply
| |
|---|---|
• 1U 200W Multi-output power supply with 20pin, YM-5201D |
|
| Power Efficiency | • 82% |
| Total Output Power and Input |
• 200W with Input 100 - 240Vac |
| AC Input Frequency | • 50-60Hz |
| Dimensions (L x W x H) |
• 192.8 x 76.2 x 40.3 mm |
| Output Type | • 20pin ATX |
| -12V | • Max: 0.8A / Min: 0A |
| +12V | • Max: 15A / Min: 1A (100Vac - 240Vac) |
| +5V | • Max: 16AA / Min: 0.3A |
| +3.3V | • Max: 17A / Min: 0.5A |
| +5Vsb | • Max: 2A / Min: 0.1A |
|
Regulatory (Power Supply)
| |
|---|---|
| Power Supply Safety / EMC |
• CE/EMC |
