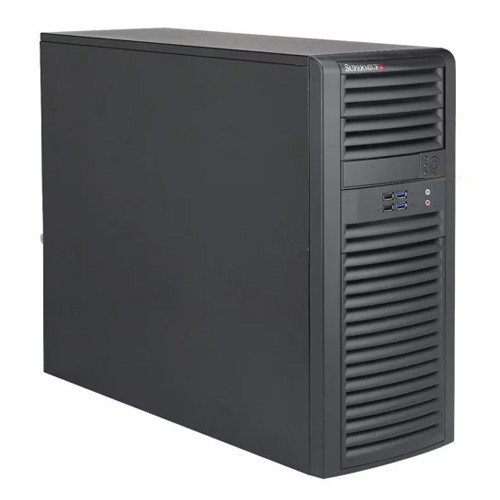

Supermicro Mid-Tower SuperWorkstation SYS-7038A-I - Angle

More Views

Supermicro Mid-Tower SuperWorkstation SYS-7038A-I

Description

Details

Supermicro SuperWorkstation SYS7038A-I

Product SKU
SuperWorkstation	• SYS-7038A-I (Black)

Motherboard
	• Super X10DAi

Processor/Cache
CPU	• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 160W TDP) * • Dual Socket R3 (LGA 2011)
Cores/Cache	• Up to 22 Cores† / Up to 55MB† Cache
System Bus	• QPI up to 9.6 GT/s
	† BIOS version 2.0 or above is required
Note	* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity	• 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type	• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	• RDIMM: 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors

On-Board Devices
Chipset	• Intel® C612 chipset
SATA	• SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers	• Intel® i210 Dual Port Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio	• RealTek ALC888 7.1 High Definition Audio with S/PDIF header
Super I/O	• Nuvoton W83627

Input/Output
SATA	• 10x SATA3 (6Gbps) ports
LAN	• 2x RJ45 Gigabit Ethernet LAN ports
USB	• 6x USB 3.0 ports (4 rear + 2 via header) • 5x USB 2.0 ports (2 rear + 2 via header + 1 Type A)
Audio	• 7.1 HD Audio with optical S/PDIF
DOM	• 2x DOM (Disk on Module) power connectors
TPM	• 1x TPM 1.2 20-pin Header

System BIOS
BIOS Type	• 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	• Plug and Play (PnP) • APM 1.2 • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • USB Keyboard support • SMBIOS 2.7.1 • UEFI 2.3.1

Chassis
Form Factor	• Mid-Tower
Model	• CSE-732D4-903B

Dimension and Weight
Height	• 16.7" (424mm)
Width	• 7.6" (193mm)
Depth	• 20.68" (525.3mm)
Gross Weight	• 40 lbs (18.1 kg)
Available Colors	• Black

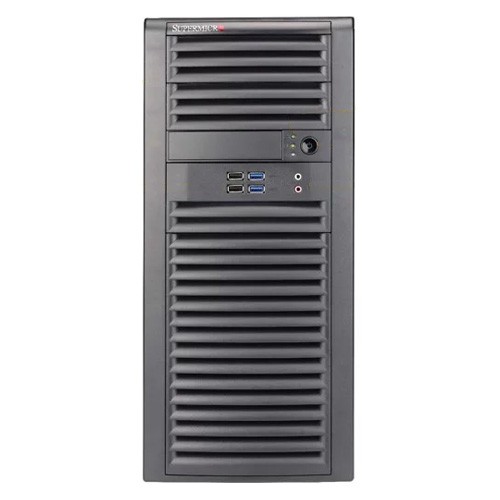

Front Panel
Buttons	• Power On/Off button
LEDs	• Power LED • Hard drive activity LED • Network activity LED • System Overheat LED
Ports	• 2x front USB 3.0 Ports • 2x front USB 2.0 Ports • 2x front HD/AC97 Audio Ports

Drive Bays
Internal	• 4x 3.5" SATA HDD Bays (90° rotatable drive cage) • Enterprise SATA HDD only recommended
Peripheral Bay	• 2x 5.25" standard drive bays • 1x 3.5" internal fixed drive bay

System Cooling
Fans	• 2x 12cm (1859rpm) cooling fans • Optimized cooling technology for Whisper-Quiet Operation
Heathsink	• Optional 2x Active CPU Heat Sink (SNK-P0050AP4)

Power Supply
	900W AC multi output power supply
AC Voltage	• 100-240 V, 50-60 Hz, 10-6 Amp
+5V Standby	• 3 Amp
+12V1	• 25 Amp
+12V2	• 25 Amp
+12V3	• 25 Amp
+12V4	• 25 Amp
+5V	• 25 Amp
+3.3V	• 25 Amp
-12V	• 0.5 Amp
Certification	• Gold Level

PC Health Monitoring
CPU	• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages • 6-Phase-switching voltage regulator
Fan	• 8x 4-pin fan headers (up to 8 fans) • 8x fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Monitoring for CPU and chassis environment • Thermal Control for 8x fan connectors • PECI

Operating Environment/Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
