Supermicro Mid-Tower SuperWorkstation SYS-5039A-iL

Call for price.

SKU:SYS-5039A-iL

Quick Overview:

Key Features:
• Single socket H4 (LGA 1151) supports Intel® Xeon® processor
• Intel® C236 chipset
• Up to 64GB; 4x DIMM slots
• 2 PCI-E 3.0 x16 (x16/NA or x8/x8),
2 PCI-E 3.0 x1 (in x4 slot),
2 PCI 32-bit slots
• 4 internal 3.5" HDD bays
• 500W High Efficiency Power Supply

Description

Details

Supermicro SuperWorkstation SYS5039A-iL

Product SKU
SuperWorkstation	• SYS-5039A-iL (Black)

Motherboard
	• Super X11SAE

Processor/Cache
CPU	• Single Socket H4 (LGA 1151) support • Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen Core™ i7/i5/i3, Intel® Pentium®, Intel® Celeron® processors • CPU TDP up to 95W
Note	• BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors

System Memory
Memory Capacity	• 4x 288-pin DDR4 DIMM slots • Up to 64GB DDR4 ECC/Non-ECC UDIMM
Memory Type	• 2400/2133/1866/1600MHz ECC/non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes	• 16GB, 8GB, 4GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel® C236 chipset
SATA	• SATA3 (6Gbps) via C236 controller • RAID 0, 1, 5, 10 support
Network Controllers	• Intel I210-AT + Intel PHY i219LM Ethernet Controllers • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics	• 1 HDMI, 1 DVI-D, 1 Display port (Triple Display)
Audio	• ALC 888S HD Audio

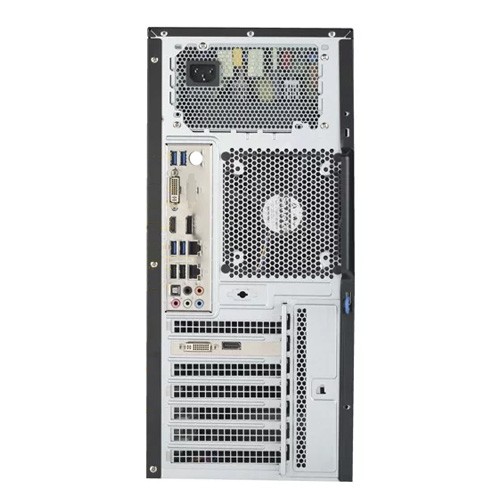

Input/Output
SATA	• 8 SATA3 (6Gbps) ports from Intel® C236; RAID 0, 1, 5, 10
LAN	• 2 RJ45 Gigabit Ethernet LAN ports
USB	• 6 USB 3.0 ports (2 rear + 4 via headers) • 8 USB 2.0 ports (2 rear + 6 via headers) • 2 USB 3.1 (rear)
Audio	• 7.1 HD Jacks
Display	• 1 HDMI, 1 DVI-D, 1 Display port (Triple Display); an Intel HD Graphics Integrated CPU is required for motherboard onboard video function
Serial Port/Header	• 2 COM ports (headers)

Expansion Slots
PCI-Express	• 2 PCI-E 3.0 x16 slots - Function as: x16/NA or x8/x8 • 2 PCI-E 3.0 x1 (in x4) slots
PCI	• 2 PCI 32-bit slots

System BIOS
BIOS Type	• 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	• Plug and Play (PnP) • APM 1.2 • DMI 2.3 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI

Chassis
Form Factor	• Mid-Tower
Model	• CSE-732D4-500B

Dimension and Weight
Height	• 16.7" (424mm)
Width	• 7.6" (193mm)
Depth	• 20.68" (525.3mm)
Gross Weight	• 40 lbs (18.1 kg)
Available Colors	• Black

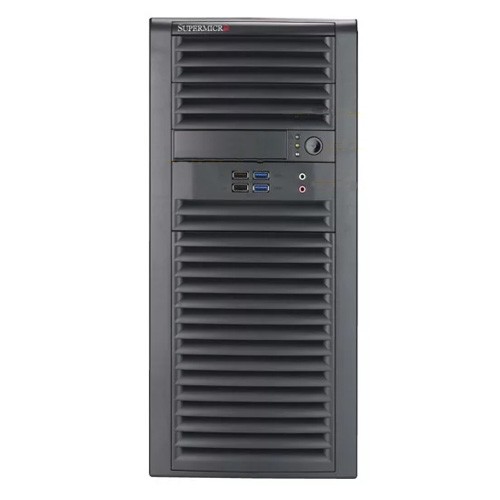

Front Panel
Buttons	• Power On/Off button
LEDs	• Power LED • Hard drive activity LED • Network activity LED • System Information LED
Ports	• 2 front USB 3.0 Ports • 2 front USB 2.0 Ports • 2 front HD/AC97 Audio Ports

Drive Bays
Internal	• 4 Internal 3.5" fixed drive bays
Peripheral	• 2x 5.25" peripheral device bays

System Cooling
Fans	• 1x 12cm rear exhaust fan with Optimal Fan Speed Control • Optimized cooling technology for Whisper-Quiet Operation (21dB)

Power Supply
	500W AC power supply w/ PFC
AC Voltage	• 100 - 240V, 50-60Hz, 7-3.5 Amp
+5V	• 20 Amp
+5V standby	• 3 Amp
+12V1	• 17 Amp
+12V2	• 17 Amp
+12V3	• 17 Amp
+12V4	• 18 Amp
-12V	• 0.5 Amp
+3.3V	• 15 Amp
Certification	• Bronze Certified

PC Health Monitoring
CPU	• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages • 6-Phase-switching voltage regulator
FAN	• Low noise fan speed control
Temperature	• Monitoring for CPU and chassis environment • Thermal Control for 8x fan connectors • PECI

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
