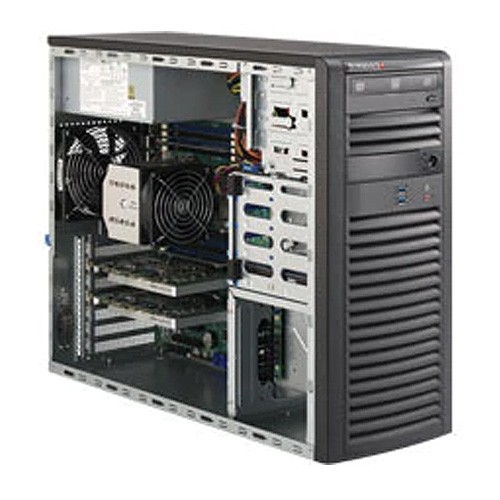

Supermicro Mid-Tower SuperWorkstation SYS-5038A-I

Supermicro SuperWorkstation SYS-5038A-I

Product SKU
SuperWorkstation	• SYS-5038A-I (Black)

Motherboard
	• Super X10SRA

Processor/Cache
CPU	• Intel® Xeon® processor E5-2600 v4†/ v3, E5-1600 v4†/ v3 family or Intel® Core™ i7 series (up to 160W TDP **) • Single Socket R3 (LGA 2011)
Core/Cache	• Up to 22 Cores† / Up to 55MB† Cache
	† BIOS version 2.0 or above is required
Notes	** Motherboard supports this maximum TDP. Please verify your system can thermally support

System Memory
Memory Capacity	• 8x 288-pin DDR4 DIMM slots • Up to 1TB ECC 3DS LRDIMM • Up to 512GB ECC LRDIMM • Up to 256GB ECC RDIMM • Up to 64GB DDR4 ECC/non-ECC UDIMM (available with Core i7 only)
Memory Type	• 2400†/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes	• 3DS LRDIMM: 128GB • LRDIMM: 64GB, 32GB • RDIMM: 32GB, 16GB, 8GB, 4GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel® C612 chipset
SATA	• SATA3 (6Gbps) via C612 controller • RAID 0, 1, 5, 10 support
Network Controllers	• Intel® i210-AT Dual Port Gigabit Ethernet • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio	• RealTek ALC1150 High Definition Audio

Input/Output
SATA	• 10x SATA3 (6Gbps) ports via PCH
LAN	• 2x RJ45 Gigabit Ethernet LAN ports
USB	• 8x USB 3.0 ports (2 front + 6 rear)
Audio	• 7.1 HD Jacks
Keyboard/Mouse	• 1x PS/2 Keyboard/Mouse port
Serial Port/Header	• 1x header
TPM	• 1x TPM 1.2 20-pin Header

Expansion Slots
PCI-Express	• 4x PCI-E 3.0 x16 slots (runs at 16/16/NA/8 or 16/8/8/8) • 2x PCI-E 2.0 x1 (in x4) slots PCI-E slot #1 supports (x4) and slot #4 (x16) is disabled when an Intel Core i7-5820K is installed

Expansion Slots

PCI-Express

• 4x PCI-E 3.0 x16 slots (runs at 16/16/NA/8 or 16/8/8/8)
• 2x PCI-E 2.0 x1 (in x4) slots

PCI-E slot #1 supports (x4) and slot #4 (x16) is disabled when an Intel Core i7-5820K is installed

System BIOS
BIOS Type	• 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	• Plug and Play (PnP) • APM 1.2 • DMI 2.3 • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • USB Keyboard support • Hardware BIOS Virus protection • SMBIOS 2.7.1 • UEFI 2.3.1 • RTC (Real Time Clock) Wakeup

Management
Software	• SuperDoctor® 5 • SuperDoctor® III • Watch Dog
Power Configuration	• ACPI Power Management • Keyboard Wakeup from Soft-Off • CPU Fan auto-off in sleep mode • Power-on mode for AC power recovery

Chassis
Form Factor	• Mid-Tower
Model	• CSE-732D3-903B

Front Panel
Buttons	• Power On/Off button
LEDs	• Power LED • Hard drive activity LED • Network activity LED • System Overheat LED
Ports	• 2x front USB 3.0 Ports • 2x front HD/AC97 Audio Ports

Drive Bays
Internal	• 4x 3.5" fixed drive bays • Enterprise SATA HDD only recommended
Peripheral	• 2x 5.25" peripheral drive bays • 1x card reader module

System Cooling
Fan	• 1x 12cm front cooling fan

Power Supply
	900W AC multi output power supply
AC Voltage	• 100-240 V, 50-60 Hz, 10-6 Amp
+5V Standby	• 3 Amp
+12V1	• 25 Amp
+12V2	• 25 Amp
+12V3	• 25 Amp
+12V4	• 25 Amp
+5V	• 25 Amp
+3.3V	• 25 Amp
-12V	• 0.5 Amp
Certification	• Gold Level
Note	• Max. continuous combined load on +3.3V and +5V output shall not exceed 155W • Max. continuous combined load on +12V1, +12V2, +12V3 and +12V4 output shall not exceed 860W

PC Health Monitoring
Voltage	• +12V, +3.3V, +5V, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, Chassis intrusion header, Monitors CPU voltages, VBAT
FAN	• Total of 5 fan headers supporting up to 5 fans • 5 fan headers with tachometer status monitoring • Status monitor for speed control • Status monitor for on/off control • Low noise fan speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Monitoring for CPU and chassis environment • CPU thermal trip support • I2C temperature sensing logic • Thermal Monitor 2 (TM2) support • PECI

Operating Environment/Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
