Details
|
Product SKU
| |
|---|---|

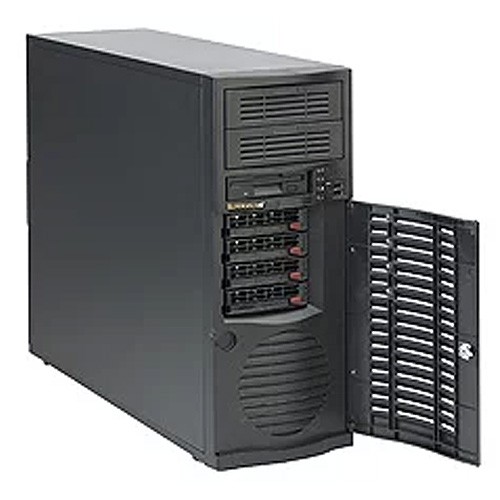

| SuperWorkstation | • 5036T-TB (Black) |
|
Motherboard
| |
|---|---|
| • Super X8SAX | |
| Processor/Cache
|
|
|---|---|
| CPU | • LGA 1366 Socket • Intel® Core™ i7 990X, i7-980X, i7-975 and i7-965 Extreme Edition • Intel® Core™ i7 series • Intel® Xeon® 5600/5500 series • Intel® Xeon® 3600/3500 series |
| System Bus | • QPI (up to 6.4 GT/s) |
|
System Memory
| |
|---|---|
| Memory Capacity | • Supports up to 24 GB 1333 / 1066 / 800MHz DDR3 ECC / non-ECC Un-Buffered memory • Three Channel memory bus • 6 DIMM sockets |
| Memory Type | • 1333 / 1066 / 800MHz Un- Buffered ECC / non-ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 256MB, 512MB, 1GB, 2GB, 4GB |
| Memory Voltage | • 1.5 V |
| Error Detection |
• Corrects single-bit errors |
|
On-Board Devices
| Chipset | • Intel® X58 Express chipset • ICH10R + PXH/V |
|---|---|
| SATA | • Intel ICH10R SATA 3.0Gbps Controller • RAID 0, 1, 5, 10 support |
| Network Controllers | • Dual Intel® 82574L Gigabit Ethernet Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Audio | • Realtek ALC883 7.1 HD audio |
| Super I/O | • Winbond 83627DHG chip |
| Clock Generator |
• CK505 |
|
Expansion Slots
| PCI-Express | • 2 (x16) PCI-e 2.0 slots • 1 (x4) PCI-e slot (using x8 slot) |
PCI-X | • 2x 64-bit 133/100MHz PCI-X (3.3V) slots | PCI | • 1x 32-bit PCI slot |
|---|
|
Input/Output
| Serial ATA | • 6 Serial ATA ports • 6 SATA hard drives supported |
Floppy | • 1 Floppy controller; 1.44 MB | LAN | • 2x RJ45 LAN ports |
|---|---|
| USB | • 8x USB rear ports • 2x USB on-board • 2x USB Front ports • Total 12 USB 2.0 Compliant |
| Audio | • Realtek ALC883 7.1 HD audio • 1x S/PDIF digital output |
| Keyboard/Mouse | • PS/2 keyboard and mouse ports |
| Serial Port/Header | • 2 Fast UART 16550 serial header |
|
System BIOS
| BIOS Type | • 4Mb SPI Flash EEPROM with AMI BIOS | BIOS Features |
• DMI 2.3 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 |
|---|
|
Chassis
| |
|---|---|
| Form Factor | • Mid-Tower |
| Model | • SC733TQ-465B |
|
Dimension and Weight
| |
|---|---|
| Height | • 16.8" (427 mm) |
| Width | • 7" (178 mm) |
| Depth | • 20.9" (531 mm) |
| Gross Weight | • 39 lbs (17.7 kg) |
| Available Colors | • Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button |
| LEDs | • Power LED |
| Ports |
• 2x Front side USB ports (USB 2.0 ready) |
|
Drive Bays
| |
|---|---|
| Hot-swap | • 4x 3.5" SATA hot-swap drive bays |
| Peripheral Bay |
• 2x 5.25" peripheral drive bay |
|
Peripheral Drives
| |
|---|---|
| Floppy |
• Teac Floppy Drive 3.5" 1.44MB (Optional) |
|
System Cooling
| |
|---|---|
| Fans | • 1x 9.2cm Front Thermal Fan |
|
SATA Backplane
| |
|---|---|
• 4 x 3.5" SATA Backplane |
|
|
Power Supply
| |
|---|---|
| 465W AC power supply w/ PFC | |
| AC Voltage | • 100 - 240V, 50-60Hz, 6-3 Amp |
| +5V |
• 20 Amp |
| +5V standby | • 3 Amp |
| +12V | • 35 Amp |
| -12V | • 0.5 Amp |
| +3.3V | • 15 Amp |
| Certification | • 80 PLUS Certified |
|
PC Health Monitoring
| |
|---|---|
| CPU |
• Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages. |
| FAN | • Total of six fan headers supporting up to 6 fans |
| Temperature | • Monitoring for CPU and chassis environment |
| LED | • CPU / System Overheat LED |
| Other Features | • Chassis intrusion detection |
