Supermicro Mid-Tower SuperWorkstation SYS-5036A-T

More Views

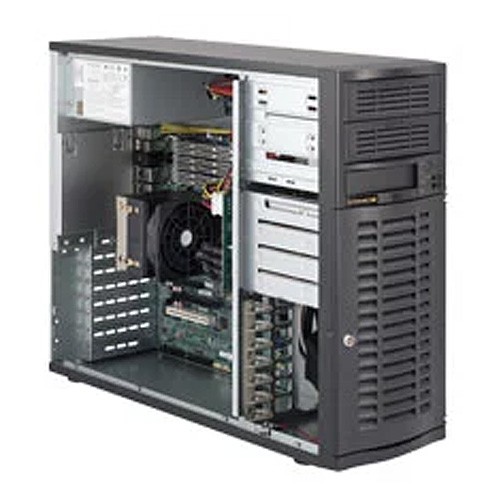

Supermicro Mid-Tower SuperWorkstation SYS-5036A-T

Description

Details

Supermicro SuperWorkstation SYS-5036A-T

Product SKU
Product SKUs SuperWorkstation	• 5036A-T (Black)

Motherboard
	• Super C7X58

Processor/Cache
CPU	• LGA 1366 Socket • Intel® Core™ i7 990X, i7-980X, i7-975 and i7-965 Extreme Edition • Intel® Core™ i7 series • Intel® Xeon® 5600/5500 series • Intel® Xeon® 3600/3500 series
System Bus	• QPI (up to 6.4 GT/s)

System Memory
Memory Capacity	• Supports up to 24 GB 1333 / 1066 / 800MHz DDR3 ECC / non-ECC Un-Buffered memory • Three Channel memory bus • 6 DIMM sockets
Memory Type	• 1600 / 1333 / 1066 / 800MHz Un- Buffered ECC / non-ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 256MB, 512MB, 1GB, 2GB, 4GB
Memory Voltage	• 1.5 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 and x8 Single Device Data Correction (SDDC)

On-Board Devices
Chipset	• Intel® X58 Express chipset • ICH10R
SATA	• Intel ICH10R SATA 3.0Gbps Controller • RAID 0, 1, 5, 10 support
Network Controllers	• Dual Intel® 82574L Gigabit Ethernet Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio	• Realtek ALC883 7.1 HD audio
Super I/O	• Winbond 83627DHG chip
Clock Generator	• CK505

Expansion Slots
PCI-Express	• 2 (x16) PCI-e 2.0 slots • 1 (x4) PCI-e slot (using x8 slot)
PCI	• 1 (x4) PCI-e slot (using x8 slot) PCI 1x 32-bit PCI slot

Input/Output
Serial ATA	• 6 Serial ATA ports • 6 SATA hard drives supported
LAN	• 2x RJ45 LAN ports
USB	• 8x USB rear ports • 2x USB on-board • 2x USB Front ports • Total 12 USB 2.0 Compliant
Audio	• 6x analog outputs • 1x S/PDIF digital output
Keyboard/Mouse	• PS/2 keyboard and mouse ports
Serial Port/Header	• 2 Fast UART 16550 serial header
IEEE 1394a	• 2x headers • 1x external connector

System BIOS
BIOS Type	• 4Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	• DMI 2.3 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3

Chassis
Form Factor	• Mid-Tower
Model	• SC733TQ-500B

Dimension and Weight
Height	• 16.8" (427 mm)
Width	• 7" (178 mm)
Depth	• 20.9" (531 mm)
Gross Weight	• 37.5 lbs (17.01 kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • Network activity LED • System Overheat LED
Ports	• 2x Front side USB ports (USB 2.0 ready)

Drive Bays
Hot-swap	• 4x 3.5" SATA hot-swap drive bays
Peripheral Bay	• 2x 5.25" peripheral drive bay • 1x 3.5" bay

System Cooling
Fans	• 1x 92x25mm 4-pin PWM front cooling fan (w/ housing) • 1x 120x25mm 4-pin PWM rear exaust fan

SATA Backplane
	• 4 x 3.5" SATA Backplane

Power Supply
	500W AC power supply w/ PFC
AC Voltage	• 100 - 240V, 50-60Hz, 7-3.5 Amp
+5V	• 20 Amp
+5V standby	• 3 Amp
+12V1	• 17 Amp
+12V2	• 17 Amp
+12V3	• 17 Amp
+12V4	• 18 Amp
-12V	• 0.5 Amp
+3.3V	• 15 Amp
Certification	• Bronze Certified

PC Health Monitoring
CPU	• Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages. • 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN	• Total of six fan headers supporting up to 6 fans • Six 4-pin fan headers • 6x fans with tachometer status monitoring • Status monitor for speed control • Status monitor for on/off control • Support 3-pin fans (w/o speed control) • Low noise fan speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Monitoring for CPU and chassis environment • CPU thermal trip support • FC temperature sensing logic • Thermal Monitor 2 (TM2) support • PECI
LED	• CPU / System Overheat LED • Suspend-state indicator LED • +5V Standby alert LED
Other Features	• Chassis intrusion detection • Chassis intrusion header

Operating Environment
Environmental Spec.	• Operating Temperature: 10° to 35°C (50° to 95°F) • Non-operating Temperature: -40° to 70°C (-40° to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5 to 95% (non-condensing)
