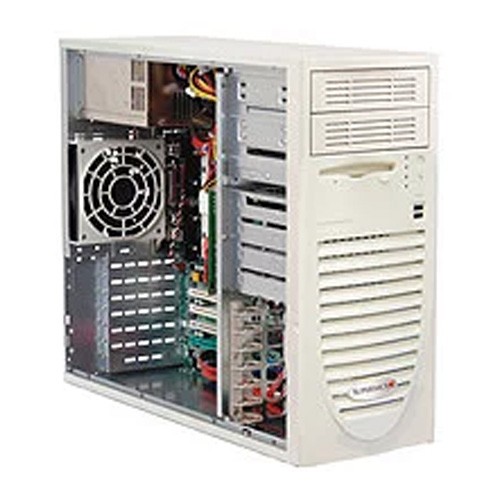

Supermicro Mid-Tower SuperServer SYS-7034L-i

More Views

  • Supermicro Mid-Tower SuperServer SYS-7034L-i

Supermicro Mid-Tower SuperServer SYS-7034L-i

Call for price.
SKU:SYS-7034L-i

Quick Overview:

Key Features:
• Dual Intel® Dual Core Xeon® Processor
• Up to 16GB DDR2 400 SDRAM
• Intel® 82573V and 82573L Gigabit Ethernet Controllers
• 1 x Drive Carrier for up to 4 HDD
• 450W Power Supply


Details

Supermicro SuperServer 7034L-i

Product SKU
SYS-7034L-i • SuperServer 7034L-i (Beige)
SYS-7034L-iB • SuperServer 7034L-iB (Black)
Product SKU
SYS-7034L-i • A+ Server 7034L-i (Beige)
SYS-7034L-iB • A+ Server 7034L-i (Black)
Motherboard
  • Super X6DLP-EG2
Processor/Cache
CPU • Dual 479-pin FC-mPGA4 Sockets
• Dual Core Xeon Processor LV (Low Voltage / Low Power) CPUs (31W) up to 2.5GHz
• (2x1MB) L2 Integrated Advanced Transfer Cache
System Bus • 667 MHz system bus
OS Software • Supports 32-bit Operating Systems
System Memory
Memory Capacity • Eight 240-pin DIMM slots
• Supports up to 16 GB DDR2 400 MHz memory
• Dual channel memory bus
• Memory must be populated in pairs
Memory Type

• DDR2 400MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes

• 256 MB, 512 MB, 1GB, 2GB
Memory Voltage

• 1.8V only
Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 Single Device Data Correction (SDDC)
On-Board Devices
Chipset • Intel® E7520 chipset
• MCH + 6300ESB + 82573V/L
SATA • 6300ESB SATA Controller (2x Drive support)
• 2x SATA Ports
• SATA HostRAID 0, 1 support
IPMI • Support for Intelligent Platform Management Interface v. 2.0
• (Optional: AOC-IPMI20-E)
Network Controllers

• Intel® 82573V and 82573L Single Port Gigabit Controllers
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Graphics

• ATI Rage XL SVGA PCI video controller with 8 MB of video memory
Super I/O

• Winbond 83627HF chip
Clock Generator

• ICS9DB108BFT chip
Expansion Slots
PCI-Express • 1 (x8) PCI-E slot
PCI-X • 2x 64-bit 66MHz PCI-X (3.3V) slots
PCI • 1x 32-bit 33MHz PCI (5V) slot
Input/Output
Serial ATA • Two Serial ATA ports
• Two SATA hard drives supported
IDE • Dual EIDE channels support up to four UDMA / IDE devices
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy • 1 Floppy controller; 1.44 MB support
LAN • 2x RJ45 LAN ports
USB • 2x USB rear ports
• 1x USB internal headers for 2 ports
• USB 2.0 Compliant / 1.1 Compliant
VGA • 1x VGA port
Keyboard/Mouse • PS/2 keyboard and mouse ports
Serial Ports • 1 Fast UART 16550 serial port
• 1 header
Parallel Port • 1 ECP / EEP parallel port header
System BIOS
BIOS Type • IOS BIOS Type 8Mb Flash EEPROM with AMI® BIOS
• SST
BIOS Features • Plug and Play (PnP)
• SMBIOS 2.3
• APM 1.2
• DMI 2.3
• DMI 2.3 PCI 2.2
• ACPI 1.0
• BIOS Rescue hot keys
• USB Keyboard support
• Hardware BIOS Virus protection
Chassis
Form Factor • Mid-Tower
Model • SC733i-450
Dimension and Weight
Height • 7" (178 mm)
Width • 16.8" (427 mm)
Depth • 20.9" (531 mm)
Gross Weight • 39 lbs (17.7 kg)
Available Colors • Beige, Black
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs

• Power LED
• Hard drive activity LED
• Network activity LED
• System Overheat LED
Ports

• 2x Front side USB ports (USB 2.0 ready)
Drive Bays
Drive Carrier

• 1x IDE Drive Carrier (capacity for up to 4 Hard Disk Drives)
Peripheral Bay

• 2x 5.25" peripheral drive bay
• 1x 3.5" bay for floppy drive
Peripheral Drives
Floppy

• TEAC 3.5" 1.44MB Floppy Drive
System Cooling
Fans

• 1x 12cm exhaust fan (thermal control)
• 1x 9cm cooling fan (thermal control)
Power Supply
  450W low-noise AC power supply with redundant cooling feature (with PFC)
AC Voltage • 100 - 240V, 50/60Hz, 10 Amp
DC Output
 • 5V + 3.3V ≤ 160W
• 12V + 5V + 3.3V ≤ 430W
+5V • 30.0 Amp
+5V standby • 2.0 Amp
+12V • 34.0 Amp
-12V • 1.0 Amp
+3.3V • 30.0 Amp
PC Health Monitoring
CPU

• Monitors for CPU Cores (+1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT)
• CPU Core 3-Phase-switching voltage regulator with auto-sense from 1.2V-1.3V
FAN

• Total of six 4-pin fan headers
• 6 fans with status tachometer monitoring
• Status monitor with firmware/software on/off control
• Support both 4-pin and 3-pin fans
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connector
Temperature

• Monitoring for CPU and chassis, environment
• CPU thermal trip support
• Thermal Control for 6x Fan Connectors
• I2C temperature sensing logic
• Thermal Monitor 2 (TM2) support
LED

• CPU / System Overheat LED
• CPU / System Overheat LED +5V Standby alert LED
• Suspend-state indicator LED
Other Features

• Chassis intrusion detection
• Chassis intrusion header
• SDDC support
