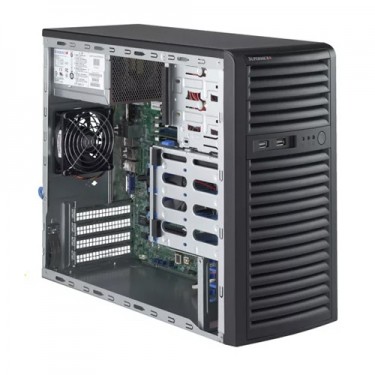

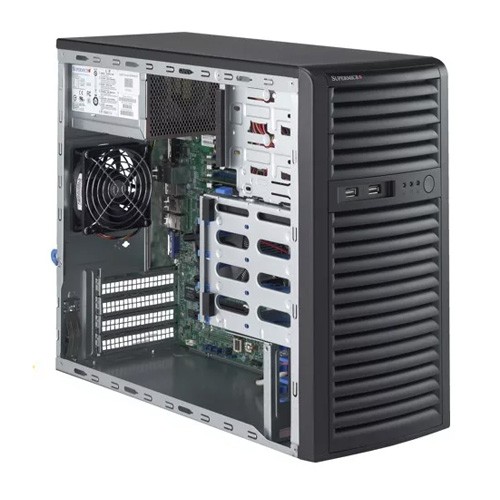

Supermicro Mid-Tower SuperServer SYS-5039D-i

Call for price.

SKU:SYS-5039D-i

Quick Overview:

Key Features:
• Single socket H4 (LGA 1151) Intel® Xeon® processor
• Intel® C232 chipset
• Up to 64GB memory; 4x DIMM slots
• 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x8, and
1 PCI-E 3.0 x4 (in x8 slot)
• 4 Fixed 3.5" drive bays + 2 External 5.25" drive bays
• 300W High-efficiency Power Supply

Description

Details

Supermicro SuperServer SYS5039D-i

Product SKU
SuperServer	• SYS-5039D-i (Black)

Motherboard
	• Super X11SSL-F

Processor/Cache
CPU	• Single Socket H4 (LGA 1151) supports • Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen Core™ i3, Intel® Pentium®, Intel® Celeron® processors • CPU TDP up to 80W
Note	• BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors

System Memory
Memory Capacity	• 4x 288-pin DDR4 DIMM slots • Up to 64GB DDR4 ECC UDIMM
Memory Type	• 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes	• 16GB, 8GB, 4GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel® C232 chipset
SATA	• SATA3 (6Gbps) via C232 controller • RAID 0, 1, 5, 10 support
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Controllers	• Dual Intel® I210-AT Gigabit Ethernet LAN ports • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
VGA	• ASPEED AST2400 BMC

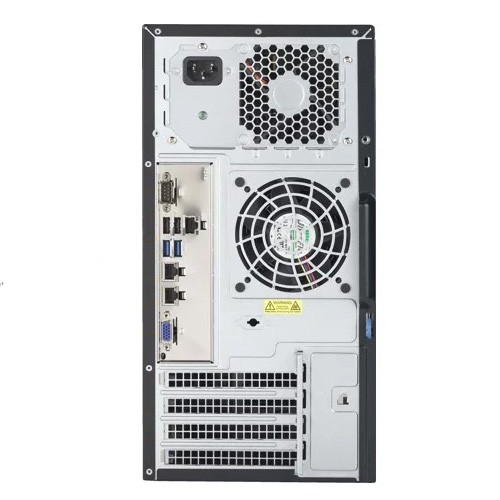

Input/Output
SATA	• 6 SATA3 (6Gbps) ports
LAN	• 2 RJ45 Gigabit Ethernet LAN ports • 1 RJ45 Dedicated IPMI LAN port
USB	• 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A) • 6 USB 2.0 ports (2 rear + 4 via headers)
VGA	• 1 VGA port
Serial Port/Header	• 1 COM port (1 rear)

Expansion Slots
PCI-Express	• 1 PCI-E 3.0 x8 (in x16 slot) • 1 PCI-E 3.0 x8 slot • 1 PCI-E 3.0 x4 (in x8 slot)

System BIOS
BIOS Type	• 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	• Plug and Play (PnP) • APM 1.2 • DMI 2.3 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI

Chassis
Form Factor	• Mid-Tower
Model	• CSE-731i-300B

Dimension and Weight
Height	• 14.25" (362mm)
Width	• 7.25" (184mm)
Depth	• 16.75" (425mm)
Gross Weight	• 40 lbs (18.1 kg)
Available Colors	• Black

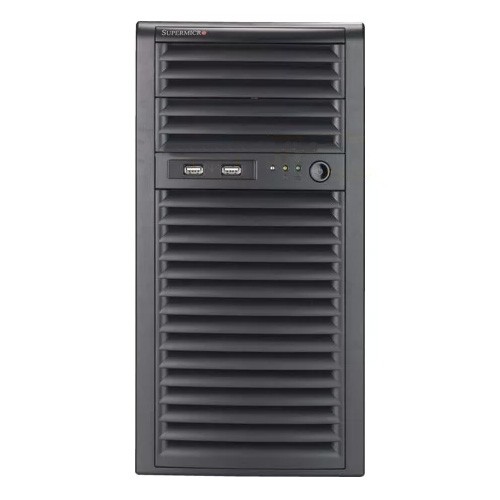

Front Panel
Buttons	• Power On/Off button
LEDs	• Power LED • Hard drive activity LED • Network activity LED • System Overheat LED
Ports	• 2x Front side USB ports

Drive Bays
Internal	• 4 Fixed 3.5" drive bays • Enterprise SATA HDD only recommended
External	• 2 External 5.25" drive bays

System Cooling
Fans	• 1x 9cm (rear) PWM fan w/ tool-less design • 1x 8cm (front) cooling fan (optional) • Optimized Cooling Technology at 25dB Whisper-Quiet Operation

Power Supply
	300W AC power supply w/ PFC
AC Voltage	• 100 - 240V, 50-60Hz, 5 Amp
DC Output	• 5V + 12V + 3.3V - 12V < 290W
+5V	• 19 Amp
+5V standby	• 2.0 Amp
+12V	• 11 Amp + 11.5 Amp
-12V	• 0.15 Amp
+3.3V	• 16.0 Amp
Certification	• Bronze Certified

PC Health Monitoring
CPU	• Monitors for CPU Cores, +12V, +3.3V, +5V, +5V Standby, VBAT, Memory, Chipset Voltages • 6-Phase-switching voltage regulator
FAN	• Low noise fan speed control
Temperature	• Monitoring for CPU and chassis environment • Thermal Control for 8x fan connectors • PECI

Operating Environment/Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
