Supermicro MId-Tower SuperServer SYS-5038D-I

Call for price.

SKU:SYS-5038D-I

Quick Overview:

Key Features:
• Tower Server
• Single socket H3 (LGA 1150) Intel® Xeon
• Intel® C222 Express PCH
• Up to 32GB of memory in a 4 socket slot
• 1 (x8) PCI-E 3.0 in x16,
1 (x8) PCI-E 3.0, and
1 (x4) PCI-E 2.0 in x8 slots
• 4x 3.5" tool-less HDD trays + 2x 5.25" drive bays
• 300W High-efficiency Power Supply

Description

Details

Supermicro SuperServer SYS-5038D-I

Product SKU
SuperServer	• SYS-5038D-I (Black)

Motherboard
	• Super X10SLL-F

Processor/Cache
CPU	• Intel® Xeon® processor E3-1200 v3 and 4th Gen Core i3, Pentium, Celeron processors • Single Socket H3 (LGA 1150)

System Memory
Memory Capacity	• 4x 240-pin DDR3 DIMM slots • Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type	• 1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 8GB, 4GB, 2GB, 1GB
Memory Voltage	• 1.5V, 1.35V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel® C222 Express PCH
SATA	• SATA3 (6Gbps) w/ RAID 0, 1 • SATA2 (3Gbps) w/ RAID 0, 1, 5, 10
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 with 10/100/1000Mbps
Network Controllers	• Intel® i217LM + Intel® i210AT Controllers • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201N PHY (dedicated IPMI)
VGA	• BMC integrated ASPEED AST2400

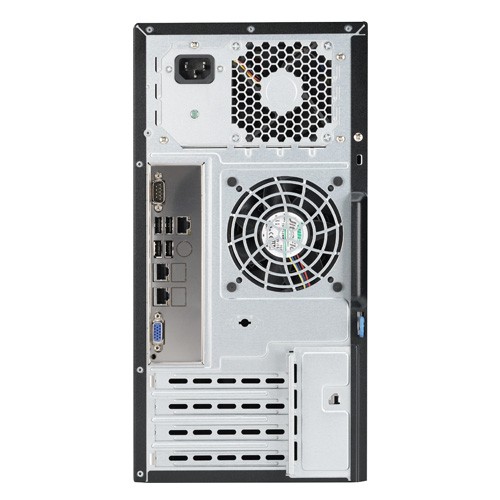

Input/Output
SATA	• 2x SATA3 (6Gbps) ports • 4x SATA2 (3Gbps) ports
LAN	• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 2x USB 3.0 ports (1 Type-A, 1 via header) • 6x USB 2.0 ports (4 rear, 2 via header)
VGA	• 1x VGA D-Sub Connector
Serial Port / Header	• 2x COM ports (1 rear, 1 header)

Expansion Slots
PCI-Express	• 1 (x8) PCI-E 3.0 in x16 slot • 1 (x8) PCI-E 3.0 slot • 1 (x4) PCI-E 2.0 in x8 slot

System BIOS
BIOS Type	• 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	• Plug and Play (PnP) • APM 1.2 • DMI 2.3 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI

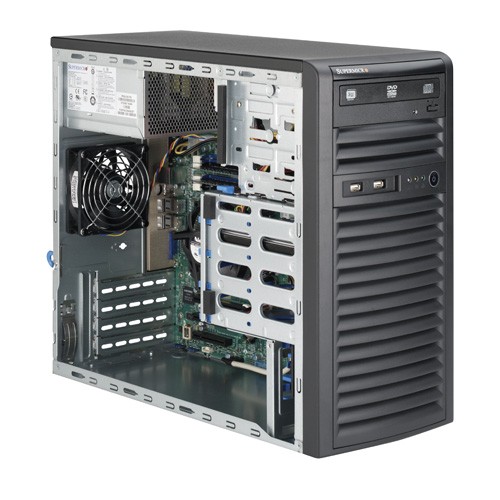

Chassis
Form Factor	• Mid-Tower
Model	• CSE-731i-300B

Dimension and Weight
Height	• 14.25" (362mm)
Width	• 7.25" (184mm)
Depth	• 16.75" (425mm)
Gross Weight	• 40 lbs (18.1 kg)
Available Colors	• Black

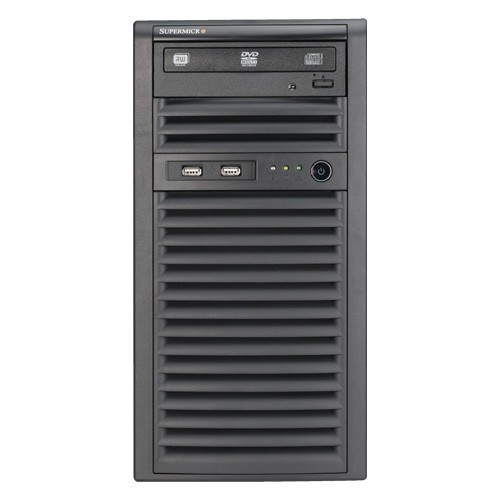

Front Panel
Buttons	• Power On/Off button
LEDs	• Power LED • Hard drive activity LED • Network activity LED • System Overheat LED
Ports	• 2x Front side USB ports

Drive Bays
Internal	• 4x 3.5" tool-less HDD trays • Enterprise SATA HDD only recommended
External	• 2x 5.25" external drive bays

System Cooling
Fans	• 1x 9cm (rear) PWM fan w/ tool-less design • 1x 8cm (front) cooling fan (optional) • Optimized Cooling Technology at 25dB Whisper-Quiet Operation

Power Supply
	300W AC power supply w/ PFC
AC Voltage	• 100 - 240V, 50-60Hz, 5 Amp
DC Output	• 5V + 12V + 3.3V - 12V < 290W
+5V	• 13 Amp
+5V standby	• 2.0 Amp
+12Va + +12Vb	• 12 Amp + 16 Amp (total: 216W)
-12V	• 0.3 Amp
+3.3V	• 12.0 Amp
Certification	• Bronze Certified

PC Health Monitoring
CPU	• Monitors for CPU Cores, +12V, +3.3V, +5V, +5V Standby, VBAT, Memory, Chipset Voltages • 6-Phase-switching voltage regulator
FAN	• Low noise fan speed control
Temperature	• Monitoring for CPU and chassis environment • Thermal Control for 8x fan connectors • PECI

Operating Environment/Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
