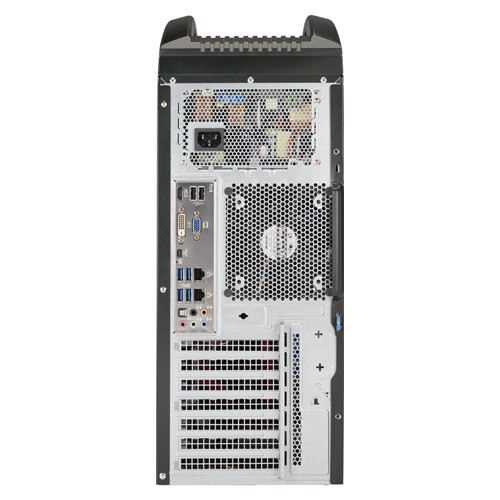

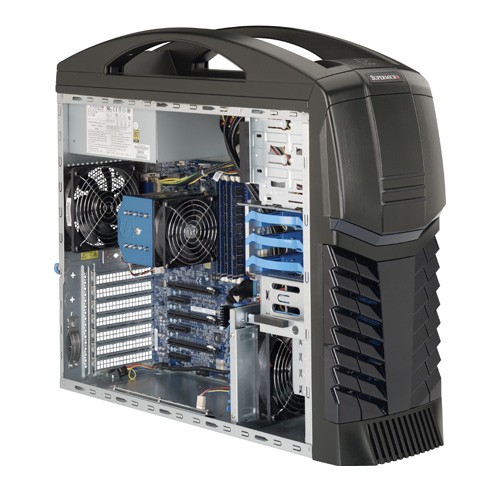

Supermicro Mid-Tower SuperServer SYS-5038AD-T

Call for price.

SKU:SYS-5038AD-T

Quick Overview:

Key Features:
• Gaming System
• Triple Display Support
• Single socket H3 (LGA 1150) Intel® 4th gen. Core i7/i5/i3 processors
• Up to 32GB of memory in 4 socket slots
• 3x Preset Overclocking Buttons (OC 15%, OC 23%, OC TBD)
• 3x 3.5" Hot-swap Internal Drive Bays
2x 3.5" Hot-swap External Drive Bays Optional
4x 2.5" Hot-swap External
• 900W High Efficiency Power Supply

Description

Details

Supermicro SuperWorkstation SYS-5038AD-T

Product SKU
SuperWorkstation	• SYS-5038AD-T (Black)

Motherboard
	• Super C7Z87-OCE

Processor/Cache
CPU	• Intel® 4th Gen Core i7/i5/i3 processors • Single Socket H3 (LGA 1150)

System Memory
Memory Capacity	• 4x 240-pin DDR3 DIMM slots • Supports up to 32GB DDR3 Non-ECC Un-Buffered memory (UDIMM)
Memory Type	• 1600MHz non-ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs • Support overclocking up to 2133MHz* / 2200MHz* / 2400MHz* / 2600MHz* / 2800MHz* / 3000MHz* * Please check the operation manual for supported components
DIMM Sizes	• 8GB, 4GB, 2GB, 1GB
Memory Voltage	• 1.5V, 1.35V

On-Board Devices
Chipset	• Intel® Z87 Chipset
SATA	• SATA3 via PCH w/ RAID 0, 1, 5, 10 • SATA3 via ASM1061®
Network Controllers	• Intel® i217V + Intel® i210AT Controllers • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio	• RealTek ALC1150 High Definition Audio

Input/Output
SATA	• 6x SATA3 (6Gbps) ports via PCH • 2x SATA3 (6Gbps) ports via ASM1061® • Total of 8x SATA3 ports (6Gbps)
LAN	• 2x RJ45 Gigabit Ethernet LAN ports
USB	• 6x USB 3.0 ports (2 front, 4 rear) • 4x USB 2.0 ports (2 front, 2 rear)
Audio	• 7.1 HD Audio by Realtek ALC1150
Display	• 1x VGA, 1x HDMI, 1x DVI, 1x Thunderbolt (DP1.1), Triple display support
Serial Port/Header	• 1x COM port (header)

Expansion Slots
PCI-Express	• 3 (x16) PCI-E 3.0 slots - Function as: 16/NA/NA or 8/8/NA or 8/4/4 • 3 (x1) PCI-E 2.0 in x4 slots

System BIOS
BIOS Type	• 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	• DMI (SMBIOS) 2.7 • ACPI 5.0 • USB Keyboard support

Chassis
Form Factor	• Mid-Tower
Model	• CSE-732G-903B

Dimension and Weight
Height	• 20.08" (510mm)
Width	• 8.66" (220mm)
Depth	• 22.83" (580mm)
Gross Weight	• 35 lbs (15.87 kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button
LEDs	• Power LED • Hard drive activity LED • Network activity LED • System Overheat LED
Ports	• 2x front USB 3.0 Ports • 2x front USB 2.0 Ports • 1x front HD/AC97 Audio Port • 1x eSATA Port

Drive Bays
Hot-swap	• 3x 3.5" Hot-swap Internal Drive Bays • 2x 3.5" Hot-swap External Drive Bays • Optional 4x 2.5" Hot-swap External Drive Bay Cage
Peripheral	• 2x 5.25" Peripheral Drive Bays • 1x 3.5" Device Bay

System Cooling
Fans	• 1x 12cm rear exhaust fan • 1x 12cm front cooling fan
Others	• Liquid cooling supported

Power Supply
	900W AC multi output power supply
AC Voltage	• 100-240 V, 50-60 Hz, 10-6 Amp
+5V Standby	• 3 Amp
+12V1	• 25 Amp
+12V2	• 25 Amp
+12V3	• 25 Amp
+12V4	• 25 Amp
+5V	• 25 Amp
+3.3V	• 25 Amp
-12V	• 0.5 Amp
Certification	• Gold Level
Note	• Max. continuous combined load on +3.3V and +5V output shall not exceed 155W. • Max. continuous combined load on +12V1, +12V2, +12V3 and +12V4 output shall not exceed 860W.

PC Health Monitoring
CPU	• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages • 6-Phase-switching voltage regulator
FAN	• Low noise fan speed control
Temperature	• Monitoring for CPU and chassis environment • Thermal Control for 8x fan connectors • PECI

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
