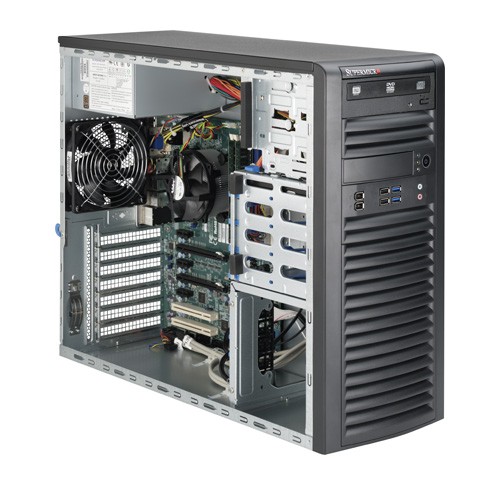

Supermicro Mid-Tower SuperServer SYS-5038A-iL - Angle

More Views

  • Supermicro Mid-Tower SuperServer SYS-5038A-iL - Angle
  • Supermicro Mid-Tower SuperServer SYS-5038A-iL - Front
  • Supermicro Mid-Tower SuperServer SYS-5038A-iL - Rear

Supermicro Mid-Tower SuperServer SYS-5038A-iL

Call for price.
SKU:SYS-5038A-iL

Quick Overview:

Key Features:
• Single socket H3 (LGA 1150) Intel® Xeon
• Intel® C226 Express PCH
• Up to 32GB of memory in 4 socket
• 2x PCI-E 3.0 x16 (x16/NA or x8/x8),
   3x PCI-E 2.0 x1, 2x PCI 32-bit slots
• 4x 3.5" internal SAS/SATA HDD Bays
• 500W High Efficiency Power Supply


Details

Supermicro SuperServer SYS-5038A-iL

Product SKU
SuperWorkstation • SYS-5038A-iL (Black)
Motherboard
  • Super X10SAE
Processor/Cache
CPU • Intel® Xeon® processor E3-1200 v3/v4 and 4th/5th Gen Core i7/i5/i3, Pentium, Celeron processors
• Single Socket H3 (LGA 1150)
• A Graphic Integrated CPU is required to have the on-board video functioned. Examples: E3-1265L v3, E3-1275 v3*
System Memory
Memory Capacity • 4x 240-pin DDR3 DIMM slots
• Supports up to 32GB DDR3 ECC/Non-ECC Un-Buffered memory (UDIMM)
Memory Type

• 1600MHz ECC/non-ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes

• 8GB, 4GB, 2GB, 1GB
Memory Voltage

• 1.5V, 1.35V
Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset • Intel® C226 Express PCH
SATA • SATA3 via PCH w/ RAID 0, 1, 5, 10
• SATA3 via ASM1061®
Network Controllers • Intel® i217LM + Intel® i210AT Controllers
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio

• RealTek ALC1150 High Definition Audio
Input/Output
SATA • 6x SATA3 (6Gbps) ports via PCH
• 2x SATA3 (6Gbps) ports via ASM1061®
• Total of 8x SATA3 ports (6Gbps)
LAN • 2x RJ45 Gigabit Ethernet LAN ports
USB • 6x USB 3.0 ports (2 rear, 4 via headers)
• 10x USB 2.0 ports (4 rear, 6 via headers)
Audio • 7.1 HD Jacks
Display* • 1x VGA, 1x HDMI, 1x DVI, 1x Display port (Triple Display)
Serial Port / Header • 2x COM ports (headers)
Expansion Slots
PCI-Express • 2x PCI-E 3.0 x16 slots - Function as: 16/NA or 8/8
• 3x PCI-E 2.0 x1 (in x4) slots
PCI

• 2x PCI 32-bit slots
System BIOS
BIOS Type • 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features












 • Plug and Play (PnP)
• APM 1.2
• DMI 2.3
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI
Chassis
Form Factor • Mini-Tower
Model • CSE-732D4F-500B
Dimension and Weight
Height • 16.7" (424mm)
Width • 7.6" (193mm)
Depth • 20.68" (525.3mm)
Gross Weight • 40 lbs (18.1 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
LEDs

• Power LED
• Hard drive activity LED
• Network activity LED
• System Overheat LED
Ports

• 2x front USB 3.0 Ports
• 2x front USB 2.0 Ports
• 2x front 1394a Ports
• 2x front HD/AC97 Audio Ports
Drive Bays
Internal

• 4x 3.5" SAS/SATA HDD Bays (90° rotatable drive cage)
• Enterprise SATA HDD only recommended
Peripheral

• 2x 5.25" peripheral drive bays
System Cooling
Fans

• 1x 12cm rear exhaust fan with Optimal Fan Speed Control
• Optimized cooling technology for Whisper-Quiet Operation
Power Supply
  500W AC power supply w/ PFC
AC Voltage • 100 - 240V, 50-60Hz, 7-3.5 Amp
+5V
 • 20 Amp
+5V standby • 3 Amp
+12V1 • 17 Amp
+12V2 • 17 Amp
+12V3 • 17 Amp
+12V4 • 18 Amp
-12V • 0.5 Amp
+3.3V • 15 Amp
Certification • Bronze Certified
PC Health Monitoring
CPU

• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
• 6-Phase-switching voltage regulator
FAN

• Low noise fan speed control
Temperature

• Monitoring for CPU and chassis environment
• Thermal Control for 8x fan connectors
• PECI
Operating Environment/Compliance
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
