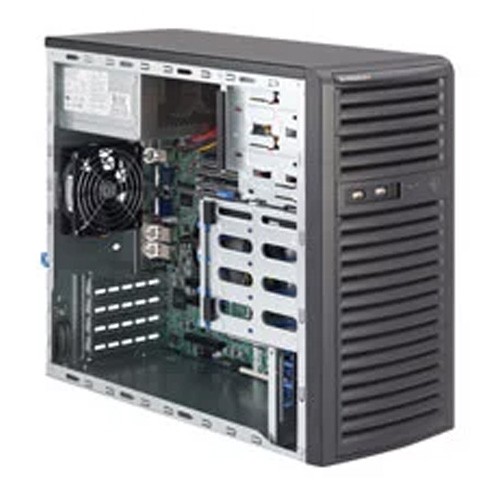

Supermicro Mid-Tower SuperServer SYS-5037C-i

More Views

  • Supermicro Mid-Tower SuperServer SYS-5037C-i

Supermicro Mid-Tower SuperServer SYS-5037C-i

Call for price.
SKU:SYS-5037C-i

Quick Overview:

Key Features:
• Single socket H2 (LGA 1155) Intel® Xeon
• Up to 32GB of memory in 4 socket
• 2x Gigabit Ethernet LAN ports
• 9x USB 2.0 ports
• 2x 5.25" external drive bays
• 300W High-efficiency Power Supply


Details

Supermicro SuperServer 5037C-i

Product SKU
SuperServer • SYS-5037C-i (Black)
Motherboard
  • Super X9SCL
Processor/Cache
CPU • Intel® Xeon® processor E3-1200 & v2 series, Intel® 2nd Gen and 3rd Gen Core i3, Intel® Pentium® and Celeron processors *
• Socket H2 (LGA 1155)
System Memory
Memory Capacity • 4x 240-pin DDR3 DIMM slots
• Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type

• 1600*/1333/1066MHz ECC DDR3, 240-pin gold-plated DIMMs
DIMM Sizes

• 8GB, 4GB, 2GB, 1GB
Memory Voltage

• 1.5 V
Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset • Intel® C202 PCH chipset
SATA • 6x SATA 2.0 (3Gbps) w/ RAID 0, 1, 5, 10
Network Controllers • Intel® 82579LM and 82574L, 2x Gigabit LAN ports
• Virtual Machine Device Queues High efficient I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Intel® I/OAT 3 support for fast, scaleable, and reliable networking
• VMDq support for better performance of virtualization
Graphics

• Matrox G200eW 16MB DDR2
Super I/O

• Nuvoton NCT6776F
BMC

• Nuvoton WPCM450RA0BX
Expansion Slots
PCI-Express • 2 PCI-E 3.0* x8 slots
• 1 PCI-E 2.0 x4 in x8 slot
Input/Output
Serial ATA • 6 SATA 2.0 ports
• 6 SATA hard drives supported
LAN • 2x RJ45 LAN ports
USB • 2x USB rear ports
• 1x USB Type-A
• 6x USB ports via header
• Total 9 USB 2.0 Compliant
VGA • 1x VGA port
Serial Port/Header • 2x Fast UART 16550 serial port (one header and one rear port)
System BIOS
BIOS Type • 32Mb SPI Flash EEPROM with AMI BIOS
BIOS Features











 • DMI 2.3
• PCI 2.3
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
Chassis
Form Factor • Mid-Tower
Model • CSE-731i-300B
Dimension and Weight
Height • 14.25" (362 mm)
Width • 7.25" (184 mm)
Depth • 16.75" (425 mm)
Gross Weight • 23.5 lbs (10.66 kg)
Available Colors • Black
Front Panels
Buttons

• Power On/Off button
• System Reset button
LEDs

• Power LED
• Hard drive activity LED
• Network activity LED
• System Overheat LED
Ports

• 2x Front side USB ports (USB 2.0 ready)
Drive Bays
Internal

• 4x 3.5" tool-less HDD trays
• Enterprise SATA HDD only recommended
External

• 2x 5.25" external drive bays
• 1x 3.5" external drive bay (OEM option)
System Cooling
Fans

• 1x 9cm (rear) PWM fan w/ tool-less design
• 1x 8cm (front) cooling fan (optional)
• Optimized Cooling Technology at 25dB Whisper-Quiet Operation
Power Supply
  300W AC power supply w/ PFC
AC Voltage • 100 - 240V, 50-60Hz, 5 Amp
DC Output
 • 5V + 12V + 3.3V - 12V < 290W
+5V • 13 Amp
+5V standby • 2.0 Amp
+12Va +
+12Vb		 • 12 Amp + 16 Amp (total: 216W)
-12V • 0.3 Amp
+3.3V • 12.0 Amp
Certification • Bronze Certified
PC Health Monitoring
CPU

• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages
• 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V

FAN

• Total of 5 fan headers supporting up to 5 fans
Temperature

• Monitoring for CPU and chassis environment
• Thermal Control for 5x fan connectors
• PECI
Operating Environment
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
