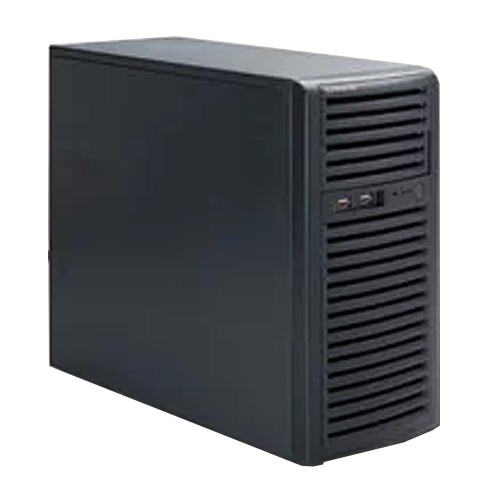

Supermicro Mid-Tower SuperServer SYS-5035L-IB

More Views

  • Supermicro Mid-Tower SuperServer SYS-5035L-IB

Supermicro Mid-Tower SuperServer SYS-5035L-IB

Call for price.
SKU:SYS-5035L-IB

Quick Overview:

Key Features:
• Single LGA775 ZIF Socket; supports Intel Core2 Duo
• Up to 2GB dual channel unbuffered memory
• 1 (x16) PCI-E, 1 (x4) PCI-E (in x8)
   2x 32-bit 33MHz PCI slot
• 2x Realtek RTL8111C-GR Gigabit LAN Ports
• 2x 5.25" external drive bays,
  4x 3.5" internal drive bays
• 300W High-Efficiency, Low-noise Power Supply


Details

Supermicro SuperServer SYS-5035L-IB

Product SKU
SYS-5035L-IB • SuperServer 5035L-IB (Black)
Motherboard
  • Super X7SLM-L
Processor/Cache
CPU • Single LGA775 ZIF Socket
• Supports an Intel® Core™2 Duo E4000 Series
• Supports an Intel® Pentium® E2000 Series
• Supports an Intel® Pentium® D 945, 935, 925, 915 and 820, 805
• Supports an Intel® Pentium® 4 600 and 500 Series
• Supports an Intel® Celeron® E1000 Series
• Supports an Intel® Celeron® 400 Series
• Supports an Intel® Celeron® D 300 Series
System Bus • 1066 / 800 / 533 MHz system bus
System Memory
Memory Capacity • Two 240-pin DIMM sockets
• Supports up to 2 GB of unbuffered, non-ECC DDR2 667/533/400MHz memory (Single / Dual Channel)
Memory Type

• DDR2 667/533/400MHz unbuffered, non-ECC SDRAM, 240-pin gold-plated DIMMs
DIMM Sizes

• 256 MB, 512 MB, 1 GB
Memory Voltage

• 1.8V only
On-Board Devices
Chipset • Intel 945GC + ICH7R
• Realtek RTL8111C-GR
SATA • Intel ICH7R SATA 3.0Gbps Controller
• RAID 0, 1, 5, 10 support
Network Controllers • 2x Realtek RTL8111C-GR Gigabit Ethernet
• Supports 10BASE-T, 100/1000BASE-TX, RJ45 output
Graphics

• Onboard GMA950 video
Super I/O

• Winbond 83627DHG chip
Clock Generator

• CK505
Expansion Slots
PCI-Express • 1 (x16) PCI-Express Slot
• 1 (x4) PCI-Express (in x8 slot)
PCI • 2x 32-bit 33MHz PCI (5V) slots
Input/Output
Serial ATA • Four Serial ATA ports ( 3Gbps )
• Four SATA hard drives supported
IDE • One EIDE channel supports up to two UDMA IDE devices
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100
LAN • 2x RJ45 LAN port
USB • 8x USB 2.0 / 1.1 compatible
• 2 rear + 2 Type A connector + 2 headers (4 ports)
VGA • Intel GMA950
Keyboard/Mouse • PS/2 keyboard and mouse ports
Serial Port • 1x Fast UART 16550 serial port
• 1x Serial Header
System BIOS
BIOS Type • 8Mb Flash EEPROM with AMI BIOS
BIOS Features












 • Plug and Play (PnP)
• APM 1.2
• DMI 2.3
• PCI 2.2
• ACPI 1.0 / 2.0 / 3.0
• USB Keyboard support
• Hardware BIOS Virus protection
• SMBIOS 2.3
Chassis
Form Factor • Mid-Tower
Model • CSE-731i-300B
Dimension and Weight
Height • 14.25" (362 mm)
Width • 7.25" (184 mm)
Depth • 16.75" (425 mm)
Gross Weight • 17.4 lbs (7.9 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs

• Power LED
• Hard drive activity LED
• Network activity LED
• System Overheat LED
Ports

• 2x Front side USB ports (USB 2.0 ready)
Drive Bays
Internal

• 4x 3.5" tool-less HDD trays
External

• 2x 5.25" external drive bays
• 1x 3.5" external drive bay (OEM option)
System Cooling
Fans • 1x 9cm (rear) PWM fan w/ tool-less design
• 1x 8cm (front) cooling fan (optional)
Power Supply


• 300W AC power supply w/ PFC
AC Voltage

• 100 - 240V, 50-60Hz, 5 Amp
DC Output

• 5V + 12V + 3.3V - 12V < 290W
+5V

• 19 Amp
+5V standby

• 2.0 Amp
+12V

• 11 Amp + 11.5 Amp
-12V

• 0.15 Amp
+3.3V

• 16.0 Amp
Certification

• Bronze Certified
PC Health Monitoring
CPU

• Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V/+5V Standby, VBAT, Memory, Chipset
• CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
FAN

• Total of five 4-pin fan headers
• 5 x fans with tachometer monitoring
• Status monitor for speed control
• Status monitor for on / off control
• Support 3-pin PWM fans (with speed control)
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan conn.
Temperature

• Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Control for 5 x Fan Connectors
• I2C temperature sensing logic
• Thermal Monitor 2 (TM2) Support
• PECI
LED

• CPU / System Overheat LED
• Suspend-state indicator LED
• +5V standby alert LED
Other Features

• Chassis intrusion Detection
• Chassis intrusion Header
• SDDC Support
