Details
|
Product SKU
| |
|---|---|

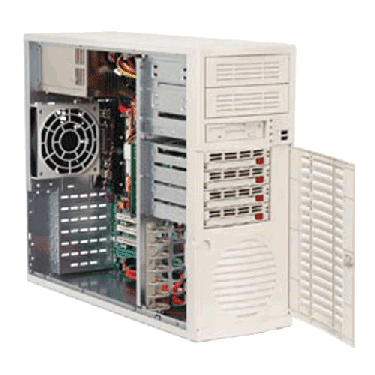

| AS-4710S-T | • A+ Server 4710S-T (Beige) |
| AS-4710S-TB | • A+ Server 4710S-TB (Black) |
|
Motherboard
| |
|---|---|
| • Super H8SSL-R10 | |
| Processor/Chipset
|
|
|---|---|
| CPU | • Single 939-pin ZIF Sockets • Supports one Dual-Core AMD Opteron™ 100 Series processor • 1MB Cache • 4 phase VRM |
| Chipset | • HyperTransport Link • ServerWorks HT1000 I/O Hub |
|
System Memory
| |
|---|---|
| Memory Capacity | • Four 184-pin DIMM sockets • Supports up to 4 GB DDR 400/333 MHz memory or • Single or Dual (recommended) channel memory |
| Memory Type | • DDR 400/333MHz unbuffered ECC SDRAM 72-bit, 184-pin gold-plated DIMMs |
| DIMM Sizes | • 256 MB, 512 MB, 1GB |
| Memory Voltage | • 2.5 V only |
| Error Detection | • Corrects single-bit errors |
|
On-Board Devices
| SATA | • 4 SATA Ports using ServerWorks HT1000 controller • SATA RAID 0, 1, 10 |
IDE | • Supports UDMA Mode 5 • Supports PIO Mode 4 • Supports ATA/100 |
IPMI | • 1U support: Intelligent Platform Management Interface v.2.0+ (Optional: 1UIPMI-B) or • For 2U and above: (Optional: AOC-LPIPMI-LANG) • Remote Management Module (Card not included) |
|---|---|
| Network Controllers | • Broadcom BCM5704C Dual Gigabit Ethernet Controller • Supports 1000BASE-T, RJ45 output |
VGA | • ATI Rage XL 8MB PCI Graphics Controller • VGA Port |
Super I/O | • NS PC87427 |
| Clock Generator |
• ICS932S801AG |
|
Expansion Slots
| PCI-X | • 1 64-bit 133MHz PCI-X (3.3V) slot | PCI | • 2 PCI 32-bit, 33MHz expansion slots |
|---|
|
Input/Output
| SATA | • Up to four SATA devices • SATA RAID 0, 1, 10 |
IDE | • Single ATA 100 EIDE channels support up to two UDMA IDE devices • Supports UDMA Mode 5 • Supports ATA/100 |
Floppy | • 1 Floppy port; 1.44 MB | LAN | • 2 RJ45 LAN ports |
|---|---|
| USB | • 2 USB Rear Ports • 2 USB Internal Headers • USB 2.0 Compliant, 1.1 Compatible |
| Keyboard/Mouse | • PS/2 keyboard and mouse ports |
| Serial Ports |
• 1 Fast UART 16550 serial ports • 1 Header |
|
Chassis
| |
|---|---|
| Form Factor | • Mid-Tower |
| Model | • SC733T-450 |
|
Dimension and Weight
| |
|---|---|
| Height | • 16.8" (427mm) |
| Width | • 7" (178mm) |
| Depth | • 20.9" (531mm) |
| Gross Weight | • 39 lbs (17.7kg) |
| Available Colors | • Beige, Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button |
| LEDs |
• Power LED |
| Ports | • 2x USB Ports (2.0 Ready) |
|
Drive Bays
| |
|---|---|
| Hot-swap | • 4 x 3.5" SATA hot-swap drive bays |
| Peripheral Bay |
• 2x 5.25" Peripheral Drive Bay |
|
Peripheral Drives
| |
|---|---|
| Floppy | • 3.5" 1.44MB Floppy Drive |
|
SATA Backplane
| |
|---|---|
• SATA Hard Drive Backplane |
|
|
System Cooling
| |
|---|---|
| Fans | • 1x 12cm exhaust thermal fan |
|
Power Supply
| |
|---|---|
| 450W low-noise AC power supply with redundant cooling feature (with PFC) | |
| AC Voltage | • 100 - 240V, 50/60Hz, 10 Amp |
| DC Output |
• 5V + 3.3V ≤ 160W • 12V + 5V + 3.3V ≤ 430W |
| +5V | • 30.0 Amp |
| +5V standby | • 2.0 Amp |
| +12V | • 34.0 Amp |
| -12V | • 1.0 Amp |
| +3.3V | • 30.0 Amp |
|
PC Health Monitoring
| |
|---|---|
| CPU | • Monitors CPU Core Voltages, +5V, ±12V, 2.5V Standby, 5V Standby, VBAT |
| FAN | • Total up to five 3-pin fan headers • 5 Fan Status Tachometer monitoring • Status Monitor for Speed Control |
| Temperature | • Monitoring for CPU and chassis environment • CPU Thermal Trip support • I2C temperature sensing logic |
| LED | • CPU / Overheat LED • Suspend-state indicator LED |
| Other Features | • Chassis Intrusion Header |
|
System BIOS
| |
|---|---|
| BIOS Type |
• 4Mb Flash EEPROM with AMI® BIOS |
| BIOS Features | • Plug and Play (PnP) • ACPI 2.0 • PCI 2.2 • DMI 2.3 • BIOS Rescue Hot Keys • SMBIOS 2.3 • USB Legacy support • Hardware BIOS Virus Protection • RTC (Real Time Clock) Wakeup |
