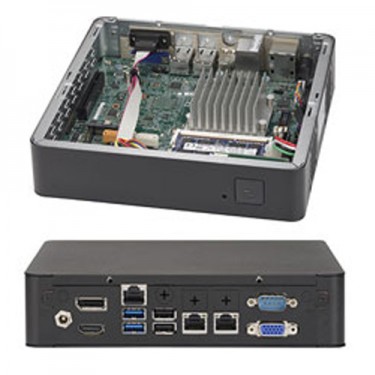

Supermicro IOT Solution SuperServer SYS-E200-9AP

More Views

  • Supermicro IOT Solution SuperServer SYS-E200-9AP

Supermicro IOT Solution SuperServer SYS-E200-9AP

Call for price.
SKU:SYS-E200-9AP

Quick Overview:

Key Features:
• IOT Gateway Solution
• Intel® Atom processor E3940
• System-on-Chip
• 1x 2.5" internal drive bay
• 1x 4cm high performance PWM fan
• 60W DC power adapter


Details

Supermicro SuperServer SYS-E200-9AP

Product SKU
SYS-E200-9AP • SuperServer E200-9AP (Black)
Motherboard
  • Super A2SAV-L
Processor/Cache
CPU • Intel® Atom® Processor E3940, 4 Core, 64-bit, 14nm
• FCBGA 1296
• System-on-Chip
System Memory
Memory Capacity • 1x 204-pin DDR3 SO-DIMM socket
Memory Type

• 1866/1600/1333MHz Unbuffered non-ECC SO-DIMM DDR3, 204-pin gold-plated DIMMs
DIMM Sizes

• 8GB, 4GB, 2GB
Memory Voltage

• 1.5 V, 1.35 V
On-Board Devices
SATA • SoC controller for 2 SATA3 (6Gbps)
Network Controllers • Dual GbE LAN with Intel i210IT controller
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Video • Intel HD Graphics
Input/Output
SATA • 2 SATA3 (6Gbps) ports
LAN • 2 RJ45 Gigabit Ethernet LAN ports
USB • 2 USB 3.0 (rear)
• 2 USB 2.0 (rear)
COM Port • 3 COM ports (1 rear, 2 headers) 1 in RJ45, 1 in RS232, and 1 in RS485
DOM • 1 SATA DOM (Disk on Module) power connector
Video


















 •1 VGA, 1 DP (Display Port), 1 HDMI, 1 Intel HD Graphics
Chassis
Form Factor • Mini-ITX
Model • CSE-101S
Dimension and Weight
Width • 7.68" (195mm) / 15" (381mm) - pkg.
Height • 1.75" (44.5mm) / 10.87" (276mm) - pkg.
Depth • 7.68" (195mm) / 5.59" (142mm) - pkg.
Gross Weight • 7.5 lbs (3.4 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
LEDs

• Power LED (Hard drive activity LED)
Expansion Slots
PCI-Express

• M.2 PCIe 2.0 x2, M Key 2242/2280
Drive Bays
Internal

• 1x 2.5" internal drive tray
System Cooling
Fans

• 1x 4cm high performance PWM fan; support up to 2 chassis fans
Power Supply
  • 60W DC Power Adapter
System BIOS
BIOS Type • 64Mb SPI Flash EEPROM with AMI UEFI BIOS
BIOS Features • Plug and Play (PnP)
• DMI 2.3
• ACPI 5.0
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI
Management
Software

• SuperDoctor® 5
• Watch Dog

Power
Configuration

• ACPI Power Management
• ATX Power connector
• Control of power-on for recovery from AC power loss
• CPU thermal trip support for processor protection
Fan

• Fans with tachometer status monitoring
• Status monitor for speed control
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors
Operating Environment/Compliance
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
