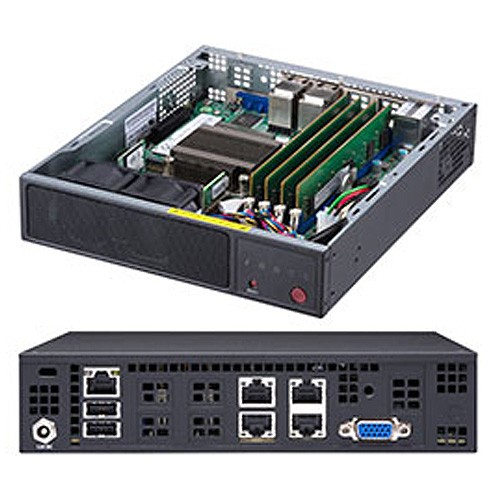

Supermicro IOT Gateway SuperServer SYS-E200-9A - Angle

More Views

Supermicro IOT Gateway SuperServer SYS-E200-9A

Description

Details

Supermicro SuperServer E200-9A

Product SKU
SYS-E200-9A	• SuperServer E200-9A (Black)

Motherboard
	• Super A2SDi-4C-HLN4F

Processor/Cache
CPU	• Intel® Atom® processor C3558 • FCBGA 1310 • CPU TDP support 16W

System Memory
Memory Capacity	• 4x DDR4 DIMM sockets • Supports up to 256GB DDR4 ECC RDIMM • Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type	• 2400/2133/1866MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes	• 32GB, 16GB, 8GB, 4GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• System on Chip
SATA	• SoC controller for 8 SATA3 (6Gbps) ports
Network Controllers	• Quad Gigabit Ethernet LAN via Intel® C3000 SoC • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1 Realtek RTL8201N PHY (dedicated IPMI)
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	• Aspeed AST2400

Input/Output
SATA	• 1 SATA3 (6Gbps) port
LAN	• 4 RJ45 Gigabit Ethernet LAN ports • 1 RJ45 Dedicated IPMI LAN port
USB	• 2 USB 2.0 ports (rear)
Display	• 1 VGA port
DOM	• 1 SuperDOM (Disk on Module) power connector
TPM	• TPM 2.0 header

Chassis
Form Factor	• Mini-1U
Model	• CSE-101F

Dimension and Weight
Width	• 7.6" (193mm) / 15" (381mm) - pkg.
Height	• 1.7" (43mm) / 10.87" (276mm) - pkg.
Depth	• 8.9" (226mm) / 5.59" (142mm) - pkg.
Gross Weight	• 6.5 lbs (2.95 kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button
LEDs	• Power LED (Hard drive activity LED)

Expansion Slots
M.2	• Interface: PCI-E 3.0 x2 or SATA3 • Form Factor: M Key 2242/2280

Drive Bays
Internal	• 2.5" fixed SSD bay with bracket (Design for 9.5mm thickness drive with Low Profile Memory)

System Cooling
Fans	• 2x 40mm chassis fans

Power Supply
	• 60W lockable power adapter

System BIOS
BIOS Type	• 128Mb SPI Flash with AMI BIOS
BIOS Features	• PCI 3.0 • ACPI 5.0 • USB Keyboard support • Hardware BIOS Virus protection • SMBIOS 2.8 • UEFI 2.4 • RTC (Real Time Clock) Wakeup

Management
Software	• IPMI 2.0 • KVM with dedicated LAN • NMI • SuperDoctor® 5 • Watch Dog
Power Configuration	• ACPI / APM Power Management • CPU Fan auto-off in sleep mode • Power-on mode for AC power recovery
Fan	• Fans with tachometer status monitoring • Status monitor for speed control • Status monitor for speed control Low noise fan speed control • Pulse Width Modulated (PWM) fan connectors

Operating Environment/Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 0°C to 40°C (32°F to 104°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
