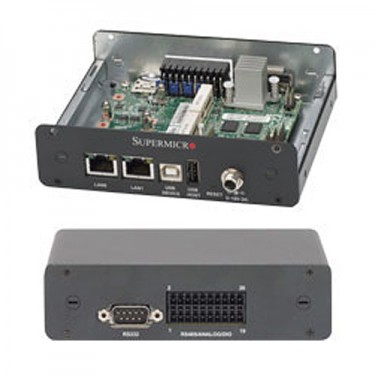

Supermicro SuperServer SYS-E100-8Q
|
Product SKU
| |
|---|---|
| SYS-E100-8Q | • SuperServer E100-8Q (Black) |
|
Motherboard
| |
|---|---|
| • Super A1SQN | |
| Processor/Cache
|
|
|---|---|
| CPU | • Intel® Quark™ SoC X1021 (CPU TDP support 2.2W) • Single Socket FCBGA393 |
|
System Memory
| |
|---|---|
| Memory Capacity | • 512MB of Onboard ECC DDR3 800MHz memory |
| Memory Voltage | • 1.5 V |
|
On-Board Devices
| Chipset | • Intel® Quark™ SoC (System on Chip) X1021 |
|---|---|
| USB | • Intel® Quark™ SoC X1021 |
|
Input/Output
| Internal Storage | • Micro SDHC up to 32GB slot | LAN | • 2x 10/100Mbps RJ45 Gigabit Ethernet LAN ports | USB | • 2x USB 2.0 ports (1 Device & 1 Host) |
|---|---|
| Serial Port/Headers |
• 1x RS-232 via DB9, 1x RS485 via screw terminal interface |
|
Chassis
| |
|---|---|
| Form Factor | • E100 Compact Box PC |
| Model | • CSE-E100-015E |
|
Dimension and Weight
| |
|---|---|
| Width | • 5.3" (135mm) |
| Height | • 1.4" (36mm) |
| Depth | • 4.3" (109mm) |
| Gross Weight | • 3 lbs (1.4 kg) |
| Available Colors | • Black |
|
Expansion Slots
| |
|---|---|
| PCI-E |
• 2x Mini-PCIe |
|
Drive Bays
| |
|---|---|
| Internal |
• Micro SDHC up to 32GB slot |
|
Power
| |
|---|---|
• 12V DC input |
|
|
System BIOS
| |
|---|---|
| BSP | • 8MB SPI Flash EEPROM Board Support Package |
|
Operating Environment
| |
|---|---|
| RoHS |
• RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
0°C ~ 50°C (32°F ~ 122°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
