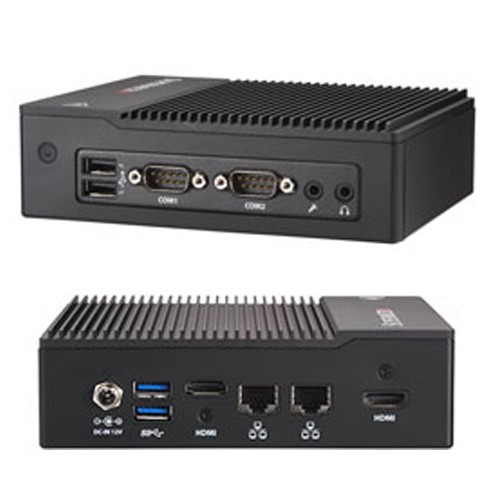

Supermicro IoT Box PC SuperServer SYS-E50-9AP

More Views

  • Supermicro IoT Box PC SuperServer SYS-E50-9AP

Supermicro IoT Box PC SuperServer SYS-E50-9AP

Call for price.
SKU:SYS-E50-9AP

Quick Overview:

Key Features:
• IoT Gateway
• Intel® Atom® processor E3940
• System on Chip
• M.2 B-Key 2242/3042 for SATA SSD
• Up to 8GB of memory
• Fanless design
• Lockable 12V DC 40W power adapter


Details

Supermicro SuperServer E50-9AP

Product SKU
SYS-E50-9AP • SuperServer E50-9AP (Black)
Motherboard
  • Super A2SAP-H
Processor/Cache
CPU • Intel® Atom® processor E3940
• Single socket FCBGA 1296
• 9.5W, 4C
System Memory
Memory Capacity • Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3L-1866MHz, in 1 DIMM socket
Memory Type

• DDR3L up to 1866MHz
DIMM Sizes

• 8GB, 4GB
Memory Voltage

• 1.35 V
On-Board Devices
Chipset • System on Chip
Network Controllers • Dual LAN with Intel® Ethernet Controller I210-IT
Audio • ALC 888S HD Audio
Graphics

• Intel® HD Graphics
• HDMI (max. resolution up to 3840 x 2160 @ 30Hz)
Input/Output
LAN • 2 RJ45 Gigabit Ethernet LAN ports
USB • 2 USB 3.0 ports (rear)
• 2 USB 2.0 ports
Video • 2 HDMI ports
COM • 2 COM (RS-232/422/485)
TPM














 • 1 TPM 2.0 onboard
Chassis
Form Factor • Proprietary
Model • CSE-E50
Dimension and Weight
Width • 5.82" (148mm)
Height • 1.72" (44mm)
Depth • 4.64" (118mm)
Net Weight • 3.00
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
LEDs

• Power LED (Hard drive activity LED)
Expansion Slots
PCI-Express

• 1 Full size Mini-PCIe
• 1 Half size Mini-PCIe
M.2

• 1 M.2 B-Key 2242/3042 for storage
• 1 M.2 E-Key 2230 for communication module
Drive Bays/Storage
Internal

• 1 SATA 3.0 for 7mm 2.5" SATA SSD OR 1 M.2 B-Key 2242/3042 for SATA SSD
System Cooling
Fans

• Fanless design
Power Supply
  • 40W lockable 12V DC power adapter
System BIOS
BIOS Type • AMI UEFI
Management
Software

• SuperDoctor® 5
• Watch Dog

Power Configuration

• +12V DC Power Input
• ACPI Power Management
• Control of power-on for recovery from AC power loss
• Force Power On by Jumper
Operating Environment/Compliance
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: -20°C to 50°C (-4°F to 122°F) with M.2 SATA SSD 0°C to 40°C (32°F to 104°F) with HDD
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
