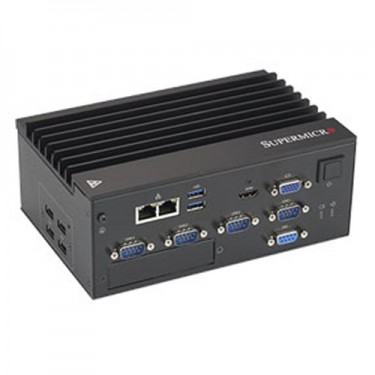

Supermicro IoT Box PC SuperServer SYS-E100-9AP-IA

More Views

  • Supermicro IoT Box PC SuperServer SYS-E100-9AP-IA

Supermicro IoT Box PC SuperServer SYS-E100-9AP-IA

Call for price.
SKU:SYS-E100-9AP-IA

Quick Overview:

Key Features:
• Intel® Atom® Processor E3940
• Single Socket FCBGA 1296
• Up to 8GB of memory
• 1 M.2 2280 B-Key for SATA
• Fanless design
• 12V DC 60W power adapter


Details

Supermicro SuperServer E100-9AP-IA

Product SKU
SYS-E100-9AP-IA • SuperServer E100-9AP-IA (Black)
Motherboard
  • Super A2SAN-E
Processor/Cache
CPU • Intel® Atom® Processor E3940
• FCBGA 1296
• System-on-Chip
• CPU TDP support 9W
System Memory
Memory Capacity • 1x 204-pin DDR3L SO-DIMM socket
Memory Type

• 1866/1600/1333MHz Unbuffered non-ECC SO-DIMM DDR3L, 204-pin gold-plated DIMMs
DIMM Sizes

• 8GB, 4GB, 2GB
Memory Voltage

• 1.35 V
On-Board Devices
SATA • SoC controller for 1 SATA3 (6Gbps)
Network Controllers • Dual GbE LAN with Intel i210-AT controller
Input/Output
LAN • 2 RJ45 Gigabit Ethernet LAN ports
USB • 2 USB 3.0 (front)
• 4 USB 2.0 (side)
COM Port • 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control
• 1 DIO via DB9
Videos

























 • 1 VGA, 1 HDMI
Chassis
Form Factor • 3.5" SBC
Model • CSE-E101-IA
Dimension and Weight
Width • 7.64" (194mm) / 9.5" (241mm) - pkg.
Height • 3.15" (80mm) / 5.5" (140mm) - pkg.
Depth • 4.96" (126mm) / 8" (203mm) - pkg.
Net Weight • 3.31 lbs (1.5 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
LEDs

• Power LED and Hard drive activity LED
Expansion Slots
PCI-Express

• 1 Full size Mini-PCIe (USB 2.0/PCIe)
• 1 M.2 2280 B-Key for SATA or PCIe SSD (2242 can be supported with bracket)
Drive Bays
Internal

• 1 SATA SSD (SATA3)
System Cooling
Fans

• Fan-less design
Power Supply
  • 12V DC 60W power adapter with Terminal Block
System Bios
BIOS Type • 64Mb SPI Flash EEPROM with AMI UEFI BIOS
BIOS Features • Plug and Play (PnP)
• DMI 2.3
• ACPI 5.0
• Plug and Play (PnP) DMI 2.3 ACPI 5.0 USB Keyboard support
• SMBIOS 2.7.1
• UEFI
Management
Software

• SuperDoctor® 5
• Watch Dog
Power
Configuration

• ACPI Power Management
• ATX Power connector
• Control of power-on for recovery from AC power loss
• CPU thermal trip support for processor protection
Operating Environment/Compliance
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: -20°C to 60°C (-4°F to 140°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
Operational
Vibration		 • IEC 60068-2-64, 5 Grms, randon, 5-500 Hz, 1hr/axis
Operational Shock • IEC 60068-2-27, 30G, half sine, 11ms
