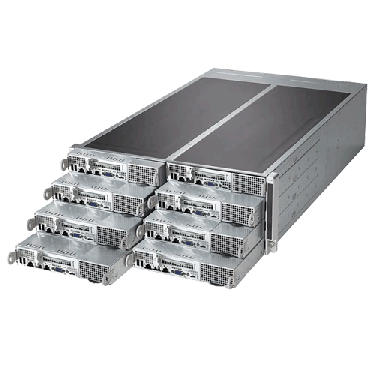

Supermicro FatTwin SuperServer SYS-F618R3-FTL - Angle

More Views

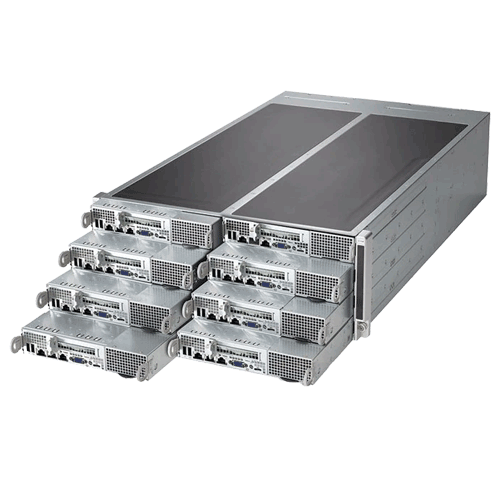

  • Supermicro FatTwin SuperServer SYS-F618R3-FTL - Angle

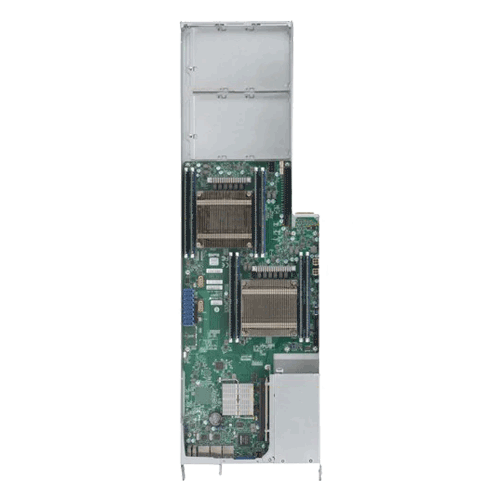

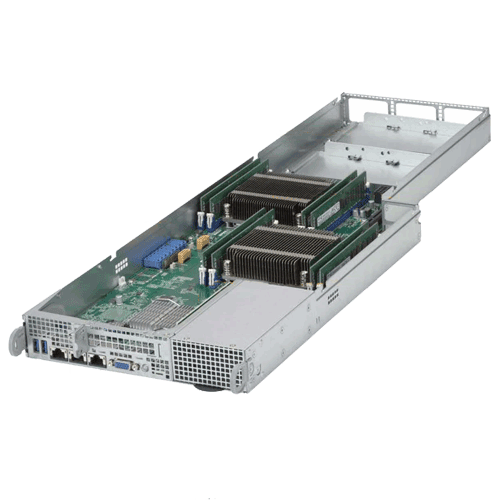

  • Supermicro FatTwin SuperServer SYS-F618R3-FTL - Node
  • Supermicro FatTwin SuperServer SYS-F618R3-FTL - Top

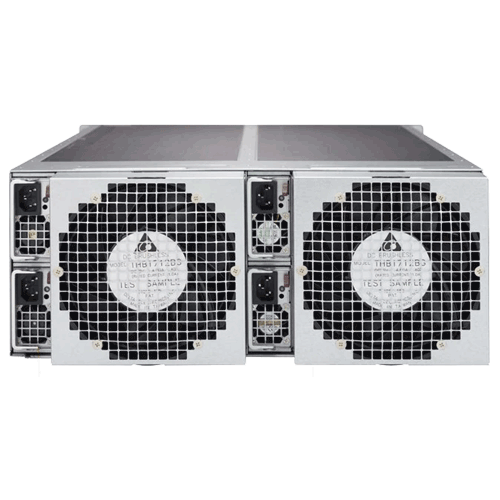

  • Supermicro FatTwin SuperServer SYS-F618R3-FTL - Rear

Supermicro FatTwin SuperServer SYS-F618R3-FTL

Call for price.
SKU:SYS-F618R3-FTL

Quick Overview:

Key Features:
• 8 Hot-plug System Nodes in 4U
• Supports Intel® Xeon® processor E5-2600 v4†/ v3
• Up to 1TB of memory
• 2x 3.5" Fixed SATA HDD trays
• 2x 17cm Rear fans
• 1620W Redundant Power Supplies Platinum Level (94%)

Details

Supermicro FatTwin SuperServer SYS-F618R3-FTL

Product SKU
SYS-F618R3-FTL • SuperServer F618R3-FTL (Black)
Motherboard
  • Super X10DRFF
Processor/Cache
CPU • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
• Dual Socket R3 (LGA 2011)
Cores/Cache • Up to 22 Cores† / Up to 55MB† Cache
System Bus • QPI up to 9.6 GT/s
Note † BIOS version 2.0 or above is required
  * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity • 8x 288-pin DDR4 DIMM slots
• Up to 1TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type

• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes

• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB
Memory Voltage

• 1.2 V
Error Detection

• Corrects single-bit errors
On-Board Devices
Chipset • Intel® C612 chipset
SATA • SATA3 (6Gbps) with RAID 0, 1
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC
Network Controllers • Dual Intel® i210 Single Port Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8211E PHY (dedicated IPMI)
Graphics

• ASPEED AST2400 BMC
Input/Output (per node)
SATA • 2x SATA3 (6Gbps) ports
LAN • 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 2x USB 3.0 ports
VGA






 • 1x VGA port
Chassis
Form Factor • 4U Rackmount
Model • CSE-F418IL-R1K62BP
Dimension and Weight
Width • 17.63" (448mm)
Height • 6.96" (177mm)
Depth • 29" (737mm)
Gross Weight • 200 lbs (90.71 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• UID button
LEDs

• Power status LED
• 2x Network activity LEDs
Expansion Slots (per node)
PCI-Express

• 1x PCI-E 3.0 x16 Low-profile via riser card
Drive Bays (per node)
Fixed

• 2x 3.5" Fixed SATA HDD trays
System Cooling
Fans

• 2x 17cm Rear fans
Power Supply
  1620W high-efficiency redundant power supply w/ PMBus
AC Input • 1000W Output @ 100-120V, 12-10A, 50-60Hz
• 60Hz 1200W Output @ 120-140V, 12-10A, 50-60Hz
• 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output
 • 1000W: +12V/84A; +5Vsb/4A
• 1200W: +12V/100A; +5Vsb/4A
• 1620W: +12V/150A; +5Vsb/4A
Certification • Platinum Certified
System BIOS
BIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features

• 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features Plug and Play (PnP)
• APM 1.2
• PCI 2.3
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI 2.3.1
Operating Environment/Compliance
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
