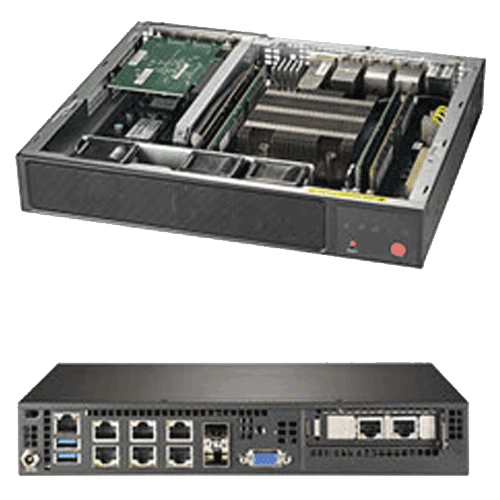

Supermicro Embedded / IOT SuperServer SYS-E300-9D - Angle

More Views

Supermicro Embedded / IOT SuperServer SYS-E300-9D

$0.00

SKU:SYS-E300-9D

Quick Overview:

Key Features:
• Intel® Xeon® processor D-2123IT
• System on Chip
• 1 Internal 2.5" drive bay
• Up to 512GB of memory
• 3x 40x28mm 4-PIN PWM Fan
• 120W Lockable DC Power Adapter

Description

Details

Supermicro Embedded / IOT SuperServer SYS-E300-9D

Product SKU
SYS-E300-9D	• SuperServer E300-9D (Black)

Motherboard
	• Super X11SDV-4C-TLN2F

Processor/Cache
CPU	• Intel® Xeon® processor D-2123IT, CPU TDP support 60W
Cores/Cache	• 4 Cores, 8 Threads

System Memory
Memory Capacity	• Up to 512GB DDR4 ECC LRDIMM • Up to 256GB DDR4 ECC/non-ECC RDIMM • 4 DIMM slots
Memory Type	• 2666/2400/2133MHz ECC DDR4 ECC LRDIMM and ECC/Non-ECC RDIMM • Operating speed up to 2400MHz
DIMM Sizes	• RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB • LRDIMM: 16GB, 32GB, 64GB, 128GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• System on Chip
SATA	• SoC controller for 4 SATA3 (6Gbps) ports; RAID 0,1,5,10 RSTe
Network Controllers	• Dual 10GBase-T LAN, SoC
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	• Aspeed AST2500 BMC

Input/Output
SATA	• 1 SATA3 (6Gbps) port (SATA/SAS HDD/SSD)
LAN	• 2 10GBase-T LAN ports • 1 Dedicated IPMI LAN port
USB	• 2 USB 3.0 ports (rear)
Display	• 1 VGA port
TPM	• 1 TPM 2.0 header

Chassis
Form Factor	• Compact
Model	• CSE-E300

Dimension and Weight
Width	• 10" (254mm) / 15" (381mm) - pkg.
Height	• 1.7" (43mm) / 10.87" (276mm) - pkg.
Depth	• 8.9" (226mm) / 5.59" (142mm) - pkg.
Gross Weight	• 7.5 lbs (3.4 kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button
LEDs	• Power LED (Hard drive activity LED)

Expansion Slots
PCI-Express	• 1 onboard OCuLink port (or 1 PCI-E 3.0 x4 NVMe) • 1 PCI-E 3.0 x8 (LP) open slot

Drive Bays
Internal	• 1 Internal 2.5" drive bay

System Cooling
Fans	• 3x 40x28mm 4-PIN PWM Fan

Power Supply
	120W Lockable DC Power Adapter with PFC, 150W Lockable DC power Adapter with PFC (optional), adapter cannot be put in rackmount kit

System BIOS
BIOS Type	• 128Mb SPI Flash with AMI BIOS
BIOS Features	• PCI 3.0 • ACPI 5.0 • USB Keyboard support • Hardware BIOS Virus protection • SMBIOS 2.8 • UEFI 2.4 • RTC (Real Time Clock) Wakeup

Management
Software	• Intel® Node Manager • IPMI 2.0 • KVM with dedicated LAN • NMI • SUM • SuperDoctor® 5 • Watch Dog
Power Configuration	• ACPI Power Management • +12V DC Power Input • Control of power-on for recovery from AC power loss • CPU thermal trip support for processor protection • M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL
Fan	• Fans with tachometer status monitoring • Status monitor for speed control • Low noise fan speed control • Pulse Width Modulated (PWM) fan connectors

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 0°C to 40°C (32°F to 104°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
