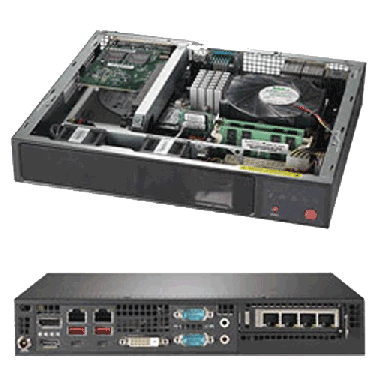

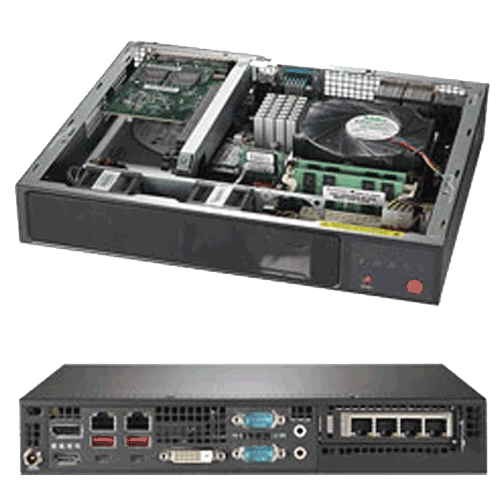

  • Supermicro Embedded / IOT SuperServer SYS-E300-9C - Angle

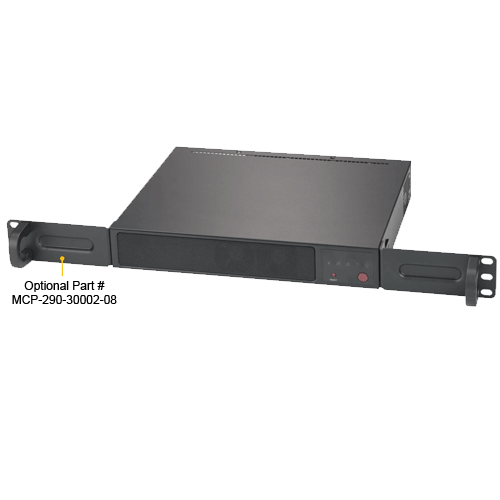

  • Supermicro Embedded / IOT SuperServer SYS-E300-9C - option

Supermicro Embedded / IOT SuperServer SYS-E300-9C

$0.00
SKU:SYS-E300-9C

Quick Overview:

Key Features:
• Single Socket H4 (LGA 1151)
• 8th Gen. Intel® Core™ i7/i5/i3, Pentium®, Celeron® processor
• Up to 32GB of memory
• 2 Internal 2.5" drive bays
• 2x 4cm high performance PWM fans
• DC Power Adapter

Details

Supermicro Embedded / IOT SuperServer SYS-E300-9C

Product SKU
SYS-E300-9C • SuperServer E300-9C (Black)
Motherboard
  • Super X11SCV-Q
Processor/Cache
CPU • Single Socket H4 (LGA 1151) supports
• 8th Generation Intel® Core™ i7/i5/i3 / Pentium® / Celeron® processor
• CPU TDP support Up to 65W TDP
System Memory
Memory Capacity • Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-2666MHz
• 2 DIMM slots
Memory Type

• DDR4-2666MHz Unbuffered non-ECC SO-DIMM
DIMM Sizes

• 16GB
Memory Voltage

• 1.2 V
Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset • Intel® Q370
SATA • Q370 controller for 5 SATA3 ports; RAID 0, 1
Network Controllers • Single LAN with Intel® Ethernet Controller I210-AT
• Single LAN with Intel® PHY I219LM LAN controller
Audio

• ALC 888S HD Audio
Graphics

• 3 Independent Displays
Input/Output (per node)
SATA • 5 SATA3 (6Gbps) ports via PCH
LAN • 2 RJ45 Gigabit Ethernet LAN ports
USB • 4 USB 3.1 (2 type A and 2 type C in rear)
Display • 1 DVI - D port
• 1 HDMI port
• 1 DP (Display Port)
• 1 eDP (Embedded Display Port)
• 3 Independent Displays
Audio • HD Audio (Mic In / Line Out)
Graphics • 1 TPM Header & Chip
Chassis
Form Factor • Compact
Model • CSE-E300
Dimension and Weight
Width • 10" (254mm) / 15" (381mm) - pkg.
Height • 1.7" (43mm) / 10.87" (276mm) - pkg.
Depth • 8.9" (226mm) / 5.59" (142mm) - pkg.
Gross Weight • 7.5 lbs (3.4 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
LEDs

• Power LED (Hard drive activity LED)
Expansion Slots
PCI-Express

• 1 PCI-E 3.0 x16
M.2

• M.2 M key: PCI-E 3.0 x4, NVMe support 2242/2280 length
• M.2 E Key: PCI-E 3.0 x1, support 2230 length
Drive Bays
Internal

• 2 Fixed 2.5" drive bays - one with bracket, one on base mount (1 fixed 2.5" drive bay when AOC area is occupied)
System Cooling
Fans

• 2x 4cm high performance PWM fan
Power Supply
  • 150W DC Power Adapter
System BIOS
BIOS Type

• AMI UEFI
BIOS Features

• ACPI 6.0
Management
Software

• AMT
• NMI
• vPro
• Watch Dog
Power Configuration

• ATX Power connector
• +12V DC Power Input
Fan

• Fans with tachometer status monitoring
