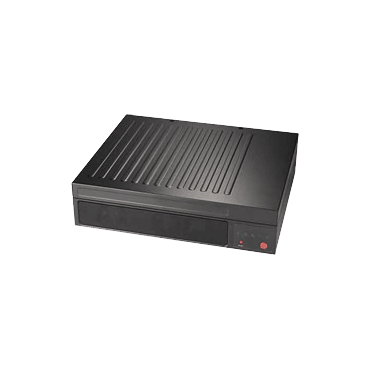

Supermicro Compact Box AMD EPYC Embedded Server AS -E301-9D-8CN4
|
Product SKU
| |
|---|---|
| AS -E301-9D-8CN4 | • A+ Server E301-9D-8CN4 (Black) |
|
Motherboard
| |
|---|---|
| • Super M11SDV-8C-LN4F | |
| Processor/Chipset
|
|
|---|---|
| CPU | • Single AMD EPYC™ 3251 SoC Processor |
| Cores | • 8 Core/16 Thread |
|
System Memory
| |
|---|---|
| Memory Capacity | • 4 DIMM slots • Supports up to 512GB Registered RCC DDR4 2666MHz SDRAM in 4 DIMMs • 4-channel memory bus |
| Memory Type | • DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs |
| DIMM Sizes | • 8GB, 16GB, 32GB, 64GB, 128GB |
| Memory Voltage | • 1.2 V |
| Error Detection | • Corrects single-bit errors |
|
On-Board Devices
| Chipset | • System on Chip | SATA | • SATA3 (6Gbps) ports via SoC controller | Network Controllers | • Quad 1GbE with Intel I350-AM4 | IPMI | • Support for Intelligent Platform • Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
|---|---|
| Graphics |
• Aspeed AST2500 BMC |
|
Input/Output
| SATA | • SoC controller for 4 SATA3 (6Gbps) ports | LAN | • 4x 1GbE LAN ports • 1 Dedicated IPMI LAN port |
|---|---|
| USB | • 2 USB 3.0 ports (rear) |
| Display | • 1 VGA port |
| TPM | • 1 TPM 2.0 header |
|
Chassis
| |
|---|---|
| Form Factor | • 1.5U Compact Box |
| Model | • CSE-E301 |
|
Dimension and Weight
| |
|---|---|
| Width | • 10" (254mm) / 15" (381mm) - pkg. |
| Height | • 2.6" (66mm) / 10.87" (276mm) - pkg. |
| Depth | • 8.9" (226mm) / 5.59" (142mm) - pkg. |
| Gross Weight | • 6.8 lbs (3.08 kg) |
| Available Colors | • Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button |
| LEDs |
• Power LED (Hard drive activity LED) |
|
Expansion Slots
| |
|---|---|
| PCI-Express | • 1 PCI-E 3.0 x16 AOC slot (LP) |
|
Drive Bays
| |
|---|---|
| HInternal | • 2 Fixed 2.5" drive bay bracket, supporting 15mm 2.5" Enterprise drive |
|
System Cooling
| |
|---|---|
| Fans | • 2x 40x28mm 4-PIN PWM Fans (FAN-0065L4, 13K RPM) |
|
Power Supply
| |
|---|---|
| Lockable 12V DC 150W power adapter | |
|
System BIOS
| |
|---|---|
| BIOS Type |
• AMI 64Mb Flash EEPROM |
| BIOS Features | • Plug and Play (PnP) |
|
Operating Environment / Compliance
| |
|---|---|
| RoHS |
• RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
0°C to 40°C (32°F to 104°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
