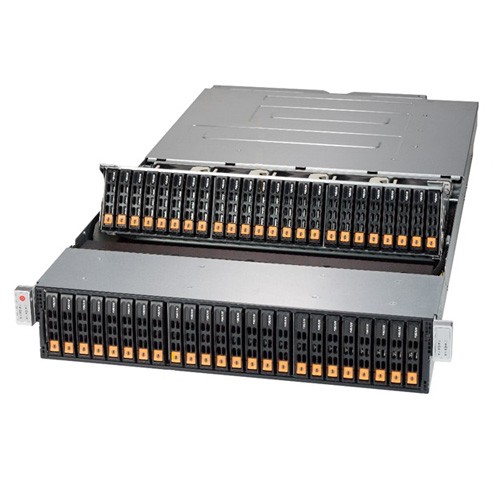

  • Supermicro Bridge Bay SuperStorage SBB SSG-2028R-DN2R48L - Angle
  • Supermicro Bridge Bay SuperStorage SBB SSG-2028R-DN2R48L - Top
  • Supermicro Bridge Bay SuperStorage SBB SSG-2028R-DN2R48L - Front

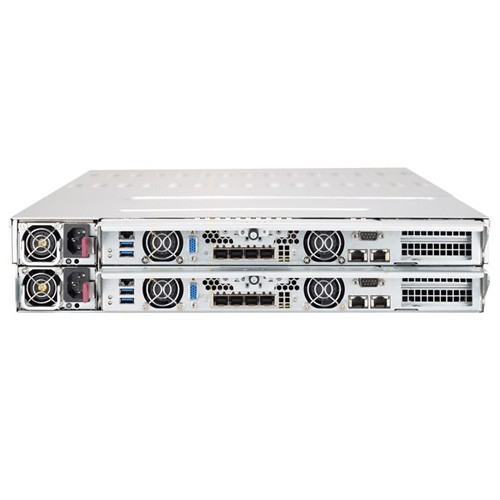

  • Supermicro Bridge Bay SuperStorage SBB SSG-2028R-DN2R48L - Rear

Supermicro Bridge Bay SuperStorage SBB SSG-2028R-DN2R48L (Complete System Only)

Call for price.
SKU:SSG-2028R-DN2R48L

Quick Overview:

Key Features:
• Two hot-pluggable systems (nodes)
• Dual socket R3 (LGA 2011)
• Intel® Xeon® processor E5
• Up to 2TB of memory
• 48 Hot-swap 2.5" dual port NVMe drive bayss
• 5 high-performance 8cm PWM fans
• 2000W Redundant Power Supplies Titanium Level (96%)

Due to the complexity of integration, this product is sold as completely assembled systems only (including but not limited to CPUs, memory, and HDDs). Please contact your Will Jaya sales rep for special requirements.

Details

Supermicro Bridge Bay SuperStorage SBB SSG-2028R-DN2R48L (Complete System Only)

Product SKU
SSG-2028R-DN2R48L • SuperServer 2028R-DN2R48L (Black)
Motherboard
  • Super X10DSN-TS
Processor/Cache
CPU • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
• Dual Socket R3 (LGA 2011)
Cores/Cache • Up to 22 Cores† / Up to 55MB† Cache
System Bus • QPI up to 9.6 GT/s
  † BIOS version 2.0 or above is required
Notes * Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization
System Memory (per Node)
Memory Capacity • 16x 288-pin DDR4 DIMM slots
• Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type

• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes

• RDIMM: 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB

Memory Voltage

• 1.2 V

Error Detection

• Corrects single-bit errors

On-Board Devices (per Node)
Chipset • Intel® C612 chipset
SATA • SATA3 (6Gbps); RAID 0, 1
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC
Network Controllers • Intel® X540 Dual Port 10GBase-T
• 10Gb private ethernet between controller nodes
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)
Video • ASPEED AST2400 BMC
Input/Output (per Node)
SATA • 2 SATA3 (6Gbps) ports
LAN • 2 RJ45 10GBase-T LAN ports
• IPMI LAN shared port
USB • 3 USB 3.0 ports (2 rear, 1 Type A)
Video • 1 VGA port
Serial Port / Header

















• COM port via riser

















Chassis
Form Factor • 2U Rackmount
Model CSE-227STS-R2K05P
Dimension and Weight
Width • 17.2" (437mm)
Height • 3.5" (89mm)
Depth • 33.3" (846mm)
Gross Weight • 86.9 lbs (39.42 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button

LEDs

• Power LED
• Heartbeat LED
• Network activity LEDs
• Power Fail LED
• Overheat/Fan Fail LED

Expansion Slots (per Node)
PCI-Express
(per node)

• 1 PCI-E 3.0 x16 HHHL slot
• 1 PCI-E 3.0 x8 HHHL slot
• 1 SIOM slot

Drive Bays
Hot-swap

• 48 Hot-swap 2.5" dual port NVMe drive bays

System Cooling
Fans

• 5x 8cm high-performance PWM fans

Power Supply
  • 2000W Redundant Power Supplies with PMBus
Total Output Power • 1000W/1800W/1980W/2000W
Dimension
(W x H x L)
• 73.5 x 40 x 265 mm
Input • 100-120Vac / 12.5-9.5A / 50-60Hz
• 200-220Vac / 10-9.5A / 50-60Hz
• 220-230Vac / 10-9.8A / 50-60Hz
• 230-240Vac / 10-9.8A / 50-60Hz
• 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
+12V • Max: 83.3A / Min: 0A (100-120Vac)
• Max: 150A / Min: 0A (200-220Vac)
• Max: 165A / Min: 0A (220-230Vac)
• Max: 166.7A / Min: 0A (230-240Vac)
• Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
12Vsb • Max: 2.1A / Min: 0A
Output Type • 25 Pairs Gold Finger Connector
Certification • Titanium Level
System BIOS
BIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• Plug and Play (PnP)
• PCI 2.3
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI 2.3.1

Operating Environment/Compliance
RoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
