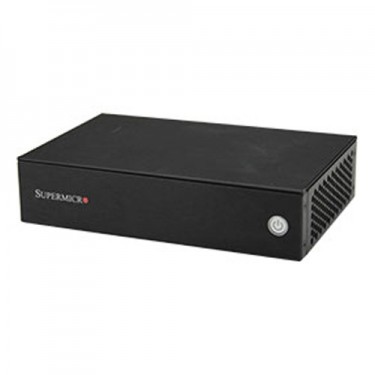

Supermicro Box PC SuperServer SYS-E102-9AP-L

More Views

  • Supermicro Box PC SuperServer SYS-E102-9AP-L

Supermicro Box PC SuperServer SYS-E102-9AP-L

Call for price.
SKU:SYS-E102-9AP-L

Quick Overview:

Key Features:
• Embedded Applications
• Intel® Atom® Processor E3930
• Up to 8GB of memoryX
• 1 M.2 B-Key 2280
• 1x 40mm chassis fans
• Lockable 12V DC 40W power adapter


Details

Supermicro SuperServer E102-9AP-L

Product SKU
SYS-E102-9AP-L • SuperServer E102-9AP-L (Black)
Motherboard
  • Super A2SAN-L
Processor/Cache
CPU • Intel® Atom® Processor E3930
• Single Socket FCBGA 1296 supported
• CPU TDP support 65W
Cores/Cache • 2 cores, 2 threads
System Memory
Memory Capacity • Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3L-1866MHz, in 1 DIMM slot
Memory Type

• DDR3L up to 1866MHz (8GB)
DIMM Sizes

• 8GB, 4GB, 2GB
Memory Voltage

• 1.35V
On-Board Devices
Chipset • System on Chip
Network Controllers • Dual LAN with Intel® I210IT
Audio • ALC 888S HD Audio
Video

• Intel® HD Graphics 620

Input/Output
USB • 2 USB 3.0
• 4 USB 2.0 (optional)
Video Output • 1 VGA port
• 1 HDMI port
COM Port • 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control (optional)
Audio














 • 1 HD Audio header (Mic-in/Line-Out)
Chassis
Form Factor • 3.5" SBC
Model • CSE-E102
Dimension and Weight
Width • 7.48" (190mm)
Height • 1.72" (44mm)
Depth • 4.72" (120mm)
Net Weight • 2.65 lbs (1.2 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
LEDs

• Power LED and Hard drive activity LED
Expansion Slots
PCI-Express

• 1 Full size Mini-PCIe (1 USB 2.0, 1 PCIe Gen2)
M.2

• Interface: SATA, PCIe 2.0 x1 and USB 2.0
• Form Factor: B-Key 2280
Drive Bays
Internal

• 1 M.2 2280 B-Key for SATA or PCIe SSD (2242 can be supported with bracket)
System Cooling
Fans

• 1x 40mm chassis fan
Heat Sink

• Passive CPU heat sink
Power Supply
  • Lockable 12V DC 40W power adapter
System BIOS
BIOS Type • AMI UEFI
Management
Software

• SuperDoctor® 5
• Watch Dog
Power
Configuration

• +12V DC Power Input
• ACPI Power Management
• Control of power-on for recovery from AC power loss
• Force Power On by Jumper
• CPU thermal trip support for processor protection
Operating Environment/Compliance
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
