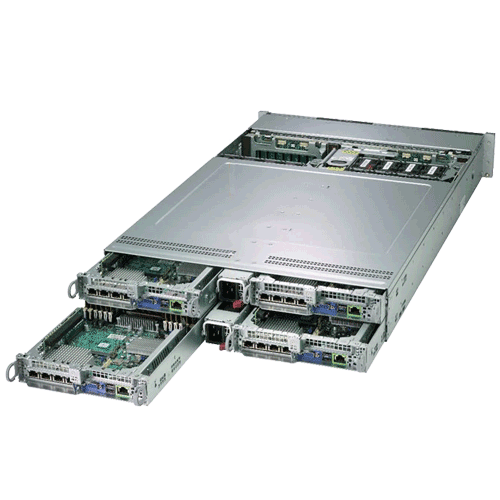

  • Supermicro BigTwin SuperServer SYS-2029BZ-HNR - Angle

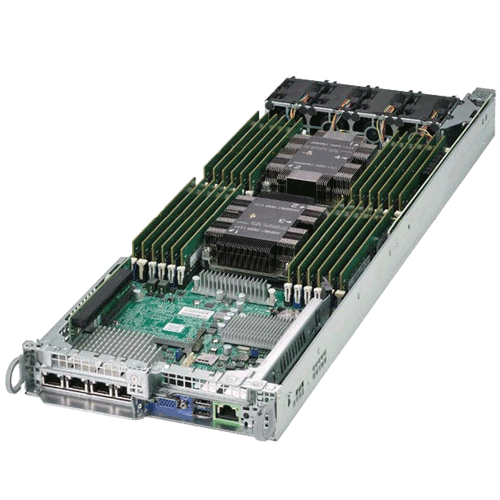

  • Supermicro BigTwin SuperServer SYS-2029BZ-HNR - Node

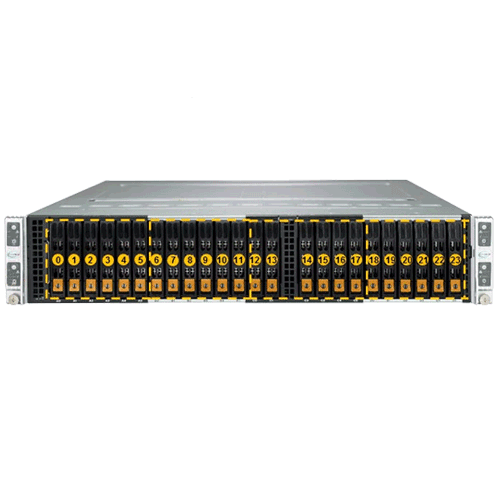

  • Supermicro BigTwin SuperServer SYS-2029BZ-HNR - Front

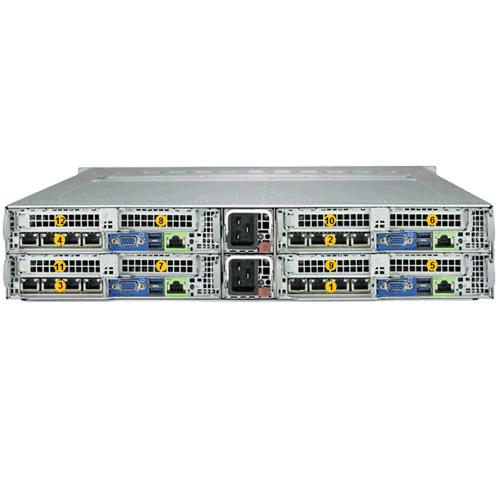

  • Supermicro BigTwin SuperServer SYS-2029BZ-HNR - Rear

Supermicro BigTwin SuperServer SYS-2029BZ-HNR (Complete System Only)

Call for price.
SKU:SYS-2029BZ-HNR

Quick Overview:

Key Features:
• Four hot-pluggable systems (nodes) in a 2U form factor
• Supports Intel® Xeon® Scalable Processors,
• Up to 3TB of memory
• 6 Hot-swap 2.5" NVMe drive bays
• 2 M.2 SATA3 or NVMe support
• 16 Heavy duty 40x56mm fans with optimal fan speed
   control (4 fans per node)
• 2600W Redundant Power Supplies Titanium Level (96%)

Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPUs, 2 DIMMs, 1 NVMe and 1 SIOM card per node). Please contact your Will Jaya sales rep for special requirements.

Details

Supermicro BigTwin SuperServer SYS-2029BZ-HNR (Complete System Only)

Product SKU
SYS-2029BZ-HNR • SuperServer 2029BZ-HNR (Black)
Motherboard
  • Super X11DPT-BH
Processor/Cache
CPU • Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
• Support CPU TDP 70-205W*
Cores • Up to 28 Cores with Intel® HT Technology
Note * 200W/205W CPUs are supported under certain configurations. Please contact Will Jaya Technical Support for additional information about specialized system optimization
System Memory
Memory Capacity • 24 DIMM slots
• Up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type

• 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset • Intel® C621 chipset
Network • Must bundle with at least one SIOM network card
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video

• ASPEED AST2500 BMC
Input/Output (per node)
LAN • 1 RJ45 Dedicated IPMI LAN port
USB • 2 USB 3.0 ports (rear)
Video • 1 VGA port
DOM • 1 SuperDOM (Disk on Module) port
Others • M.2 and SATA DOM for boot drive only
System BIOS
BIOS Type

• AMI 32Mb SPI Flash ROM
Management
Software

• Intel® Node Manager
• IPMI 2.0
• KVM with dedicated LAN
• SSM, SPM, SUM
• SuperDoctor® 5
• SXXXXXWatch Dog
Power Configuration

• ACPI / APM Power Management
PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory
• 4+1 Phase-switching voltage regulator
FAN • Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
Chassis
Form Factor • 2U Rackmount
Model • CSE-217BHQ+-R2K60FP
Dimension and Weight
Height • 3.47" (88mm)
Width • 17.6" (447mm)
Depth • 28.75" (730mm)
Gross Weight • 54.5 lbs (24.7 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• UID button
LEDs

• Power status LED
• HDD activity LED
• Network activity LEDs
• Universal Information (UID) LED
Expansion Slots (per node)
PCI-Express

• 2 PCI-E 3.0 (x16) Low-profile slots
• 1 SIOM card support
Drive Bays/Storage (per node)
Hot-swap

• 6 Hot-swap 2.5" NVMe drive bays
M.2

• 2 M.2 NVMe or SATA (2240/2260/2280) via optional AOC-SMG3-2H8M2-B
System Cooling
Fans

• 16 Heavy duty 40x56mm PWM fans with air shroud (4 fans per node)
Power Supply
  2600W Redundant Power Supplies with PMBus
Total Output Power • 2600W
Dimension
(W x H x L)		 • 45 x 40 x 480 mm
Input • 208-240Vac/15-12.5A / 50-60Hz
• 220-240Vdc/13.5-12.5A (CQC only)
+12V
 • Max: 216.6A / Min: 0A
12Vsb • Max: 4.5A / Min: 0A
Output Type • Gold Finger (4HP+2LP-20S output connector)
Certification • Titanium Level
Operating Environment
RoHS

• RoHS Compliant
Environmental Spec.






 • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
