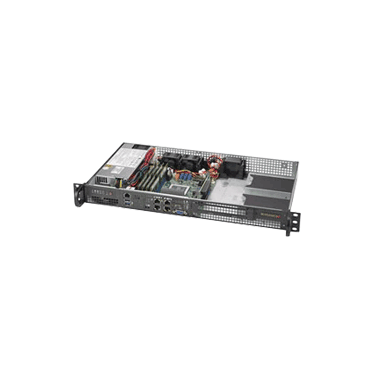

Supermicro A+ AMD EPYC™ EMBEDDED Server AS-5019D-FTN4

More Views

  • Supermicro A+ AMD EPYC™ EMBEDDED Server AS-5019D-FTN4

Supermicro A+ AMD EPYC™ EMBEDDED Server AS-5019D-FTN4

Call for price.
SKU:AS-5019D-FTN4

Quick Overview:

Key Features:
• Network Security Appliance
• Embedded IoT Computing
• Supports AMD EPYC™ 3251 SoC Processor
• Up to 512GB of memory
• Up to 2x 3.5" or 4x 2.5" SATA3 drive bays
• Up to 200W compact power supply


Details

Supermicro A+ AMD EPYC™ EMBEDDED Server AS-5019D-FTN4

Product SKU
AS -5019D-FTN4 • A+ Server 5019D-FTN4 (Black)
Motherboard
  • Super M11SDV-8C-LN4F
Processor/Chipset
CPU • Single AMD EPYC™ 3251 SoC Processor
Cores • 8 Core/16 Thread
System Memory
Memory Capacity • 4x DDR4 DIMM sockets
• Up to 512GB DDR4 ECC LRDIMM
• Up to 256GB DDR4 ECC RDIMM
Memory Type

• DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes

• 128GB, 64GB, 32GB, 16GB, 8GB
Memory Voltage

•1.2 V
Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
SATA • SoC controller for 4 SATA3 (6Gbps) ports
Network Controllers • Quad Gigabit Ethernet LAN via Intel®I350-AM4
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics

• Aspeed AST2500 BMC
Input/Output
SATA • 4 SATA3 (6Gbps) ports
LAN • 4 RJ45 Gigabit Ethernet LAN ports (front)
• 1 RJ45 Dedicated IPMI LAN port (front)
USB • 2 USB 3.0 ports (front)
VGA • 1 VGA Port (front)
Others • TPM header
System BIOS
BIOS Type

• AMI 64Mb Flash EEPROM
BIOS Features







• Plug and Play (PnP)
• DMI 2.3
• ACPI 5.0
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI
Chassis
Form Factor • 1U Rackmount
Model • CSE-505-203B
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 9.8" (249mm)
Gross Weight • 12 lbs (5.44 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs

• Power LED
• Hard drive activity LED
• Network activity LEDs
• System Information LED
• Information LED (temp., status)
Expansion Slots
PCI-E

• 1 PCI-E 3.0 x16 slot
• 1 M.2 PCI-E 3.0 x4, 2280, M Key
Drive Bays
HDD

• Up to 2x 3.5" or 4x 2.5" SATA3 drive bays
System Cooling
Fans

• 2x 40x28mm 4-PIN PWM fans
Power Supply
  200W Low Noise AC-DC power supply with PFC
AC Voltage • 100 - 240V, 50-60Hz, 2.6 Amp Max
+5V
 • 8.0 Amp (max.)
+5V standby • 2.0 Amp (max.)
+12V • 16 Amp (max.)
-12V • 0.5 Amp (max.)
+3.3V • 8.0 Amp (max.)
Certification • 80Plus Gold Certified
Operating Environment / Compliance
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
